STILLA BRIGHTON User Manual

Hide thumbs Also See for BRIGHTON:

Advertisement

Quick Links

Download this manual

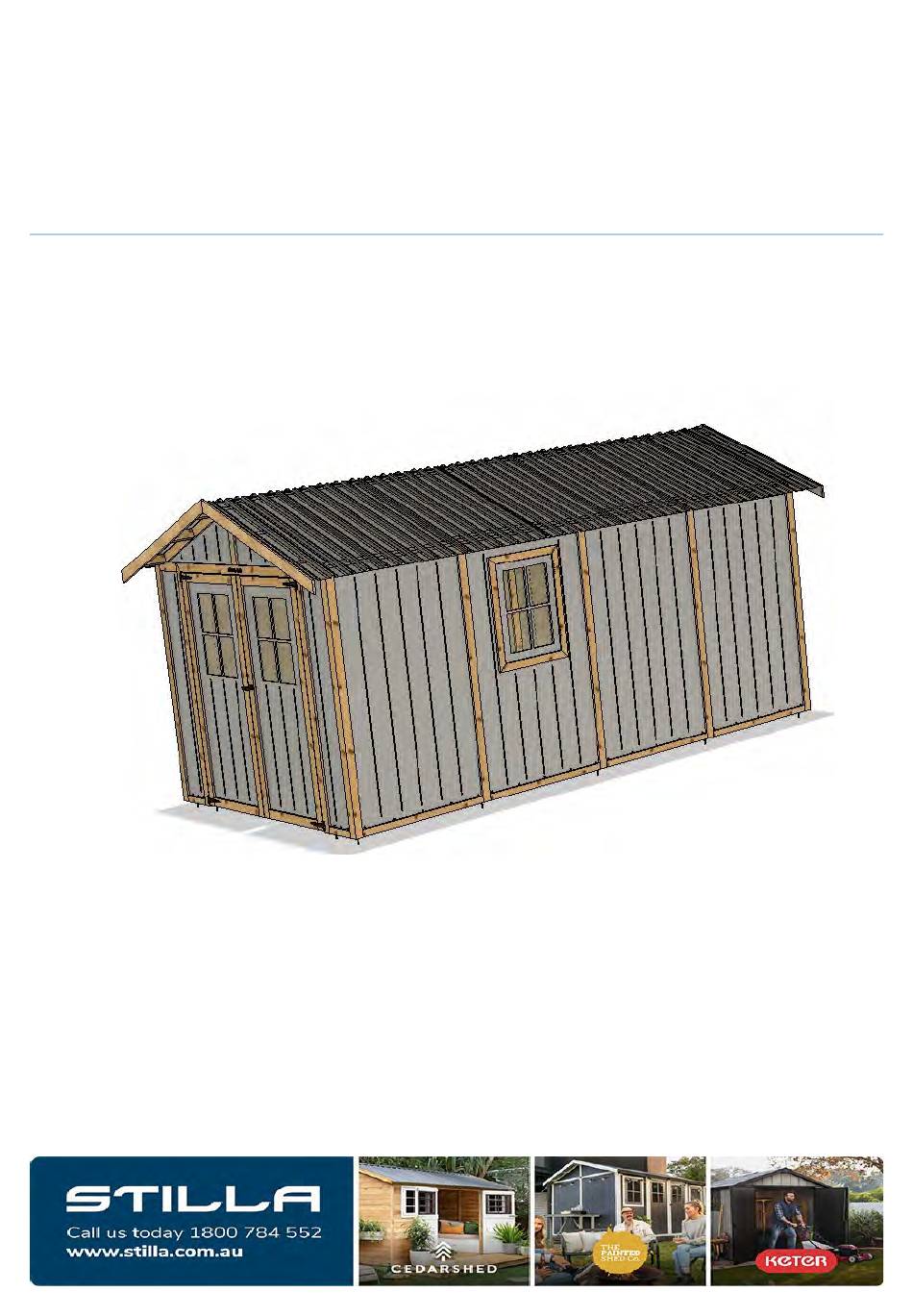

BRIGHTON [8x16]
USER MANUAL
IMPORTANT
Read carefully. Retain for future refence
BRIGHTON [8x16]
v3 [01-2023]

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRIGHTON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STILLA BRIGHTON

Summary of Contents for STILLA BRIGHTON

  • Page 1 BRIGHTON [8x16] USER MANUAL IMPORTANT Read carefully. Retain for future refence BRIGHTON [8x16] v3 [01-2023]...
  • Page 2 & roofing. Please fully unpack all the parts & check against the parts checklist before con- tac ng customer service about anything you believe may be missing or damaged. Thank-you Protect Painted surfaces when laid down for processing. BRIGHTON [8x16] v3 [01-2023]...
  • Page 3 Light coloured crayon/chinagraph pencil white/yellow. Phillips Bit (PH2), Ba en Screw Bit, Phillips Bit #2, 5/16” Hex driver, Drill Bits 3mm & 4mm, Countersink Bit (or Combina- on.) This product requires a minimum of 2 persons to assemble. BRIGHTON [8x16] v3 [01-2023]...
  • Page 4 DG1130 Pine,70mm x 45mm x 1130mm, Double Groove, Plain End DG1217A1 Pine, 70mm x 45mm x 1217mm, Double Groove, Apex Angle top. SG1926A1 Pine 70 x 45 x 1926mm, Single Groove. Miter Top [350] DG1926 Pine 70x45x1926mm, Double Groove Plain ends BRIGHTON [8x16] v3 [01-2023]...
  • Page 5 P1130x1824, Window Panel 1130 x 1824 x 9.5mm, P295x1824, Weathertex Panel x 1824 x 9.5mm, Grooved Grooved 295 x 1824 x 9.5mm, Grooved OPENING WINDOW FRAME [2] [12] BH20 MO/SM, Fix WF Assy to WP1130 Opening WF-Assy, Painted Window frame [assembled] BRIGHTON [8x16] v3 [01-2023]...
  • Page 6 FB189, Painted Block 70 x 45 PS32, BS100, Bugle Ba en Screw Phillips Csk Screw #6 Degree. x 189mm, Facia Spacing Block x 32mm Treated Pine, Fix 100mm Galvanized, Fix F1500 to FB145 . FB140 to Gable. BRIGHTON [8x16] v3 [01-2023]...
  • Page 7 , Door Stop Top, Weathertex 1800 x 83mm plus Hinge Screws [12] 20mm, Flat Bu on Head, DS Fixing to Door (x8) MISCELLANEOUS TU MO/SM, Paint Touchup Sil-MO/SM, Silicone sealant 300ml – coloured Monument / Surfmist 500ml BRIGHTON [8x16] v3 [01-2023]...
  • Page 8 finished shed. PRE-DRILL - 3mm CP1926 [4] DG1926 [6] SG1926A [2] Drill internal webs only DG1130 [1] DG1217A [1] SG1740A2 [1] SG1130A2 [6] DG1130T2 [2] DG295T2 [2] BRIGHTON [8x16] v3 [01-2023]...
  • Page 9 NOTE: Window posi on in shed, will determine Top Plate configura on. If to be on the Back wall [Opposite doors]. DG1130T2 should be fi ed. If to be placed in side walls SG1130T2 is required Back BRIGHTON [8x16] v3 [01-2023]...
  • Page 10 2 x Double Groove Top plate [Side Walls] Overall height of panels should be equal to ver cal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component. BRIGHTON [8x16] v3 [01-2023]...
  • Page 11 Orienta on before fixing Top Plates. FB20 MO/SM Overall height of panels should be equal to ver cal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component. BRIGHTON [8x16] v3 [01-2023]...
  • Page 12 Panel Assy Or WP Assy CP1924 PS32CSK Construct a panel with Corner post on Right Rear face [as per image >] With SG top Rail [for Side wall] BRIGHTON [8x16] v3 [01-2023]...
  • Page 13 Panel Assy + DG Top PS32CSK Panel Assy + SG Top SG Top Plate DG Top Plate BRIGHTON [8x16] v3 [01-2023]...
  • Page 14 DG1130 DG1217A1 PS32CSK Angle cut to TOP FB32CSK [4] BRIGHTON [8x16] v3 [01-2023]...
  • Page 15 Back Wall Construc on Panel Assy [DG Top] CP1924 PS32CSK PS32CSK [4] BRIGHTON [8x16] v3 [01-2023]...
  • Page 16 Side Wall Assembly [14] Panel Assy [SG Top] DG1926 CP1924 PS32CSK PS32CSK [8] PS32CSK [6] REPEAT step 14 for assembly of opposite Side Wall. BRIGHTON [8x16] v3 [01-2023]...
  • Page 17 Door Side Panels Front Panel Assy PS32CSK SG1924A1 PS32CSK Rear panels hidden for clarity BRIGHTON [8x16] v3 [01-2023]...
  • Page 18 PS32CSK Rear of Door opening shown. Some assemblies hidden for clarity. BRIGHTON [8x16] v3 [01-2023]...
  • Page 19 Door Head and Stop [14] SG1740A2 FB20MO/SM DST1800 FB20MO/SM [13] BRIGHTON [8x16] v3 [01-2023]...
  • Page 20 CHECK structure for Square, once confirmed, fit remaining Screws to panels FB20MO/SM x 30 PS32CSK x 177 BRIGHTON [8x16] v3 [01-2023]...
  • Page 21 GABLES—Prepara on SG1299A2 DG451A1 [12] FB189 BS100 PRE-DRILL - 3mm SG1299A2 DG451A2 18mm 18mm BRIGHTON [8x16] v3 [01-2023]...
  • Page 22 GABLE Angle—Addi onal Drilling for Facia Block DRILL 4mm—Through Hole required SG1299A2 [4] DRILL 4mm—Minimum Depth 50mm FB189 [12] BS100 [3] BRIGHTON [8x16] v3 [01-2023]...
  • Page 23 GABLES [2] —Assembly [48] SG1299A2 PS32CSK DG421A2 BRIGHTON [8x16] v3 [01-2023]...
  • Page 24 Check Gable posi on is correct before Fixing in place with screws. PS32CSK BRIGHTON [8x16] v3 [01-2023]...
  • Page 25 GABLE—Door Side BRIGHTON [8x16] v3 [01-2023]...
  • Page 26 BRIGHTON [8x16] v3 [01-2023]...
  • Page 27 ROOF— Half Roof assembly [2] [12] [12] RF1544 RF1125 LP872 [14] CH1800 MO / SM RS1400 MO / SM [140] [70] [28] RS50 MO / SM BS75 RD-AS2 MO / SM BS75 [8] Pre-drilling will prevent spli ng! BRIGHTON [8x16] v3 [01-2023]...
  • Page 28 BS75 [8] BRIGHTON [8x16] v3 [01-2023]...
  • Page 29 BS75 [4] BS75 [4] BS75 [4] BS75 [4] BRIGHTON [8x16] v3 [01-2023]...
  • Page 30 Top of Roof sheet has material folded upwards. Underside of Roof frame—Distance from sheet to frame edge. Roof sheet Top flush with top of frame. BRIGHTON [8x16] v3 [01-2023]...
  • Page 31 Lay Shee ng on Frame Sheets 2,3,4,5 &6 Single overlap Sheets 1/2 overlap 1. Sheets 6/7 overlap 2 Overlap 2 BRIGHTON [8x16] v3 [01-2023]...
  • Page 32 RS50 MO/SM [4] BRIGHTON [8x16] v3 [01-2023]...
  • Page 33 BRIGHTON [8x16] v3 [01-2023]...
  • Page 34 End Frame Fixings RS50 MO/SM [3] x2 Lower Roof Screws placed in Peaks of Sheet. Do not Over ghten. End Fixings placed in Valley nearest to end of Frame. BRIGHTON [8x16] v3 [01-2023]...
  • Page 35 RD-AS2 MO / SM [14] Drill and rivet channel to 1st & 2nd peaks then spaced @ 3 peak spaces then penul mate and last Peak. BRIGHTON [8x16] v3 [01-2023]...
  • Page 36 Roof Assembly—Installa on [28] BS75 [12] Half roof Assembly CT-A PS50CSK BS75 [3] Align Base of Roof frame with Bo om of Gable Frame BRIGHTON [8x16] v3 [01-2023]...
  • Page 37 Roof Side Fixings BS75 [3] BS75 [2] BS75 [3] Collar Ties Collar Tie PS50 [4] BRIGHTON [8x16] v3 [01-2023]...
  • Page 38 Gable assembly [24] F1500 PS32CSK PS32CSK BRIGHTON [8x16] v3 [01-2023]...
  • Page 39 Make sure peak of ridge cap is in line with peak of fascia's. Screw through ridge cap into 3rd and 10th Ribs, from each end of the roof. Drive these screws through and into roof frame. RS50 MO/SM [8] 10th BRIGHTON [8x16] v3 [01-2023]...

  • Page 40: Door Hanging

    Door Hanging Door Assy [L & R] TH150B 2mm > Le Hand shown—Right Mirrored. BRIGHTON [8x16] v3 [01-2023]...
  • Page 41 Hinge Screws [3] Top Hinge Shown—Bo om similar. BRIGHTON [8x16] v3 [01-2023]...
  • Page 42 BRIGHTON [8x16] v3 [01-2023]...
  • Page 43 Door Furniture BB100S DS1820x90 THB [Fixings Kit] FB20 MO/SM BRIGHTON [8x16] v3 [01-2023]...
  • Page 44 BH20 MO/SM [5] BRIGHTON [8x16] v3 [01-2023]...
  • Page 45 Lock Posi on 12mm and 2 x 6mm Note—Clearance Hole in Door Stop required BRIGHTON [8x16] v3 [01-2023]...
  • Page 46 BRIGHTON [8x16] v3 [01-2023]...
  • Page 47 Op onal: Trim excess length off Lock Square sha . BRIGHTON [8x16] v3 [01-2023]...
  • Page 48 Lower Drop Bolt BRIGHTON [8x16] v3 [01-2023]...
  • Page 49 Insert Opening Window Frame [12] Opening Window Assembly FB20 MO/SM BH20 [12] BRIGHTON [8x16] v3 [01-2023]...

  • Page 50: Anchor Kit

    Anchor Kit [Slab moun ng] [13] [13] [26] BKT6040G SB650 RS25 Bracket Posi ons BRIGHTON [8x16] v3 [01-2023]...
  • Page 51 Masonry Drill 5mm, 50mm Deep BRIGHTON [8x16] v3 [01-2023]...

  • Page 52: Finishing Touches

    Once paint is dry, seal bo om and sides of panels with supplied Silicone sealant. TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.s lla.com.au/warranty and complete the online form.
  • Page 53 Brighton/Hampton INSTALLATION GUIDE HEAVY FLOOR [8x16][16X8] 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 54 SAFETY & CARE GUIDELINES Take care when li ing and moving components. Flooring sheets and assembled frames require a minimum of 2 per- sons to li safely. Team li ing of heavy items is recommended to avoid injury. Ensure you fully understand the use of power tools recommended for use in assembling this floor. Eye protec on should be worn when necessary, when opera ng power tools.
  • Page 55 Floor Frame Dimensions 8x16 has door opening on the short [2400mm]side; 16x8 has door opening on long side 8x16 - 16x8 Floor V5—Jan 2023...

  • Page 56: Kit Contents

    Kit Contents [12] [18] L750 SJ1499 Log 100x100x750mm,H4 Suitable for uneven ground. It is recommended that the Single Joist 140x38x17499mm posts are concreted 400-500mm in the ground. [12] DJ1499 EP1200 Double Joist 140x38x1499mm End Plate [Drilled] 140x38x1200mm YT505631 YT1798631 Floorboard 1798 x 631mm Floorboard 505 x 631mm.
  • Page 57 Assemble Quarter Frames [6] Qty listed per Frame [Qty] DJ1499 EP1200 [18] BS100 SJ1499 Assemble Frames: Assemble individual frames first. Screw through predrilled holes in End Plate (EP) into Single and Dou- ble Joists DJ & SJ) using 100mm ba en screws (100BS). Assemble the frames. The frames are used to mark out the post loca ons for the floor.
  • Page 58 BS100 [3] BS100 [2] 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 59 BS100 [8] 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 60 Quarter Frame Spacings Floor Nogs [F350] are ideal for use as Joist spacer. Quarter Frame [6] 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 61 Posi on and 1st Quarter frame Qty listed per Frame [Qty] L750 [16] BS100 Sub. Frame Lay Frame in installa on loca on. Mark inside of frame posi ons, on ground. [Red do ed circle on diagram below]. Remove material to achieve level frame It is recommended that the posts are concreted 400-500mm in the ground.
  • Page 62 Secure Posts to Frame: Predrill [post] screw posi on prior to fi ng screws, four per post. Stagger the alignment of the Screw to avoid interference of the screws Posts and fixings arrangement. NOTE: L750 sits under DJ extension 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 63 Levelling and filling in: Once posts are fi ed and secured, move frame to prepared loca on, level the posts and frames. A level frame is essen al Concrete / Backfill each post into loca on, Check and adjust level and square before concrete sets up / Tamping in.
  • Page 64 Posi on 2nd Quarter frame Qtr. Frame L750 BS65 BS100 Note: DJ’s to outside edge of frame assembly. Lay Frame in installa on loca on. Mark inside of frame posi ons, on ground. [Red do ed circle on diagram above]. Remove sufficient material to achieve level frame 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 65 BS65 [4] Fix Frames together BS100 [8] 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 66 Repeat fixing and levelling process as in step 2. Fasten Frames with BS65 prior to fixing Logs. Levelling and filling in: Once posts are fi ed and secured, level the posts and frames. A level frame is essen al Concrete / Backfill each post into loca on, Check and adjust level and square before concrete sets up / Tamping in.
  • Page 67 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 68 BS65 [6] Fix Frames together 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 69 Floor Nogs [10] [40] FN350 BS100 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 70 [4] BS100 per Nog. Fixing the top of Nog flush with top of the frame will assist with floor level. Final check for frame/s level should be made before Flooring is fi ed. Please ensure posts and frames are level before finalizing Concre ng or Tamping in of posts. This final check is made more difficult if not checked [and any issues rec fied] at this stage.
  • Page 71 Flooring YT1798800 YT1798631 YT505800 [125] YT505631 PS50CSK 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 72 Note: There are crosses printed on the Floorboard surface. These are used for manu- facturing control and not alignment points for fixings. PS50CSK—[2] covering Nogs PS50CSK—[3] per Joist 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 73 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 74 Con nue Placing and Fixing the flooring un l Frame is covered as shown below. 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 75 Floor Anchor [14] PS75CSK 85˚ Pre drill towards center of frame sill 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 76 8x16 - 16x8 Floor V5—Jan 2023...
  • Page 77 TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.s lla.com.au/warranty and com- plete the online form. We recommend that you complete this step once you have finished installing your product.
