DISPLAY SCREEN INSTALLATION
Choose a flat location which is easily accessible and easy to view on the display screen. The
location should be in the vehicle, away from the weather.
Drill a 15mm diameter hole using the provided drilling template to allow the connector to pass
through.
Clean the mounting location, removing any dirt, foreign particles, and rust.

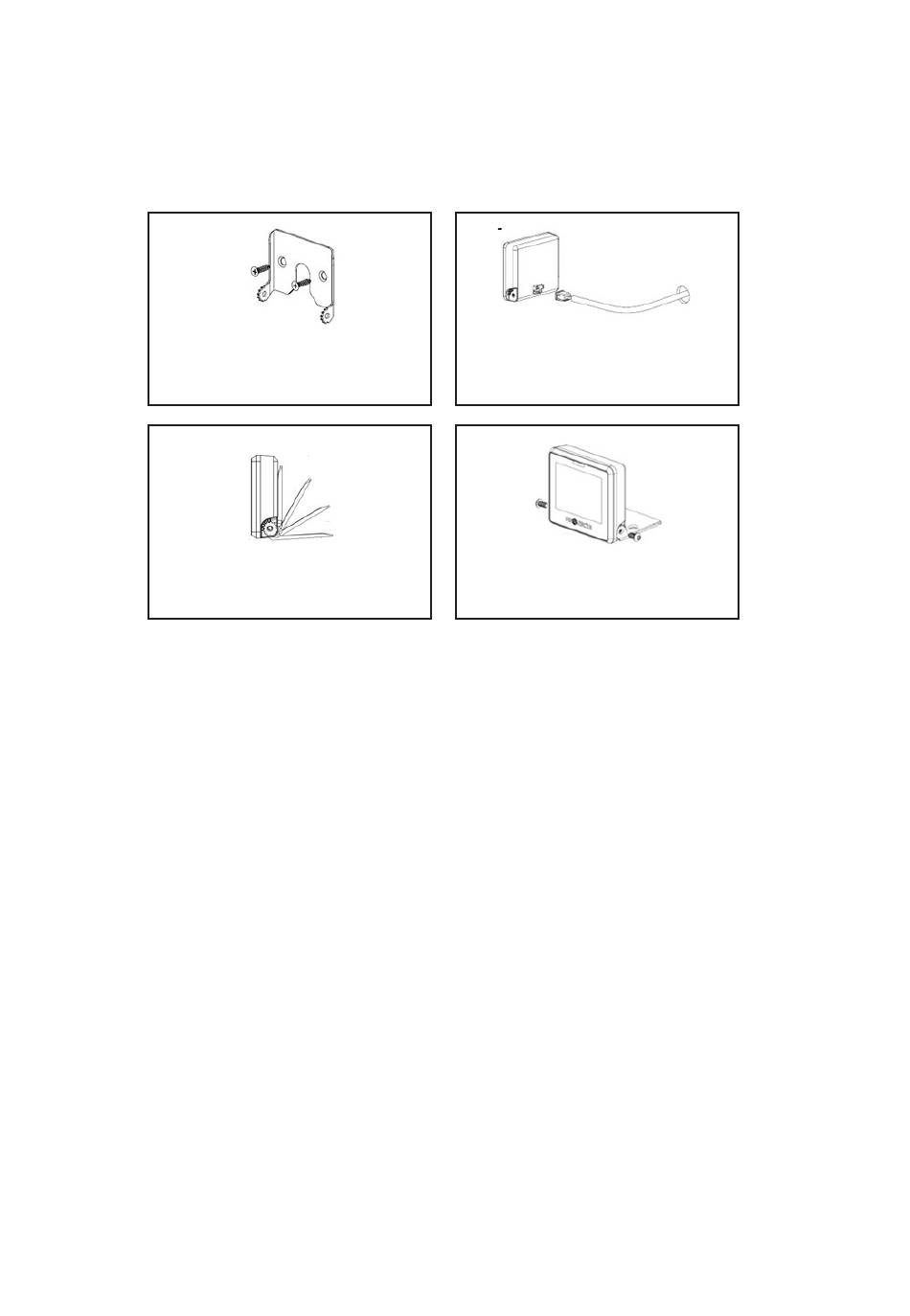

A. Using the supplied mounting screws:
1. Attach the bracket with self-tapping 2. Thread the loom through the pre-
screws to the desired location. drilled hole. Then, connect the plug to
the smart display's back receptacle.
3. Insert the screen in the bracket, 4. Fasten the bracket and screen with
adjust for viewing, and ensure proper provided screws and hex key.
gear engagement.
Note: The accompanying self-tapping mounting screws are only suitable for use on wooden or plastic
material surfaces and must not be used on high-hardness metal materials or stone surfaces.
