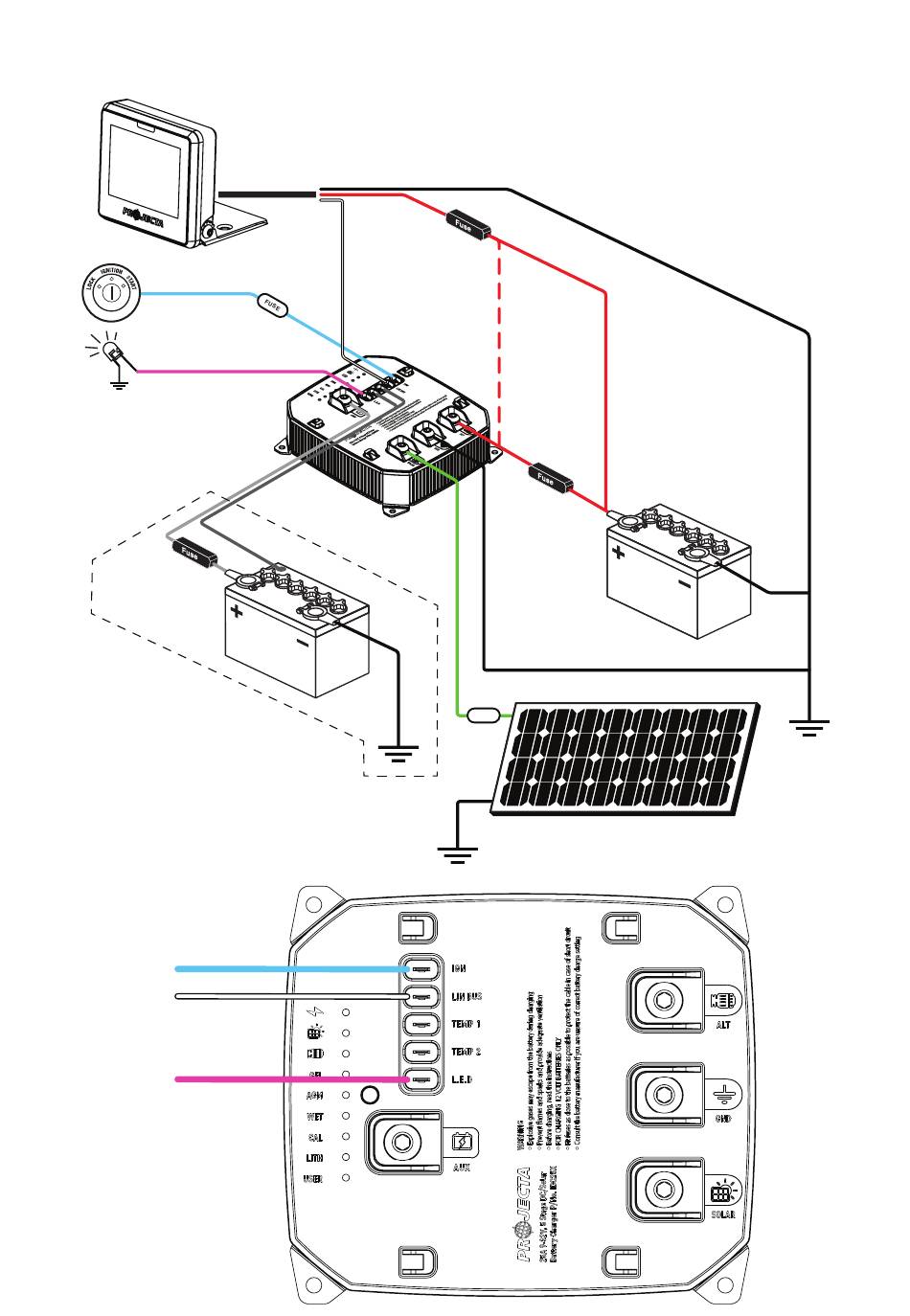

APPLICATION DIAGRAM

FULL SYSTEM WITH INTELLI-IQ CONFIGURATION
IGNITION OVERIDE
SMART ALTERNATOR ONLY
EXTERNAL LED
BATTERY 2
AUX BATTERY
ALTERNATOR/STARTER BATTERY - RED (8mm )
GROUND/CHASSIS - BLACK (8mm )
2
SOLAR - GREEN (8mm )
OUTPUT/AUXILLARY BATTERY - GREY (8mm )
IGNITION OVERRIDE - BLUE (1.5mm )
EXTERNAL LED - PINK (1.5mm )
IGNITION CONNECTION
LINBUS CONNECTION
FOR IQD2
LED INDICATOR
LINBUS
IGNITION OVERIDE
SMART ALTERNATOR ONLY
TEMP SENSOR
EXTERNAL LED
TEMP SENSOR
BATTERY 2
AUX BATTERY
2
ALTERNATOR/STARTER BATTERY - RED (8mm )
2 2
GROUND/CHASSIS - BLACK (8mm )
SOLAR - GREEN (8mm ) 2
OUTPUT/AUXILLARY BATTERY - GREY (8mm )
2
IGNITION OVERRIDE - BLUE (1.5mm ) 2
EXTERNAL LED - PINK (1.5mm ) 2
2
2
OPTION 2:
DIRECT TO ALT
ON IDCX25
LINBUS
OPTION 2:
DIRECT TO ALT
ON IDCX25
BATTERY 1
SOLAR
STARTER BATTERY
BATTERY 1
SOLAR
STARTER BATTERY
FUSE
FUSE
2
2
12V SOLAR PANEL
GROUND
12V SOLAR PANEL
GROUND
OPTION 1:
ALTERNATOR
/STARTER BATTERY
OPTION 1:
ALTERNATOR
/STARTER BATTERY
GROUND
GROUND
