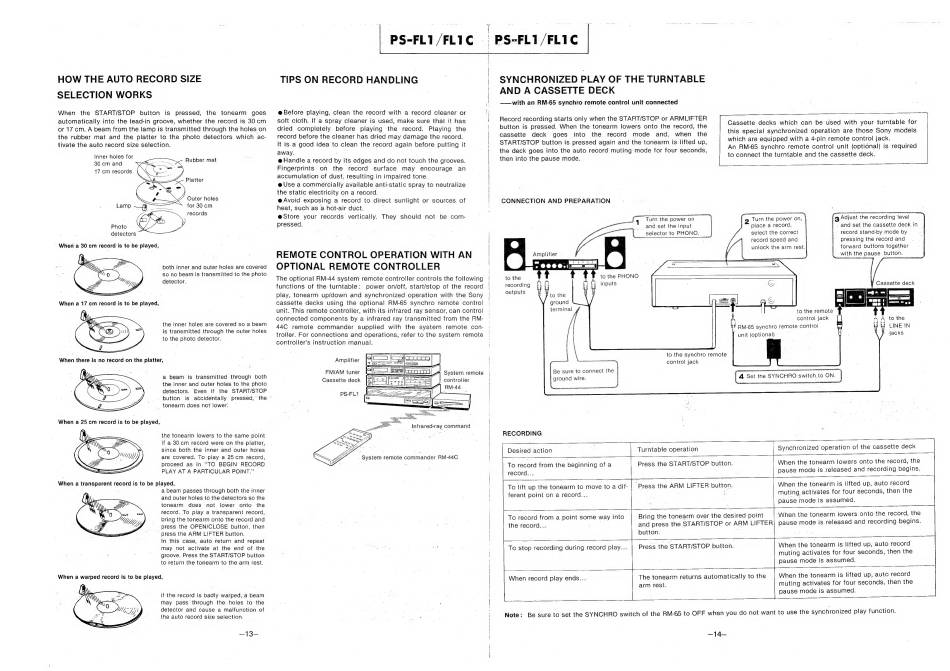

HOW THE AUTO RECORD SIZE
SELECTION WORKS
When
the
START/STOP
button
is
pressed,
the
tonearm
goes
automatically into the lead-in groove, whether the record is 30cm
or 17 cm. A beam from the lamp is transmitted through the holes on
the rubber
mat
and the platter to the photo detectors
which
ac-
tivate the auto record size selection.
inner holes for
30 cm and
17 cm records
Rubber mat
Platter
Outer holes
;
Lamp — : pee
for 30 cm
records
¢ 2
detectors
When a 30 cm record is to be played,
both inner and outer holes are covered
so no beam is transmitted to the photo
detector.
the inner holes are covered so a beam
is transmitted through the outer holes
to the photo detector.
a beam
is transmitted
through
both
the inner and outer holes to the photo
detectors.
Even
if the
START/STOP
button
_ tonearm does not lower.
the tonearm lowers to the same point
if a 30 cm
record were on the platter,
since both the inner and outer holes
are covered.
To play a 25cm
record,
proceed
as
in "TO
BEGIN
RECORD
PLAY AT A PARTICULAR
POINT."
When a transparent record is to be played,
a beam passes through both the inner
and outer holes to the detectors so the
tonearm
does
not
lower
onto
the
record. To play a transparent
record,
bring the tonearm onto the record and
press the OPEN/CLOSE
button, then
press the ARM LIFTER button.
In this 'case, auto
return
and
repeat
may not activate
at the end
of the
groove. Press the START/STOP button
to return the tonearm to the arm rest.
sa
cr)
"yy
When a warped record is to be played,
if the record is badly warped, a beam
may
pass
through
-the holes
to 'the
detector and cause
a malfunction
of
the auto record size selection.
—13—
is
accidentally
pressed,"
the ©
_PS-FL1/FLIC
|
ssontewd
PS-FL1/FL1C
TIPS ON RECORD HANDLING
@Before
playing, clean the record with a record cleaner or
soft cloth. If a spray cleaner is used, make sure that it has
dried
completely
before
playing
the
record.
Playing
the
record before the cleaner has dried may damage the record.
It is-a good idea to clean the record again before putting it
away.
:
@Handle a record by its edges and do not touch the grooves.
Fingerprints
on
the
record
surface
may
encourage
an
accumulation of dust, resulting in impaired tone.
e@ Use a commercially available anti-static spray to neutralize
the static electricity on a record.
@ Avoid exposing
a record to direct sunlight or sources
of
heat, such as a hot-air duct.
@Store
your
records
vertically.
They
should
not
be com-
pressed.
REMOTE CONTROL OPERATION WITH AN
OPTIONAL REMOTE CONTROLLER
The optional RM-44 system remote controller controis the following
functions of the turntable:
power on/off, start/stop of the record
play, tonearm
up/down and synchronized operation with the Sony
cassette decks
using the optional
RM-65
synchro
remote
control
unit. This remote controller, with its infrared ray sensor, can control
connected components
by a-infrared ray transmitted from the RM-
44C
remote
commander
supplied
with
the system
remote
con-
troller. For connections and operations, refer to the system remote
controller's instruction manual.
Amplifier
FM/AM tuner
Cassette deck
System remote
controller
PS-FL1
SYNCHRONIZED PLAY OF THE TURNTABLE
AND A CASSETTE DECK
—with an RM-65 synchro remote control unit connected
Record recording starts only when the START/STOP or ARMLIFTER
button is pressed. When
the tonearm
lowers onto the record, the
cassette
deck
goes
into
the
record
mode
and,
when
the
START/STOP
button is pressed again and the tonearm is. lifted up,
the deck goes into the auto record muting mode for four seconds,
then into the pause mode.
CONNECTION AND PREPARATION
Turn the power on
and set the input
selector to PHONO.
Amplifier
Cassette decks which can be used with your turntable for
this special synchronized
operation
are those Sony models
which are equipped with a 4-pin remote control jack.
An RM-65 synchro remote control
unit (optional) is required
to connect the turntable and the cassette deck.
g Adjust the recording 'level
- and set the cassette deck in
record stand-by mode by
pressing the record and
forward buttons together
with the pause
button.
2 Turn the power on,
place a record,
select the correct
record speed and
unlock the arm rest.j
Tecce.aanmm
to the PHONO
to the
recording
£
inputs
outputs
terminal
co
to the synchro remote
en
control jack
Be sure to connect the
ground wire.
RECORDING
©
Cassette deck
Palos
to the remote
control jack
/ 2
to the
RM-65 synchro remote control
t
LINE IN
jacks
unit (optional)
("4 Set the SYNCHRO switch, to ON.
record...
Press the START/STOP
button.
To lift up the tonearm to move to a dif- |
| To record from the beginning ofa
|
ferent point on a record...
'Press the ARM LIFTER button.
To record from a point some way into
the record...
.
button.
Bring the tonearm over the desired point
and press the START/STOP or ARM
LIFTER
To stop recording during record play...
Press the START/STOP button.
{
When record play ends...
arm rest.
The tonearm returns automatically to the
—14—
