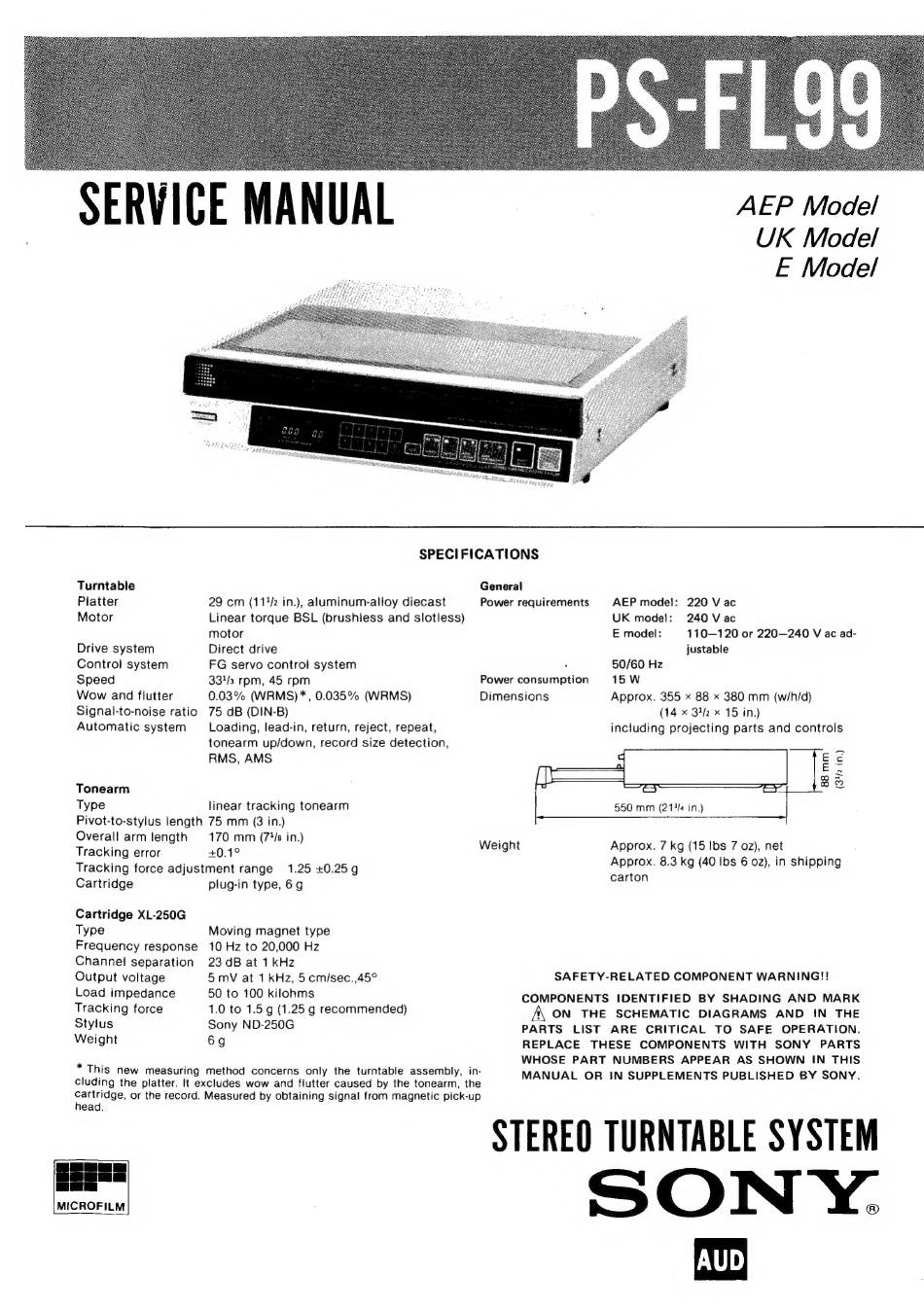

Sony PS-FL99 Service Manual

SERVICE MANUAL
AEP Model
UK Model
E Model
Turntable
Piatter
Motor
Drive system
Control system
Speed
Wow and flutter
Signal-to-noise ratio
Automatic system
Tonearm
Type
Pivot-to-stylus length
Overall arm length
Tracking error
SPECIFICATIONS
General
Power requirements
29 cm (11/2 in.), aluminum-alloy diecast
Linear torque BSL (brushless and slotless)
motor
Direct drive
FG servo control system
33/3 rpm, 45 rpm
0.03% (WRMS)*, 0.035% (WRMS)
75 dB (DIN-B)
Loading, lead-in, return, reject, repeat,
tonearm up/down, record size detection,
RMS, AMS
linear tracking tonearm
75 mm (3 in.)
170 mm (73s in.)
+0.1°
Tracking force adjustment range 1.25 +0.25g
Cartridge
Cartridge XL-250G
Type
Frequency response
Channel separation
Output voltage
Load impedance
Tracking force
Stylus
Weight
* This new measuring
plug-in type, 6g
Moving magnet type
10 Hz to 20,000 Hz
23 dB at 1 kHz
5 mV at 1 kHz, 5 cm/sec.,45°
50 to 100 kilohms
1.0 to 1.5 g (1.25 g recommended)
Sony ND-250G
6g
method concerns only the turntable assembly, in-
cluding the platter. It excludes wow and flutter caused by the tonearm, the
Cartridge, or the record. Measured by obtaining signal from magnetic pick-up
head.
MICROFILM
Power consumption
Dimensions
AEP model: 220 V ac
UK model: 240 V ac
E model: 110—120 or 220—240 V ac ad-
justable
50/60 Hz
15 W
Approx. 355 « 88 « 380 mm (w/h/d)
(14 x 33/2 x 15 in.)
including projecting parts and controls
(342 in.)
550 mm (21/4 in.)
Weight Approx. 7 kg (15 Ibs 7 0z), net
Approx. 8.3 kg (40 Ibs 6 02), in shipping
carton
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

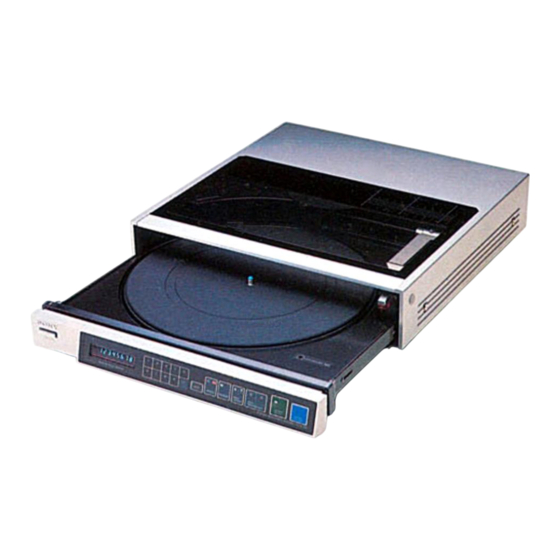

STEREO TURNTABLE SYSTEM
ON Y.
AUD
