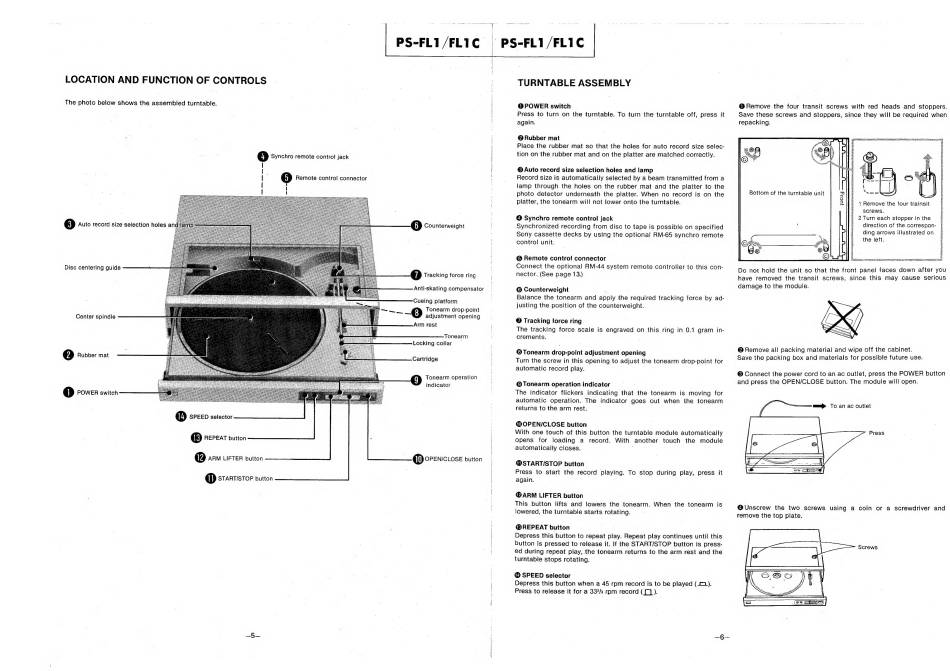

The photo below shows the assembled turntable.
©
Auto record size selection holes a
Disc centering guide
Center spindle
2) Rubber mat
0 POWER switch
@
SPEED selector
® REPEAT button
@ an LFTER button
@ STARTISTOP button
=
5
Remote control connector
4) Synchro remote control jack
I
J
|
I
I
PS-FL1/FL1C
- PS-FL1/FLIC
@ Counterweight
YM Tracking force ring
Anti-skating compensator
Cueing platform
ae
o Tonearm drop-point
adjustment opening
Arm rest
Tonearm
Locking collar
Cartridge
Tonearm operation
>
indicator
@ OPENICLOSE button
TURNTABLE ASSEMBLY
@POWER
switch
Press to turn on the turntable. To turn the turntable off, press it
again.
@Rubber mat
Place the rubber mat so that the holes for auto record size selec-
tion on the rubber mat and on the platter are matched correctly.
@ Auto record size selection holes and lamp
Record size is automatically selected by a beam transmitted from a
lamp through the holes on the rubber mat and the platter to the
photo detector underneath the platter. When
no record is on the
platter, the tonearm will not lower onto the turntable.
@ Synchro remote control jack
Synchronized recording from disc to tape is possible on specified
Sony cassette decks by using the optional RM-65 synchro remote
control unit.
© Remote control connector
Connect the optional RM-44 system remote controller to this con-
nector. (See page 13.)
© Counterweight
:
Balance the tonearm and apply the required tracking force by ad-
justing the position of the counterweight.
@ Tracking force ring
The tracking force scale is engraved on this ring in 0.1 gram
in-
crements.
@Tonearm drop-point adjustment opening
Turn the screw in this opening to adjust the tonearm drop-point for
automatic record play.
©Tonearm operation indicator
The indicator flickers
indicating that the tonearm
is moving
for
automatic
operation.
The
indicator goes
out when
the tonearm
returns to the arm rest.
@OPENICLOSE button
With one touch of this button the turntable module automatically
opens
for
loading
a
record.
With
another
touch
the
module
automatically closes.
;
@STARTI/STOP button
Press to start the record playing. To stop during
play, press
it
again.
@ARM LIFTER button
This button
lifts and
lowers
the tonearm.
When
the tonearm
is
lowered, the turntable starts rotating.
@®REPEAT button
Depress this button to repeat play. Repeat play continues until this
button is pressed to release it. If the START/STOP
button is press-
ed during repeat play, the tonearm returns to the arm rest and the
turntable stops rotating.
@ SPEED selector
Depress this button when a 45 rpm record is to be played (2).
Press to release it for a 33/3 rpm record ([) ).
@ Remove
the four transit screws
with red heads
and stoppers.
Save these screws and stoppers, since they will be required when
repacking.
weer
Bottom of the turntable unit
1 Remove the four trainsit
screws.
2 Turn each stopper in the
direction of the correspon-
ding arrows illustrated on
the left.
2
|
e
,
i
S
e
*
i
e
3
2
:
s
:
%
:
s
#
g
:
=
ghee
aetenatntemaontasmetart
ee
4
ES SSS SILER RICE
ROR
oe
Do not hold the unit so that the front panel faces down after you
have
removed
the transit
screws,
since this may
cause
serious
damage to the module.
@ Remove all packing material and wipe off the cabinet.
Save the packing box and materials for possible future use.
® Connect the power cord to an ac outlet, press the POWER button
and press the OPEN/CLOSE
button. The module will open.
a>
To an ac outlet
Press
@Unscrew
the two
screws
using
a coin
or a screwdriver
and
remove the top plate.
Screws
