PULSE HVLS IN D UST RIA L FAN
Installation Guide
Step 4 - Connecting to power supply and wiring
The wire conduit layout should be done in accordance to site parameters and respective state,
industry Australian standards and legislation.
Before wiring, please make sure the power is off . Then connect to the power supply. If the site
power supply is single phase - 240VAC, the motor is wired according to delta type. Connect
motor wire first then connect the electric wires to the control box.
Do not connect the power supply to the motor directly.

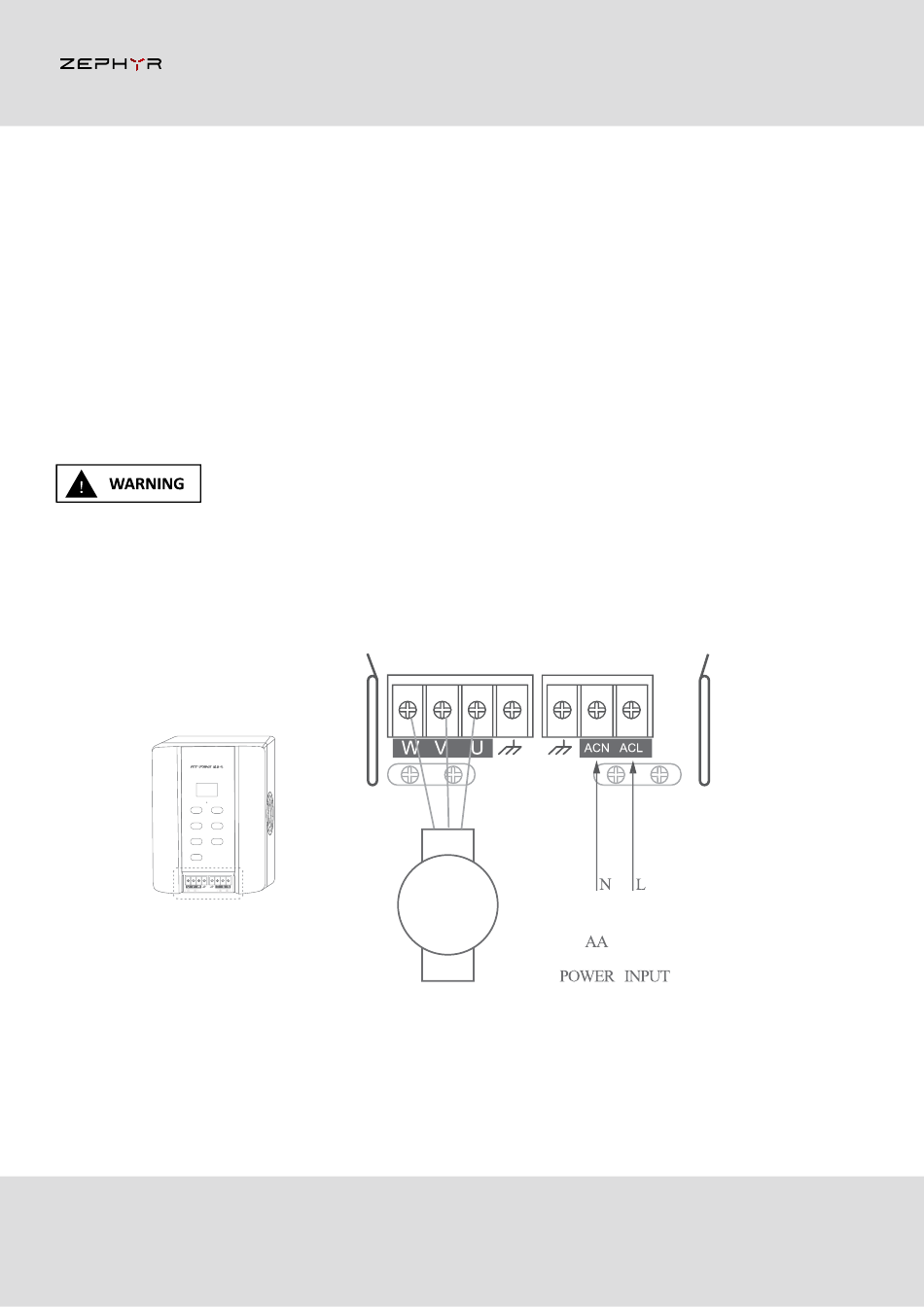

Wiring diagram
Single Phase/220~240V
1P/AC240V
AC240V
MOTOR
The information contained in this document is the sole property of Zephyr Fans PTY LTD. Any reproduction in part or as a whole without the written permission of Zephyr Fans PTY LTD is prohibited.
9
Z E P H Y R F A N S . A U
