PULSE HVLS IN D UST RIA L FAN

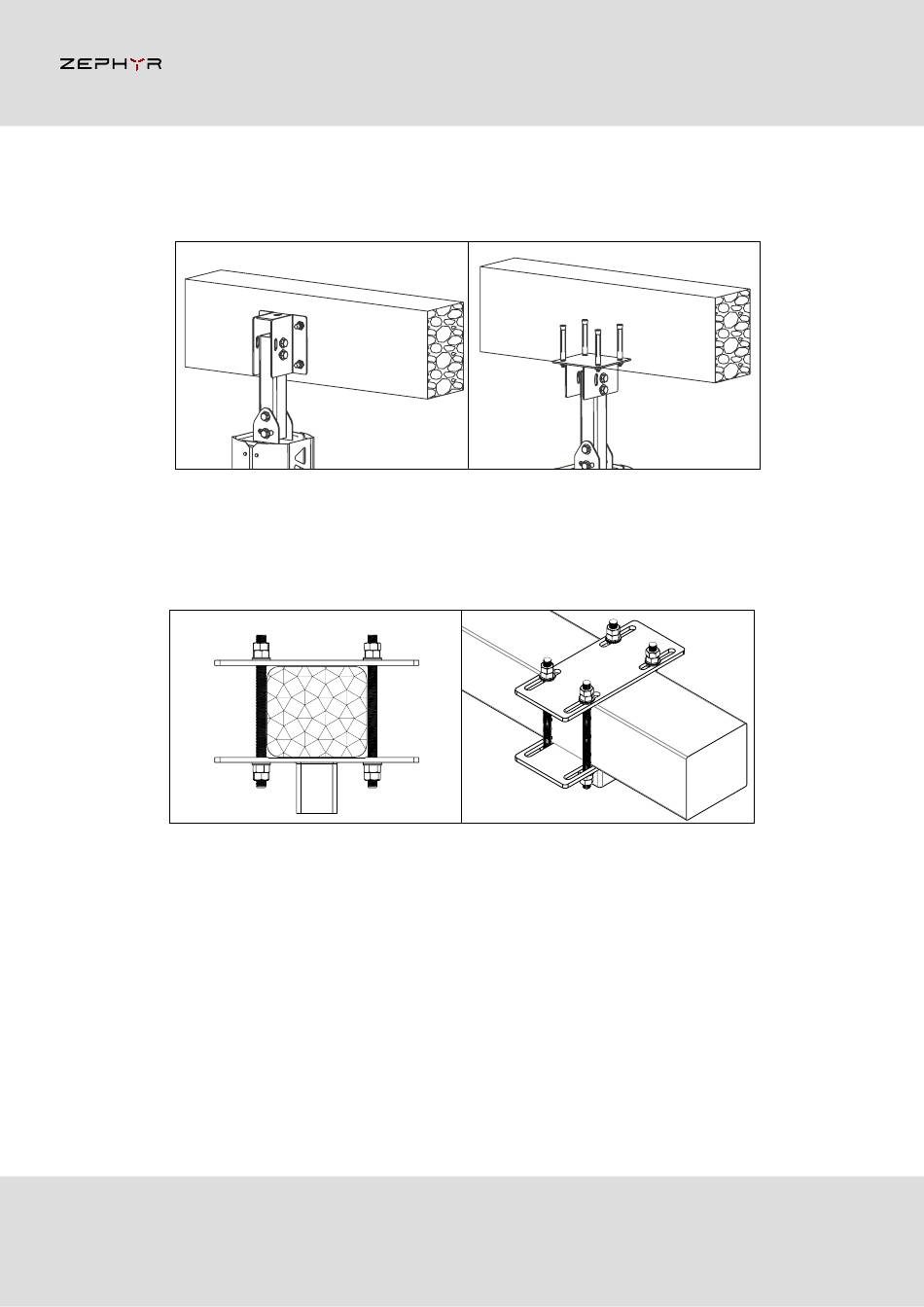

Concrete Beam
Connect the mounting device by fixing expansion bolts onto the concrete beam, the
mounting device can be adjusted to the width of the beam.
Rigid Frame Beam
Connect the mounting device is fixed by threaded rod onto the rigid frame beam. Cut the
threaded rod into 4pcs based on the height of the rigid frame beam. The device can be adjust-
ed according to the width of the beam (80-240mm).
The information contained in this document is the sole property of Zephyr Fans PTY LTD. Any reproduction in part or as a whole without the written permission of Zephyr Fans PTY LTD is prohibited.
7
