Installation Tools:
Please ensure you at least have the following tools:
• Leveling instrument
• Cutting pliers
• Wire stripper
• Lifting device(Scissor lift or scaffold )
• Pliers
• 4 sets of tighteners(or turnbuckle screws)
• Phillips head screwdriver
• Flat head screwdriver
• Tapeline
• Marking pen
• Hand electric drill with M4.2 bit.
• Open hexagonal wrench: 8mm/10mm/13mm/14mm/16mm/17mm/18mm/19mm
Note: A hammer drill with a 10mm and 12mm drill bit will also be required when connecting
to the Concrete beam.
Installation Guide
Step 1 - Installing onto the building

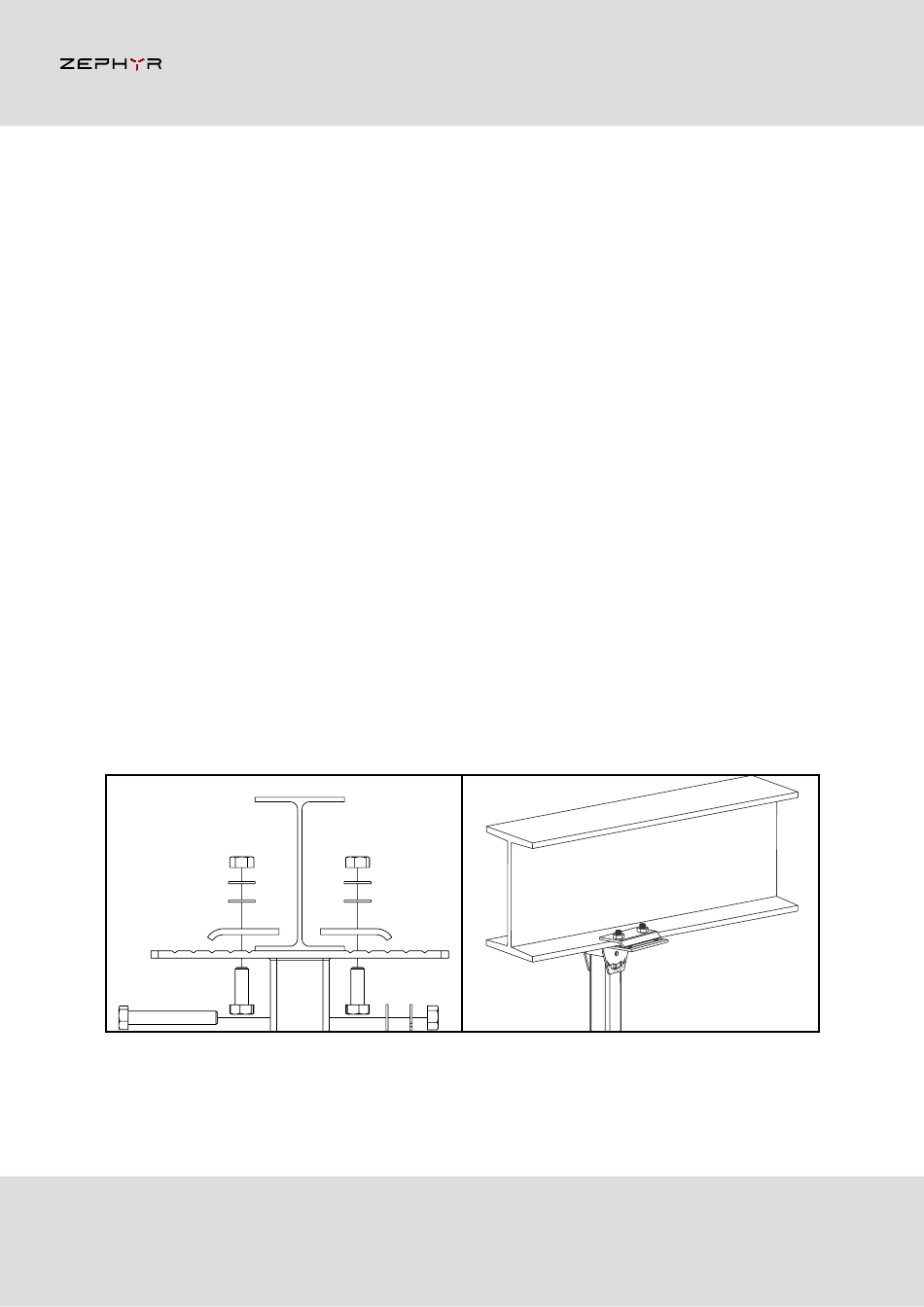

H-Beam
Connect with Steel H-Beam with the adjustable mounting bracket set, (the fan can be easily
clipped onto on any steel H-beam, without changing the steel structure).The device can be
adjusted according the width of the beam (80mm-220mm).
