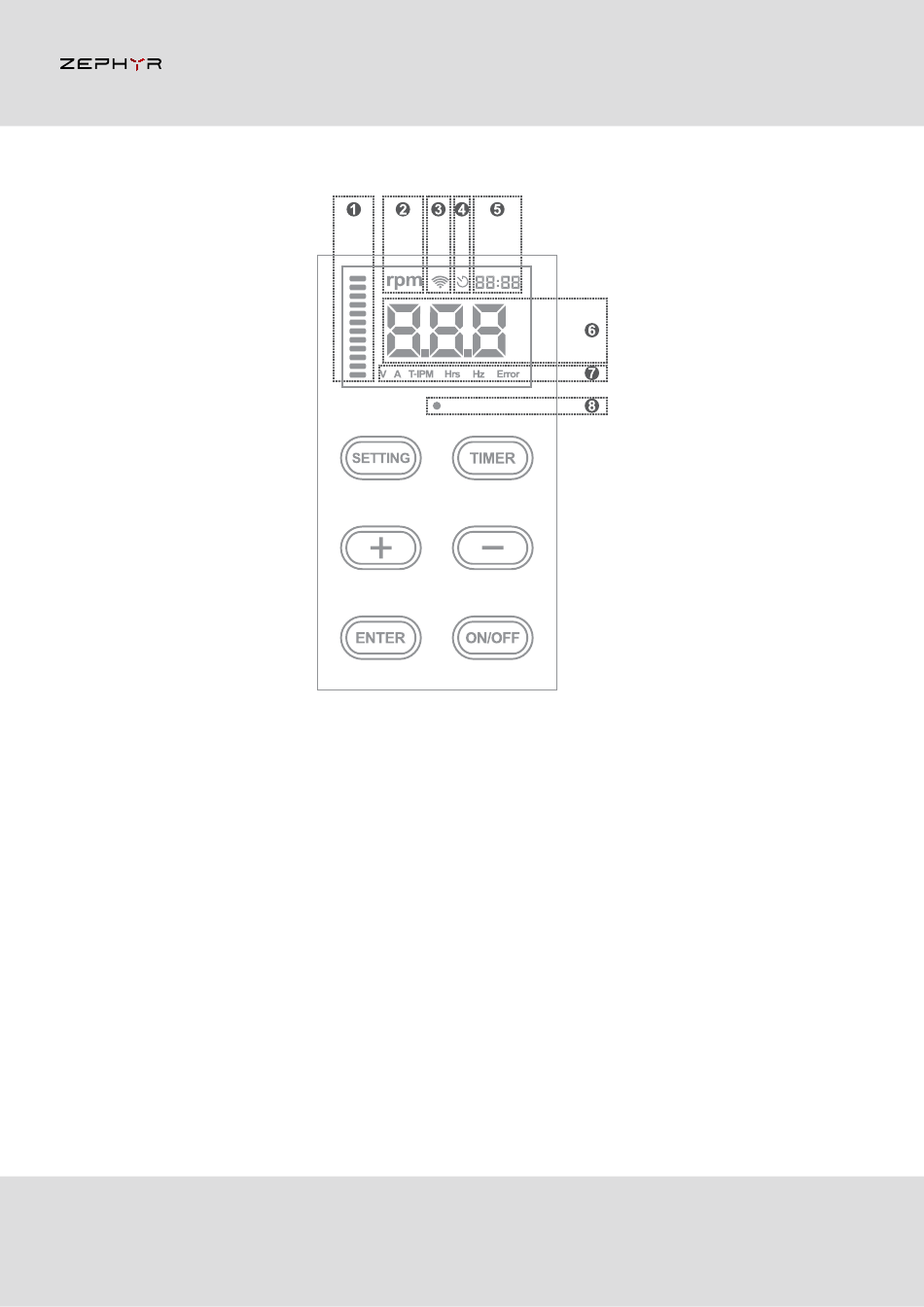

Display icon description
1. The speed amplitude icon, divides the lowest speed to the highest speed into 12 equal
parts, and displays the amplitude according to the actual speed setting value, which is fixed
during operation.
2. Speed icon, when the data display area is speed data, this icon is displayed.
3. Wifi icon, when the connection is normal, the icon is displayed; when the connection is
dropped, the icon is not displayed; when it is not set, the icon flashes.
4. Timing icon, the icon is always displayed during the set timing and countdown.
5. Clock and timing display area, display real-time clock, the initial clock is set at 12:00, and
uses the 24-hour clock. When the timer switch function is set, this area displays the
countdown time.
6. Data display area, displaying running data and setting data.
7. Parameter display icon.
8. Two-color indicator light, red when standby, green when running, and red flashing (1Hz)
when fault occurs.
