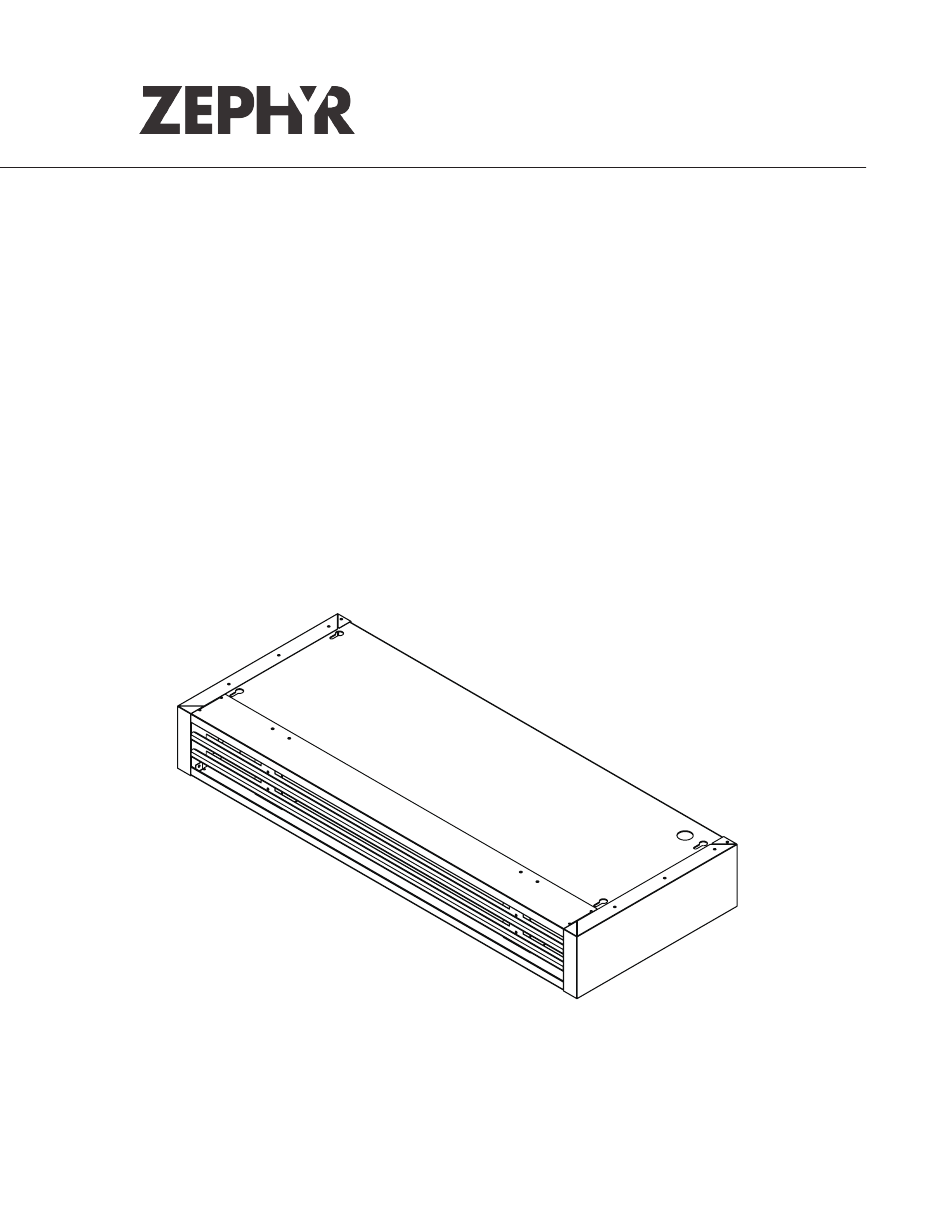

- Page 1 Installation Guide Tempest, Tidal I, Tidal II Recirculating Kit ZRC-7000C ZRC-7036C ZRC-7042C ZRC-7048C JAN21.0201 © Zephyr Ventilation LLC. READ AND SAVE THESE INSTRUCTIONS...
- Page 2 MODELS: ZRC-7000C, ZRC-7036C, ZRC-7042C, ZRC-7048C PARTS SUPPLIED 1 - Air diverter box 2 - Carbon filter cartidges (3 - ZRC-7048C) 2 - Carbon filter adapters (3 - ZRC-7048C) 1 - Hardware package HARDWARE PACKAGE CONTENTS #6 x 1” (4) 3/16 x 3/8”...
- Page 3 2-9/16” 27-1/4” or 33-1/4” or 39-3/16” or 45-3/16” 7/8” 11-13/16” 42” & 48” Models only FRONT 29-15/16” or 35-15/16” or 41-15/16” or 47-15/16” SIDE 12”...
- Page 4 www.zephyronline.com Mounting the air diverter box FOR USE WITH AK7000CS, AK7300AS, AK7400AS, AK7500CS, AK7036CS, AK7336AS, AK7436AS AK7536CS, AK7042CS, AK7542CS, AK7048CS, AK7448AS, and AK7548CS ONLY FOR USE WITH SINGLE INTERNAL BLOWER ONLY NOT COMPATIBLE WITH DUAL INTERNAL BLOWER 1. Position the air diverter box under cabinet. Mark the (4 for 30 &...
- Page 5 clip Mounting the Bracket and Baffle Filter 1. Insert the charcoal filter bracket into back side of baffle filter (side without handles). The (2) tabs on the bottom of the bracket should be inserted into the baffle filter first. Push the bracket towards the baffle filter to lock bracket in place.
