PULSE HVLS IN D UST RIA L FAN
Installation Guide

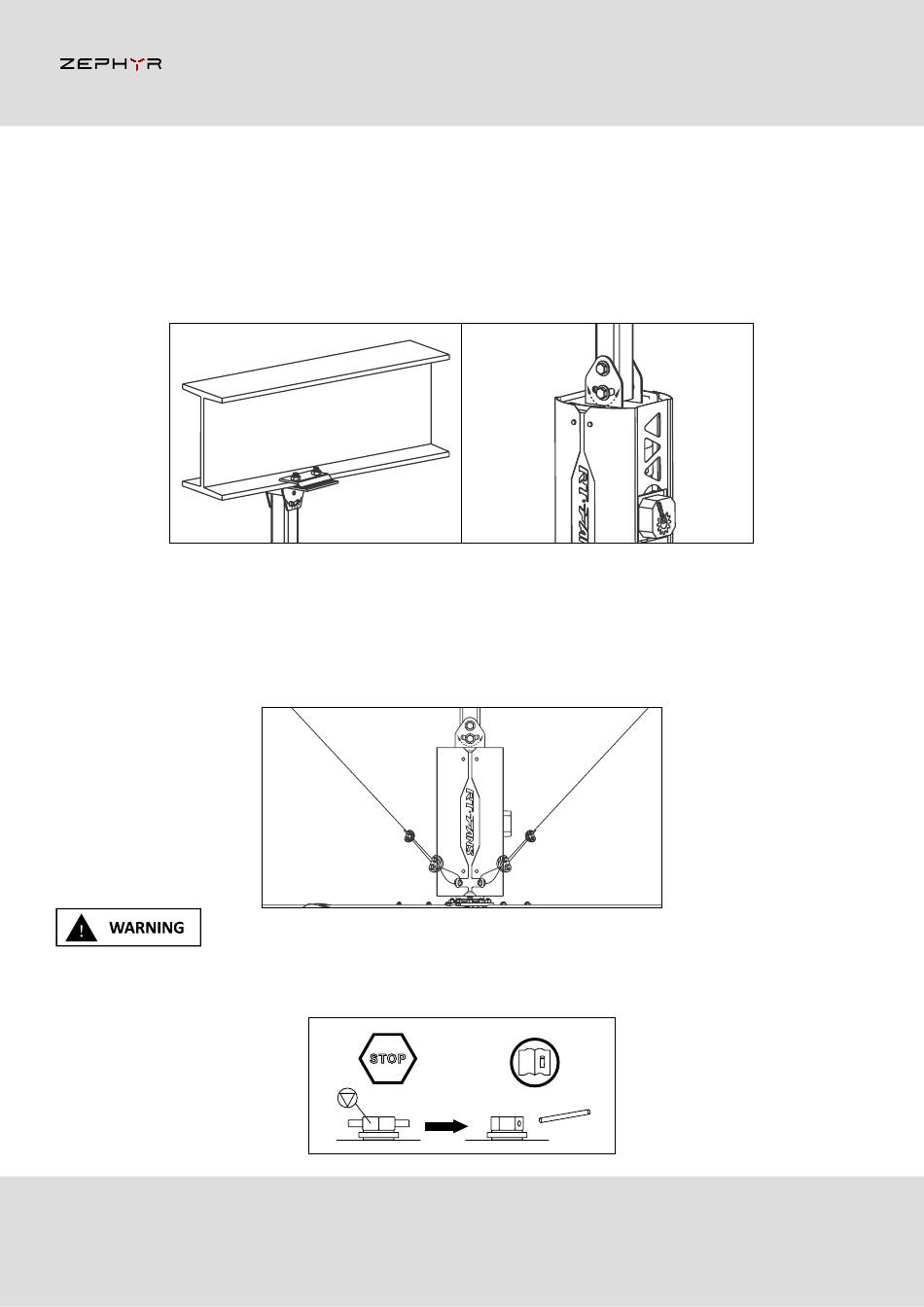

Step 2 - Installing the extension rod
Connect the ends of extension rod with the Cardan joint and drive device by bolts (please note
that the length of the extension rod is customized according to site parameters, please consult
Zephyr for the required length of the extension rod).
Step 3 - Installing the drive device
Fix the extension rod onto the drive device with the bolts and use the adjustable arc-shaped
groove to ensure that the drive device is at a vertically level position (please note that the drive
device is preassembled as a singular unit, the drive device is heavy and will require 2-3 people
to lift and install).
Do not remove the oil plug until the fan is properly mounted. If the oil plug is removed before
the fan is mounted, oil in the gear box reducer may spill out.
