Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
AU: MES
User Manual
Dakota Micro® AHD 9" Quad Monitor
BY: SJE
Description(s)
This Dakota Micro® kit includes one (1) AHD 9"
quad monitor and accessories.
V3.3
User Manual DM-H9Q
REV: 02/21/24
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Dakota Micro DM-H9Q
Summary of Contents for Dakota Micro DM-H9Q
- Page 1 Dakota Micro® AHD 9” Quad Monitor DM Part Number(s) Description(s) DM-H9Q This Dakota Micro® kit includes one (1) AHD 9" quad monitor and accessories. Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions. AU: MES BY: SJE V3.3...
-
Page 2: Table Of Contents
User Manual DM-H9Q Table of Contents Included Components .............................. 3 Optional Components .............................. 3 Standard Features ..............................3 Monitor ................................3 Monitor Installation & Mounting ..........................4 Mounting Precautions ............................4 Universal Bracket Mounting ..........................4 Finalizing Universal Bracket Installation ......................4 Power .................................. -
Page 3: Included Components

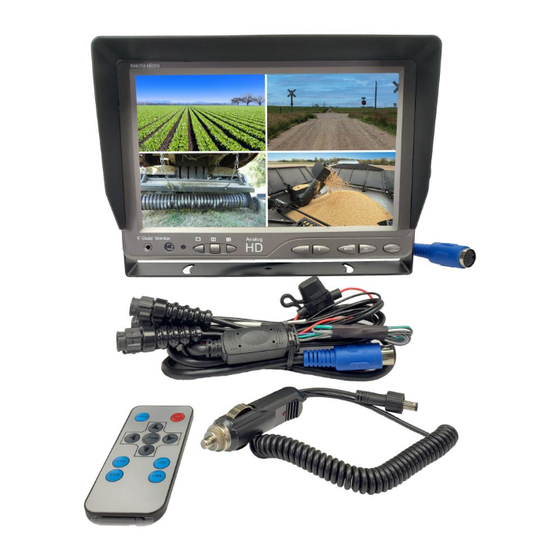

User Manual DM-H9Q Included Components Description Picture Dakota Micro® AHD 9” Quad Monitor Dakota Micro® AHD 9” Quad Monitor Wire Harness PN: DM-H9QMWH Dakota Micro® AHD 9” Quad Monitor Remote PN: DM-H9QRMT Dakota Micro® 9" Monitor Sun Shade PN: DM-9Shade Dakota Micro®... -
Page 4: Monitor Installation & Mounting
2. Plug Cigarette lighter adapter into 12v power source. Hardwire Power Adapter 1. If you would like to hardwire your power supply, please contact your local Dakota Micro, Inc. dealer for available hardwire power adapters (PN: DM-HDWRE) 2. Dakota Micro hardwire power adapters have a maximum circuit capability of 5 amp. -
Page 5: Remote Operations
User Manual DM-H9Q Remote Operations POWER ON/OFF Switches between video channels Navigation Arrow Navigation Arrow Navigation Arrow Navigation Arrow Displays Menu Camera/ Channel 1 Full Screen Camera/ Channel 2 Full Screen Camera/ Channel 3 Full Screen Camera/ Channel 4 Full Screen... -
Page 6: Specifications
User Manual DM-H9Q Display Adjustment: Scene Mode: Adjusts look of entire display-highlight, film, brilliance, cool, warm, custom. Adjustment of brightness, contrast, saturation, & hue of chosen scene also available Image Adjust: Allows adjustment of individual cameras- brightness, contrast saturation, hue. You can also individually flip each camera. -
Page 7: Warnings
8659 148 ½ Ave. SE Cayuga, ND 58013 6. Upon receipt and evaluation of product at Dakota Micro, Inc. factory, it will be established if the repair is warranty or non- warranty. Customer will be notified of any applicable charges. -
Page 8: Consumer Limited Warranty
Dakota Micro, Inc. to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro, Inc. be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro, Inc.
