RazerCam™ AHD 7" Waterproof Monitor, AHD 170° Camera, and Cable
DM Part Number(s)
DMRZ-WH7C1
Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
AU: SJE
User Manual
BY: SJE
Description(s)
This RazerCam™ kit includes one (1) AHD 7"
waterproof monitor, one (1) AHD 170° NTSC
camera, one (1) 20' shielded video flex cable and
accessories.
V2
REV: 03/19/24
User Manual DMRZ-WH7C1
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Dakota Micro RazerCam DMRZ-WH7C1
Summary of Contents for Dakota Micro RazerCam DMRZ-WH7C1
- Page 1 User Manual DMRZ-WH7C1 User Manual RazerCam™ AHD 7” Waterproof Monitor, AHD 170° Camera, and Cable DM Part Number(s) Description(s) DMRZ-WH7C1 This RazerCam™ kit includes one (1) AHD 7” waterproof monitor, one (1) AHD 170° NTSC camera, one (1) 20’ shielded video flex cable and accessories.
-
Page 2: Table Of Contents
User Manual DMRZ-WH7C1 Table of Contents Included Components .............................. 4 Standard Features ..............................5 RazerCam™ Camera ............................5 Monitor ................................5 Cables ................................5 RazerCam™ Wide-Angle Camera Detail ........................5 RazerCam™ Installation ............................6 General skid-steer Camera Installation ......................6 Monitor Installation &... - Page 3 User Manual DMRZ-WH7C1 Intentionally Left Blank AU: SJE BY: SJE REV: 03/19/24 Page 3 of 12...
-
Page 4: Included Components

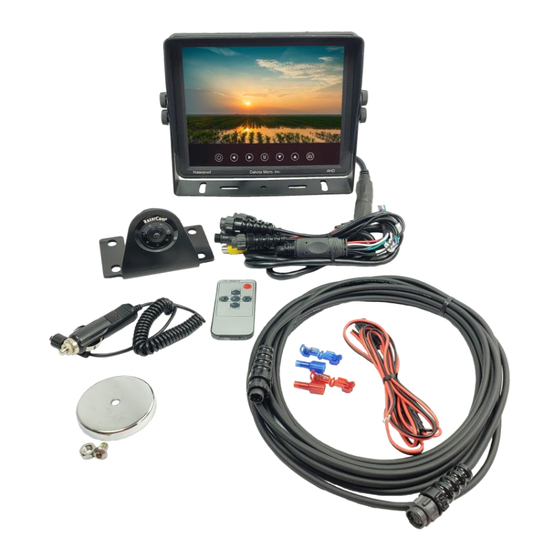

User Manual DMRZ-WH7C1 Included Components Description Picture Dakota Micro® AHD 7” Waterproof Monitor Dakota Micro® AHD 7" and 9" Monitor Wire Harness PN: DM-MWH Dakota Micro® 7" Waterproof Monitor U-bracket and Hardware Dakota Micro® AHD 7" and 9" Monitor Remote PN: DM-HRMT RazerCam™... -
Page 5: Standard Features
User Manual DMRZ-WH7C1 Standard Features RazerCam™ Camera • True HD Resolution (720P) • 1 Year Warranty • 16:9 aspect ratio, so the image doesn’t need to be “stretched” to match monitors • Improved color and clarity over standard analog video cameras •... -
Page 6: Razercam™ Installation
3. The monitor does not interfere with the normal operation of equipment. Warning: Dakota Micro, Inc. is not responsible for any damages caused to your monitor or yourself due to the improper installation or use of a suction cup monitor mount, whether it be product sold by Dakota Micro or product purchased from another source. -
Page 7: Power
2. Plug Cigarette lighter adapter into 12v power source. Hardwire Power Adapter 1. If you would like to hardwire your power supply, please contact your local Dakota Micro, Inc. dealer for available hardwire power adapters (PN: DM-HDWRE) 2. Dakota Micro hardwire power adapters have a maximum circuit capability of 5 amp. -
Page 8: Monitor Wire Harness Details
Your Bobcat kit includes one (1) 15’ power video extension cable. If you would like to purchase different or additional cable lengths, please contact your local Dakota Micro, Inc. dealer. There are any number of ways you can route your power/video extension cable from your monitor back to your camera; we will leave that up to the individual users. - Page 9 User Manual DMRZ-WH7C1 Language: Set the language for the monitor menu Reversing Guide: Turn Reverse lines on/off Reversing Priority: Not applicable on this monitor Reversing Delay: Allows user to set the amount of time monitor will remain on when a trigger has been disengaged.
-
Page 10: Specifications
User Manual DMRZ-WH7C1 Specifications LCD Monitor Screen Size 16:9 Digital Panel Overall Size 4.84in(123mm) (H) x 7.04in(179mm) (W) x 1.14in(29mm) (D) Weight 396g Power Input DC 10-32v Color System NTSC/PAL auto switch Operating Temp. -30°F(-20°C) ~122°F(50°C) Brightness 350cd/m Resolution (HxV) 1024(H)x600(V) Contrast 500:1... -
Page 11: Warnings
8659 148 ½ Ave. SE Cayuga, ND 58013 6. Upon receipt and evaluation of product at Dakota Micro, Inc. factory, it will be established if the repair is warranty or non- warranty. Customer will be notified of any applicable charges. -
Page 12: Consumer Limited Warranty
Dakota Micro, Inc. to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro, Inc. be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro, Inc.
