RazerCam™ AHD 7" Monitor, 170° Skid Steer Bracket, and Cable
DM Part Number(s)
DMRZ-SH7C1
Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
AU: CNR
User Manual
BY: SJE
Description(s)

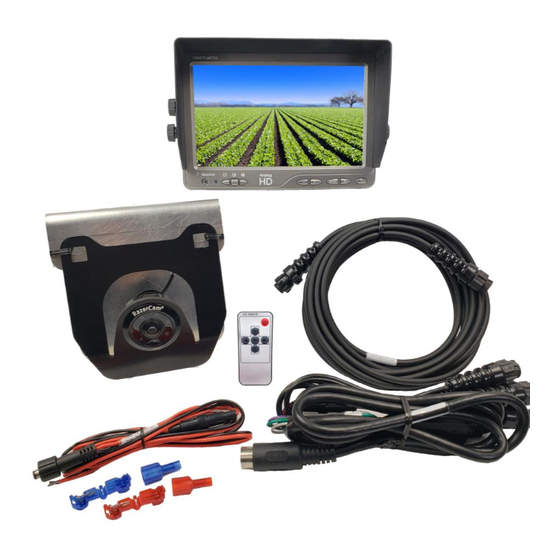

This RazerCam™ kit includes one (1) AHD 7"
monitor, one (1) AHD 170° camera, one (1) 15'
shielded video flex cable, three (3) custom
brackets and accessories.
V2
REV: 03/11/24
User Manual DMRZ-SH7C1
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Dakota Micro RazerCam DMRZ-SH7C1
Summary of Contents for Dakota Micro RazerCam DMRZ-SH7C1
- Page 1 User Manual DMRZ-SH7C1 User Manual RazerCam™ AHD 7” Monitor, 170° Skid Steer Bracket, and Cable DM Part Number(s) Description(s) DMRZ-SH7C1 This RazerCam™ kit includes one (1) AHD 7" monitor, one (1) AHD 170° camera, one (1) 15' shielded video flex cable, three (3) custom brackets and accessories.
-
Page 2: Table Of Contents
User Manual DMRZ-SH7C1 Table of Contents Included Components .............................. 3 Standard Features ..............................4 RazerCam™ Camera ............................4 Monitor ................................4 Cables ................................4 RazerCam™ Wide-Angle Camera Detail ........................4 RazerCam™ Installation ............................4 Bobcat 650 and Lower Model Skid-Steer ......................5 Bobcat 770 and Higher Model Skid-Steer ...................... -
Page 3: Included Components
User Manual DMRZ-SH7C1 Included Components Description Picture Dakota Micro® AHD 7” Monitor Dakota Micro® AHD 7" and 9" Monitor Wire Harness PN: DM-MWH Dakota Micro® 7” Skid Steer Monitor U-Bracket and Hardware PN: DM-H7SBRKT Dakota Micro® 7" Monitor Sun Shade PN: DM-7SHADE Dakota Micro®... -
Page 4: Standard Features
User Manual DMRZ-SH7C1 Standard Features RazerCam™ Camera • True HD Resolution (720P) • 1 Year Warranty • 16:9 aspect ratio, so the image doesn’t need to be “stretched” to match monitors • Improved color and clarity over standard analog video cameras •... -
Page 5: Bobcat 650 And Lower Model Skid-Steer
User Manual DMRZ-SH7C1 Bobcat 650 and Lower Model Skid-Steer Bobcat 650 and lower models have the style back door illustrated to the right. The rear of this style bobcat is simpler and is identifiable by the lack of fans and no extra exhaust across the top. The existing beeper mounts look like the image to the right. -
Page 6: Monitor Installation & Mounting
3. The monitor does not interfere with the normal operation of equipment. Warning: Dakota Micro, Inc. is not responsible for any damage caused to your monitor or yourself due to the improper installation or use of a suction cup monitor mount, whether it be product sold by Dakota Micro or product purchased from another source. -
Page 7: Monitor Installation & Mounting For Skid-Steer With Steel Grid Cage
1. Attach the flying leads to a key powered source. (red= power & black= ground) 2. Attach the power input connector on monitor to your included hardwire power adapter. 3. Dakota Micro hardwire power adapters have a maximum circuit capability of 5 amp. Fuses 1. -
Page 8: Monitor Operations
User Manual DMRZ-SH7C1 Monitor Operations Monitor Operations 1 2 3 4 5 6 7 8 Non-Functional Non-Functional Non-Functional - Key To Decrease parameter + Key To Increase parameter MENU Allows users to access the menu. Once in the menu, toggles through menu options Each button press switches between AV1, AV2, AV3, &... -
Page 9: Cable Routing & Warnings
Your Bobcat kit includes one (1) 15’ power video extension cable. If you would like to purchase different or additional cable lengths, please contact your local Dakota Micro, Inc. dealer. There are any number of ways you can route your power/video extension cable from your monitor back to your camera; we will leave that up to the individual users. -
Page 10: Specifications
User Manual DMRZ-SH7C1 Specifications LCD Monitor Screen Size 16:9 Digital Panel Overall Size 4.84in(123mm) (H) x 7.04in(179mm) (W) x 1.14in(29mm) (D) Weight 396g Power Input DC 10-32v Color System NTSC/PAL auto switch Operating Temp. -30°F(-20°C) ~122°F(50°C) Brightness 350cd/m Resolution (HxV) 1024(H)x600(V) Contrast 500:1... -
Page 11: Warnings
8659 148 ½ Ave. SE Cayuga, ND 58013 6. Upon receipt and evaluation of product at Dakota Micro, Inc. factory, it will be established if the repair is warranty or non- warranty. Customer will be notified of any applicable charges. -
Page 12: Consumer Limited Warranty
Dakota Micro, Inc. to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro, Inc. be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro, Inc.
