Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
AU: CNR
User Manual
Dakota Micro® AHD 7" Waterproof Monitor
BY: SJE
Description(s)

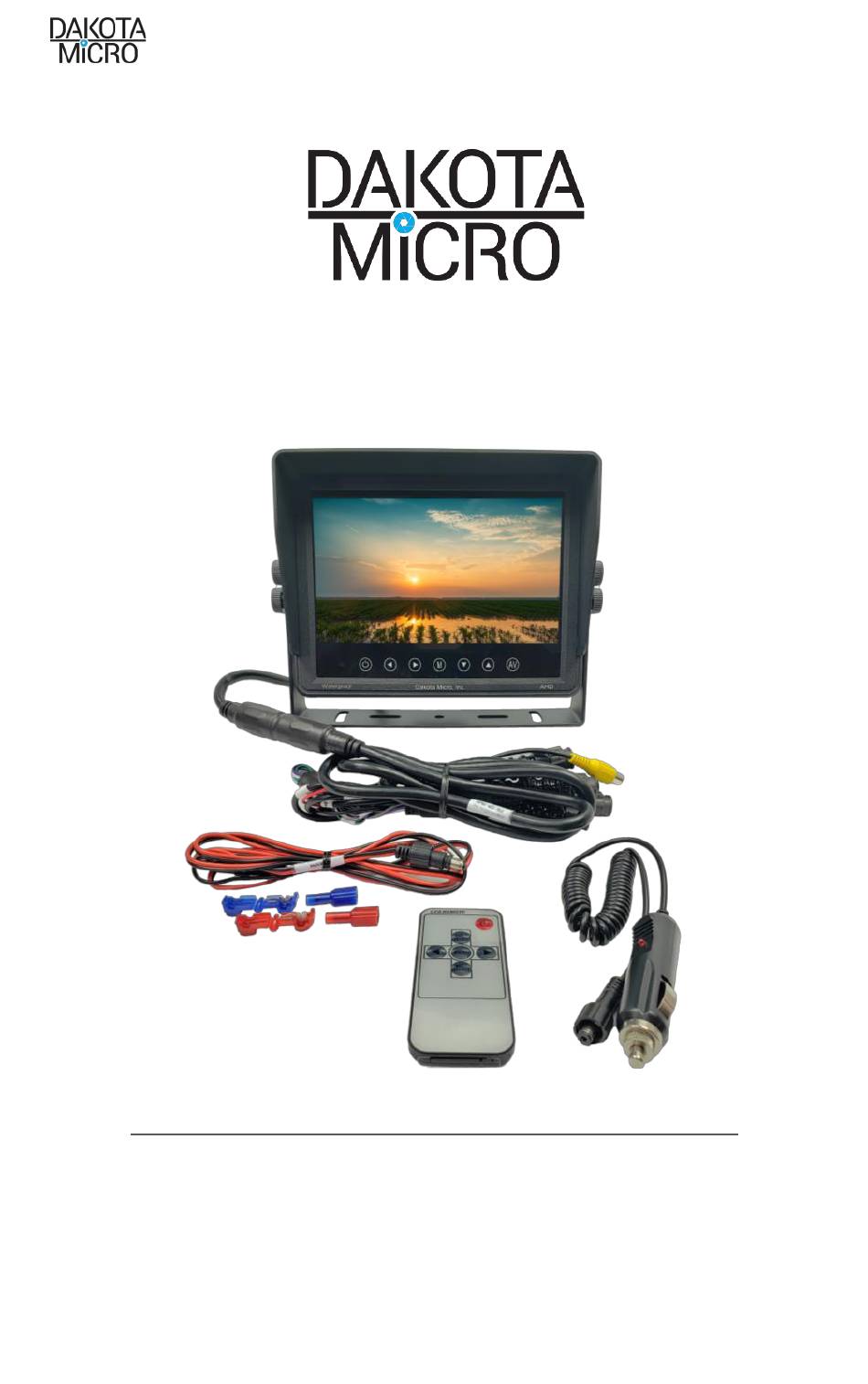

This Dakota Micro® kit includes one (1) AHD 7"
waterproof monitor and accessories.
V1
REV: 03/14/24
User Manual DM-WH7
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-WH7 and is the answer not in the manual?

Questions and answers

Related Manuals for Dakota Micro DM-WH7

Summary of Contents for Dakota Micro DM-WH7

  • Page 1 Dakota Micro® AHD 7” Waterproof Monitor DM Part Number(s) Description(s) DM-WH7 This Dakota Micro® kit includes one (1) AHD 7" waterproof monitor and accessories. Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions. AU: CNR...

  • Page 2: Table Of Contents

    User Manual DM-WH7 Table of Contents Included Components .............................. 3 Optional Components .............................. 3 Standard Features ..............................3 Monitor ................................3 Monitor Installation & Mounting ..........................4 Mounting Precautions ............................4 Universal Bracket Mounting ..........................4 Finalizing Universal Bracket Installation ......................4 Power ..................................

  • Page 3: Included Components

    User Manual DM-WH7 Included Components Description Picture Dakota Micro® AHD 7” Waterproof Monitor Dakota Micro® AHD 7" and 9" Monitor Wire Harness PN: DM-MWH Dakota Micro® AHD 7" and 9" Monitor Remote PN: DM-HRMT Dakota Micro® 7" Waterproof Monitor U-bracket and Hardware Dakota Micro®...

  • Page 4: Monitor Installation & Mounting

    2. Plug Cigarette lighter adapter into 12v power source. Hardwire Power Adapter 1. If you would like to hardwire your power supply, please contact your local Dakota Micro, Inc. dealer for available hardwire power adapters (PN: DM-HDWRE) 2. Dakota Micro hardwire power adapters have a maximum circuit capability of 5 amp.

  • Page 5: Remote Operations

    User Manual DM-WH7 Remote Operations POWER ON/OFF Decrease parameter or toggle menu settings ON/OFF Increase Parameter or toggle menu settings ON/OFF VIDEO SELECT- Manually toggles between cameras, AV1, AV2, AV3, AV4, and then back to AV1. Also, moves up within sub menus.

  • Page 6: Specifications

    User Manual DM-WH7 Brightness: Adjust the brightness of the image. Contrast: Adjust the contrast of the image. Saturation: Adjusts the saturation of the image. AUTO DIM: Turn ON/OFF auto dim Rotate: Rotate image horizontal, vertical, or both Sleep: Set timer when the monitor will go to sleep...

  • Page 7: Warnings

    8659 148 ½ Ave. SE Cayuga, ND 58013 6. Upon receipt and evaluation of product at Dakota Micro, Inc. factory, it will be established if the repair is warranty or non- warranty. Customer will be notified of any applicable charges.

  • Page 8: Consumer Limited Warranty
