DM-H9
Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
AU: CNR
User Manual

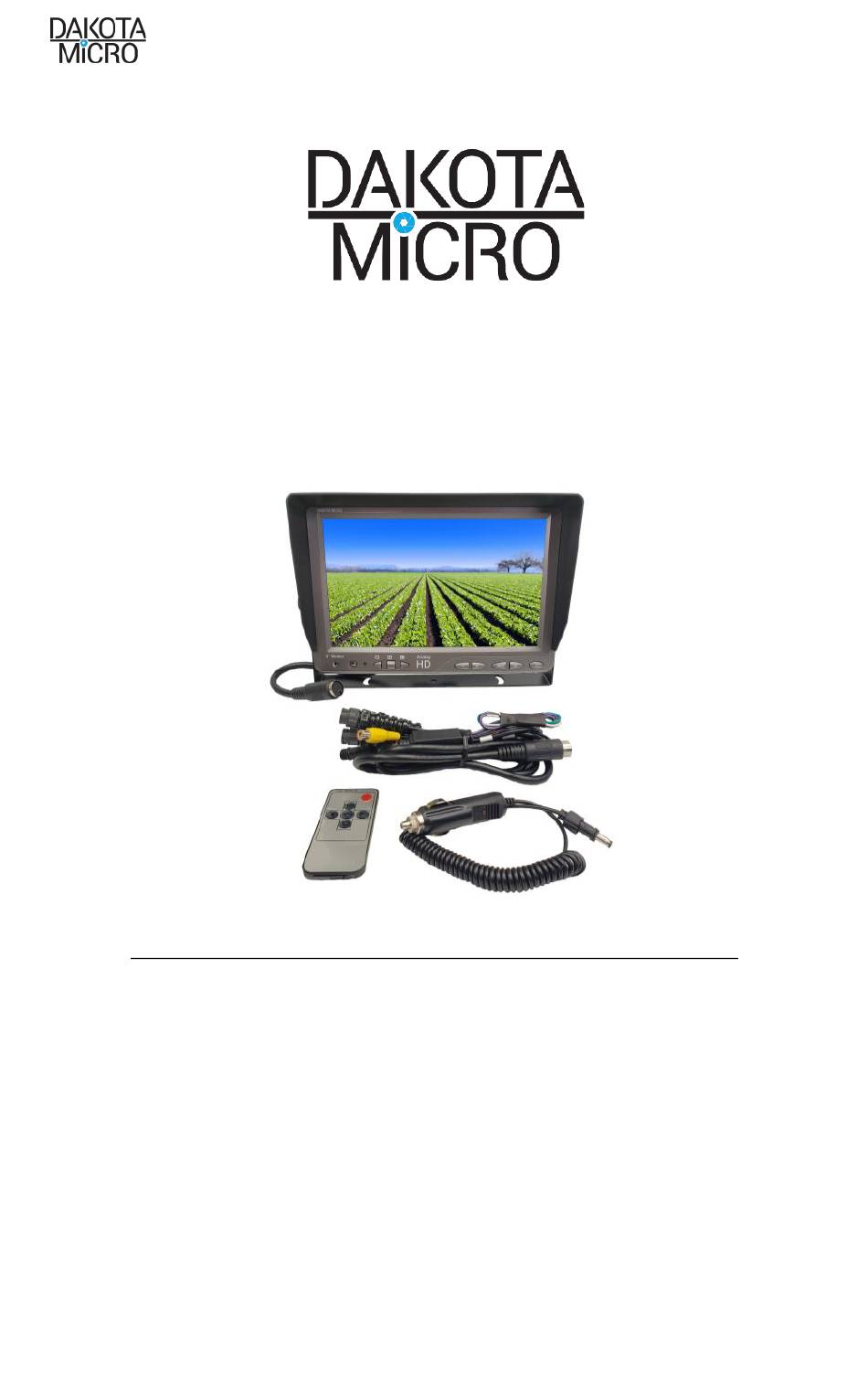

Dakota Micro® AHD 9" Monitor
BY: SJE
Description(s)
This Dakota Micro® kit includes one (1) AHD 9"
monitor and accessories.
V2.1
User Manual DM-H9
REV: 02/21/24
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Micro DM-H9
Summary of Contents for Dakota Micro DM-H9
- Page 1 Dakota Micro® AHD 9” Monitor DM Part Number(s) Description(s) DM-H9 This Dakota Micro® kit includes one (1) AHD 9" monitor and accessories. Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions. AU: CNR BY: SJE V2.1...
-
Page 2: Table Of Contents
User Manual DM-H9 Table of Contents Included Components .............................. 3 Optional Components .............................. 3 Standard Features ..............................3 Monitor ................................3 Monitor Installation & Mounting ..........................4 Mounting Precautions ............................4 Universal Bracket Mounting ..........................4 Finalizing Universal Bracket Installation ......................4 Power .................................. -
Page 3: Included Components

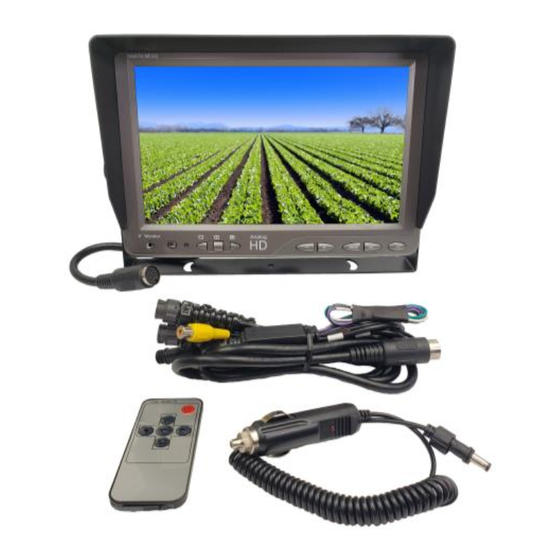

User Manual DM-H9 Included Components Description Picture Dakota Micro® AHD 9” Monitor Dakota Micro® AHD 7" and 9" Monitor Wire Harness PN: DM-MWH Dakota Micro® AHD 7" and 9" Monitor Remote PN: DM-HRMT Dakota Micro® 9" Monitor Sun Shade PN: DM-9Shade Dakota Micro®... -
Page 4: Monitor Installation & Mounting
2. Plug Cigarette lighter adapter into 12v power source. Hardwire Power Adapter 1. If you would like to hardwire your power supply, please contact your local Dakota Micro, Inc. dealer for available hardwire power adapters (PN: DM-HDWRE) 2. Dakota Micro hardwire power adapters have a maximum circuit capability of 5 amp. -
Page 5: Remote Operations
User Manual DM-H9 Remote Operations POWER ON/OFF Decrease parameter or toggle menu settings ON/OFF Increase Parameter or toggle menu settings ON/OFF VIDEO SELECT- Manually toggles between cameras, AV1, AV2, AV3, AV4, and then back to AV1. Also, moves up within sub menus. -
Page 6: Specifications
User Manual DM-H9 Guideline CH1-4: Allows user to turn ON/OFF guides. Guidelines appear only during triggered events. Car Delay CH1-4: Allows user to set duration of triggered camera on individual camera. Rotate: Allows user to rotate the whole image for all channels. -
Page 7: Warnings
8659 148 ½ Ave. SE Cayuga, ND 58013 6. Upon receipt and evaluation of product at Dakota Micro, Inc. factory, it will be established if the repair is warranty or non- warranty. Customer will be notified of any applicable charges. -
Page 8: Consumer Limited Warranty
Dakota Micro, Inc. to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro, Inc. be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro, Inc.
