DM Part Number(s)
DMRZ-H7C1
Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
AU: SJE
User Manual
RazerCam™ AHD 7" Monitor, NTSC Camera, and Cable
BY: SJE
Description(s)

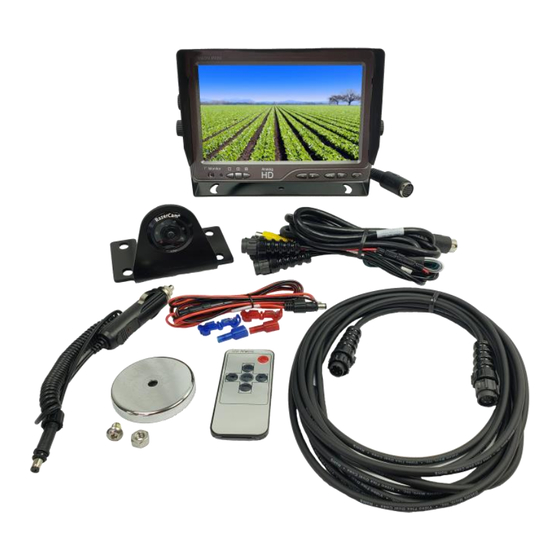

This RazerCam™ kit includes one (1) AHD 7"
monitor, one (1) AHD 170° NTSC camera, one (1)
15' shielded video flex cable, and accessories.
V1
REV: 03/14/24
User Manual DMRZ-H7C1
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Dakota Micro RazerCam DMRZ-H7C1
Summary of Contents for Dakota Micro RazerCam DMRZ-H7C1
- Page 1 User Manual DMRZ-H7C1 User Manual RazerCam™ AHD 7" Monitor, NTSC Camera, and Cable DM Part Number(s) Description(s) DMRZ-H7C1 This RazerCam™ kit includes one (1) AHD 7" monitor, one (1) AHD 170° NTSC camera, one (1) 15' shielded video flex cable, and accessories. Always read the manual prior to operating this equipment.
-
Page 2: Table Of Contents
User Manual DMRZ-H7C1 Table of Contents Included Components .............................. 4 Standard Features ..............................5 RazerCam™ Camera ............................5 Monitor ................................5 Cables ................................5 RazerCam™ Wide-Angle Camera Detail ........................5 RazerCam™ Installation ............................6 General skid-steer Camera Installation ......................6 Monitor Installation &... - Page 3 User Manual DMRZ-H7C1 Intentionally Left Blank AU: SJE BY: SJE REV: 03/14/24 Page 3 of 12...
-
Page 4: Included Components
User Manual DMRZ-H7C1 Included Components Description Picture Dakota Micro® AHD 7” Monitor Dakota Micro® AHD 7" and 9" Monitor Wire Harness PN: DM-MWH Dakota Micro® 7” Monitor U-Bracket and Hardware PN: DM-H7BRKT Dakota Micro® 7" Monitor Sun Shade PN: DM-7SHADE Dakota Micro®... -
Page 5: Standard Features
User Manual DMRZ-H7C1 Standard Features RazerCam™ Camera • True HD Resolution (720P) • 1 Year Warranty • 16:9 aspect ratio, so the image doesn’t need to be “stretched” to match monitors • Improved color and clarity over standard analog video cameras •... -
Page 6: Razercam™ Installation
3. The monitor does not interfere with the normal operation of equipment. Warning: Dakota Micro, Inc. is not responsible for any damages caused to your monitor or yourself due to the improper installation or use of a suction cup monitor mount, whether it be product sold by Dakota Micro or product purchased from another source. -
Page 7: Monitor Operations
User Manual DMRZ-H7C1 Monitor Operations Monitor Operations 1 2 3 4 5 6 7 8 Non-Functional Non-Functional Non-Functional - Key To Decrease parameter + Key To Increase parameter MENU Allows users to access the menu. Once in the menu, toggles through menu options Each button press switches between AV1, AV2, AV3, &... -
Page 8: Cable Routing & Warnings
Your skid steer kit includes one (1) 15’ power video extension cable. If you would like to purchase different or additional cable lengths, please contact your local Dakota Micro, Inc. dealer. There are any number of ways you can route your power/video extension cable from your monitor back to your camera; we will leave that up to the individual users. -
Page 9: Specifications
User Manual DMRZ-H7C1 Specifications LCD Monitor Screen Size 16:9 Digital Panel Overall Size 4.84in(123mm) (H) x 7.04in(179mm) (W) x 1.14in(29mm) (D) Weight 396g Power Input DC 10-32v Color System NTSC/PAL auto switch Operating Temp. -30°F(-20°C) ~122°F(50°C) Brightness 350cd/m Resolution (HxV) 1024(H)x600(V) Contrast 500:1... -
Page 10: Warnings
8659 148 ½ Ave. SE Cayuga, ND 58013 6. Upon receipt and evaluation of product at Dakota Micro, Inc. factory, it will be established if the repair is warranty or non- warranty. Customer will be notified of any applicable charges. -
Page 11: Consumer Limited Warranty
Dakota Micro, Inc. to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro, Inc. be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro, Inc. - Page 12 User Manual DMRZ-H7C1 8659 148½ Ave. SE. Cayuga, ND 58013 www.dakotamicro.com Management System Registered to ISO 9001 AU: SJE BY: SJE REV: 03/14/24 Page 12 of 12...
