Micsig RCP Series Quick Manual

Operation steps Operation steps
1) Connect to the oscilloscope: Set the oscilloscope input impedance to 1MΩ, connect
the probe BNC end to oscilloscope (make sure the oscilloscope is properly grounded);
2) Power the probe: Use standard adapter to power the probe. Indicator light turns
green after power on;
3) Connect the DUT: make sure that the coil plug is inserted in place and the wire or
pin under test passes through the appropriate position of the coil.
4) Power up the DUT.
5) After test, disconnect the circuit 昀椀rst, then unplug the coil.
6) Disconnect probe power.
Warranty Warranty
1) Micsig warrants the main body of this current probe for 1 year. During the warranty
period, Micsig will be responsible for free maintenance for anyfailure caused by the
quality of the product under normal use.
2) Under the following circumstances, Micsig will refuse to provide maintenance
services or charge for a fee:
a.No packaging or anti-counterfeiting label.
b.Anti-counterfeit label has been altered or blurred beyond recognition.
c.Unauthorized disassembly, such as: changing wires, dismantling internal
components, etc.
d. No sales voucher or the content of sales voucher does not match the product.
Safety Precautions Safety Precautions
※ Please use within safe voltage range.
※ The equipment connected to the probe must be reliably grounded.
※ The outer skin of the Rogowski coil should be inspected before use. If it is
damaged,stop using it.
※ Before connecting the probe to the circuit under test, make sure the circuit
undertest is turned o昀昀.
※ Please use the adapter that comes standard with the probe.
Shenzhen Micsig Technology Co., Ltd. Shenzhen Micsig Technology Co., Ltd.
Tel: +86-755-88600880 Email: sales@micsig.com Web: www.micsig.com
Add: A106 , Huafeng Robot Industrial Park, Hangcheng Rd, Bao'an,
Shenzhen, Guangdong, China, 518126
Quick Guide Quick Guide
Rogowski AC Current Probe -- RCP series Rogowski AC Current Probe -- RCP series
Overview Overview

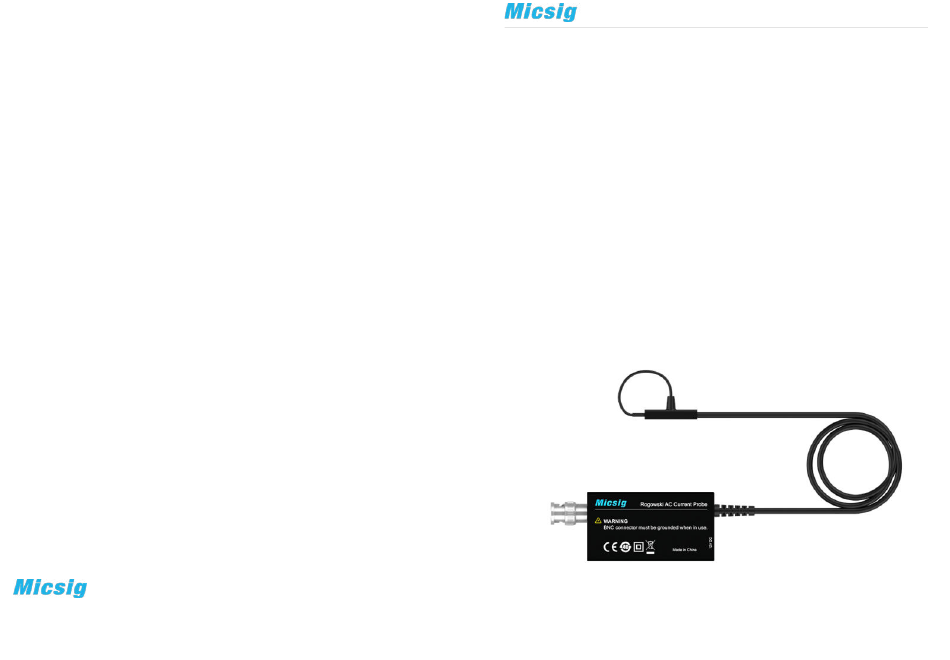

Micsig RCP series Rogowski current probe measures AC currents up to
6000Apk, max. bandwidth up to 30 MHz, withstand voltage is up to 1kVrms,
nearly zero inse爀琀ion impedance, greatly minimized the inte爀昀erence to the
DUT. A 1.6mm thin, 昀氀exible, clip-around Rogowski coil allow user easily pass
through pin leg of TO-220 semiconductor devices. With 2% accuracy (typical)
, accurately measures high-frequency and high-current signals like double-
pulse dynamic test, monitor semiconductor switch current.
Standard BNC inte爀昀ace to use on any oscilloscope, most compact 昀氀exible
design easily solved the hard-to-reach pa爀琀 issue, coil diameter suppo爀琀
customzied made to meet more test requirements.
