Micsig RCP Series Quick Manual

Operation steps
1)
Connect to the oscilloscope: Set the oscilloscope input impedance to 1MΩ, connect
the probe BNC end to oscilloscope (make sure the oscilloscope is properly grounded);
2)
Power the probe: Use standard adapter to power the probe. Indicator light turns green
after power on;
3)
Connect the DUT: make sure that the coil plug is inserted in place and the wire or pin
under test passes through the appropriate position of the coil.
4)
Power up the DUT.
5)
After test, disconnect the circuit first, then unplug the coil.
6) Disconnect probe power.
Warranty
1) Micsig warrants the main body of this current probe for 1 year.
During the warranty period, Micsig will be responsible for free maintenance for any
failure caused by the quality of the product under normal use.
2) Under the following circumstances, Micsig will refuse to provide maintenance services
or charge for a fee:
a. No packaging or anti-counterfeiting label.
b. Anti-counterfeit label has been altered or blurred beyond recognition.
c. Unauthorized disassembly, such as: changing wires, dismantling internal
components, etc.
d. No sales voucher or the content of sales voucher does not match the product.
Safety Precautions
※ Please use within safe voltage range.
※ The equipment connected to the probe must be reliably grounded.
※ The outer skin of the Rogowski coil should be inspected before use. If it is damaged,
stop using it.
※ Before connecting the probe to the circuit under test, make sure the circuit under
test is turned off.
※ Please use the adapter that comes standard with the probe.
Shenzhen Micsig Technology Co., Ltd.
Tel: +86-755-88600880 Email: sales@micsig.com
Add: A106, Huafeng Robot Industrial Park, Hangcheng Rd, Bao'an, Shenzhen, Guangdong,
China, 518126

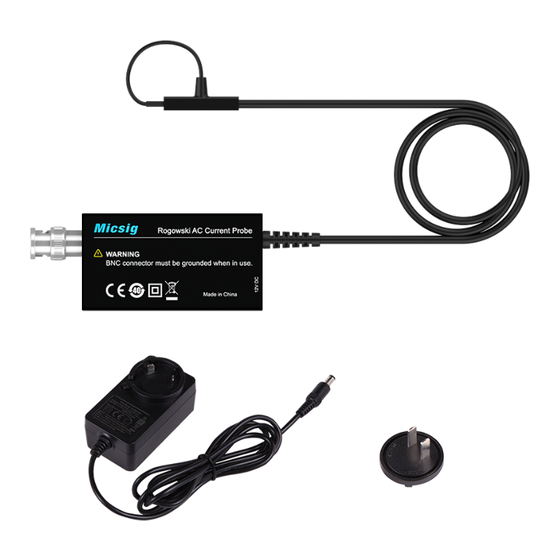

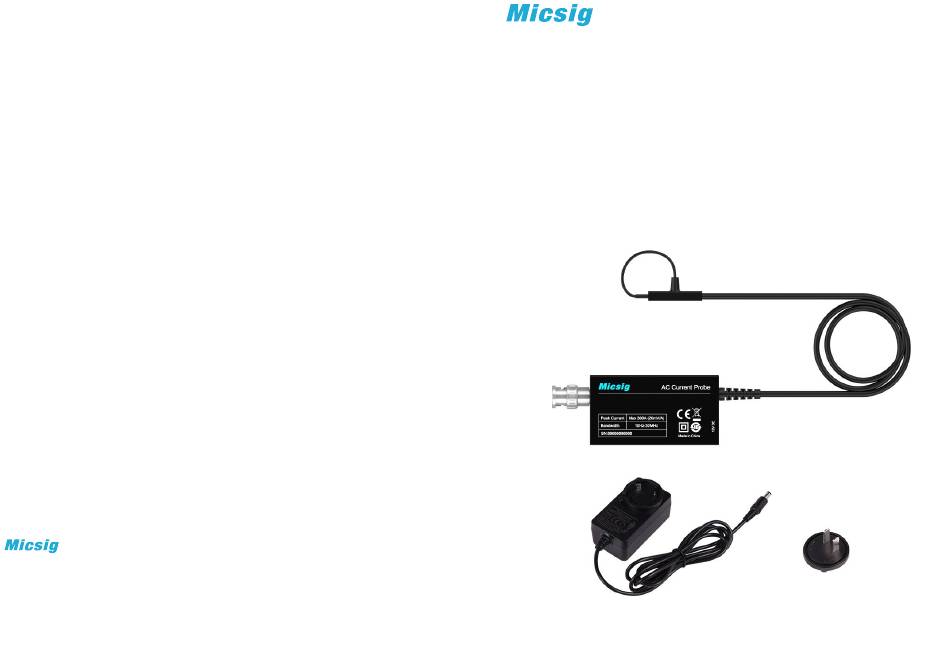

Rogowski AC Current Probe -- RCP series
Quick Guide
Overview
The RCP series Rogowski current probe measures AC currents up to
600Apk, max. bandwidth up to 30 MHz, delivers 1% typical accuracy, able
to measure high-frequency, large current signals easily and accurately.
A 1.6mm thin, flexible, clip-around Rogowski coil allow user to conduct
measurements without damaging the conductor and have no interference
to the DUT.
* Country specific adapter plug
