Capetti Elettronica WineCap WSD12-4VW User Manual

1. Description.
The WSD12-4VW is a datalogger with 4 input channels to acquire, Frequency and Temperature on vibrating wires (
), with storage functionality of samples acquired.
piezometers, crack meters
Configurable using jumpers for:

4 vibrating wires (
frequency

3 vibrating wires (
frequency

2 vibrating wires (
frequency
The desired configuration must be issued during the enrolling process.
The datalogger can be reconfigured changing the jumper's position and performing a new enroll.
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone 011.981.98.11 - Fax 011.981.98.210
e-mail info@capetti.it - web www.capetti.it

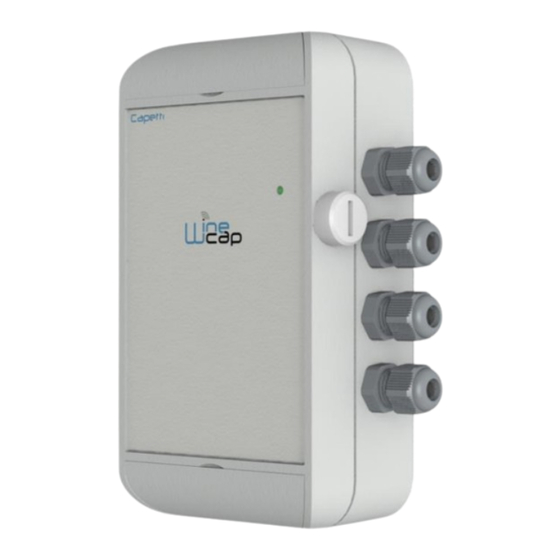

Picture 1 - Product Image
)
) and 1 temperature
) and 2 temperatures
WSD12-4VW
User Manual
extensometers,
WA0376E_WSD12-4VW_User Manual_R08
V4.6
1/10
