Dimensions
Product Numbers
VA-180GNX024P
VA-180GNX024F
With VA-ASK39.1
A B C
9.53 4.88 5.91
(242) (124) (150)
10.51 6.06 11.81
(267) (154) (300)

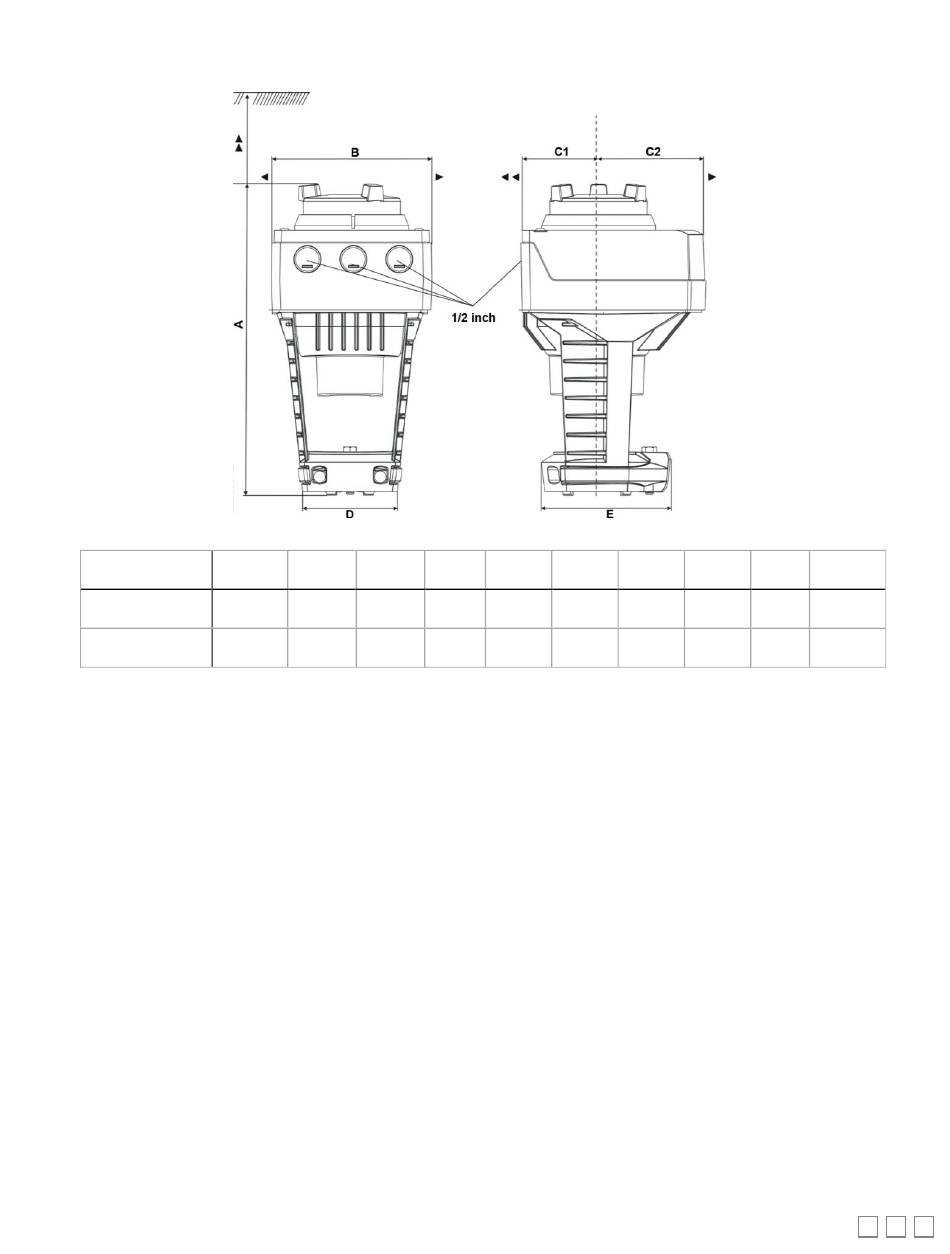

Figure 26. VA-180GN Actuators, Dimensions in Inches (Millimeters).
C1 C2 D
2.68 3.23 3.15
(68) (82) (80)
7.87 3.94
–
(200) (100)
► ►►
E
3.94 3.94 7.87
(100) (100) (200)
– – –
Weight
lbs (kg)
4.1
(1.85)
4.6
(2.08)
