F&F EPP-619 Manual page 2

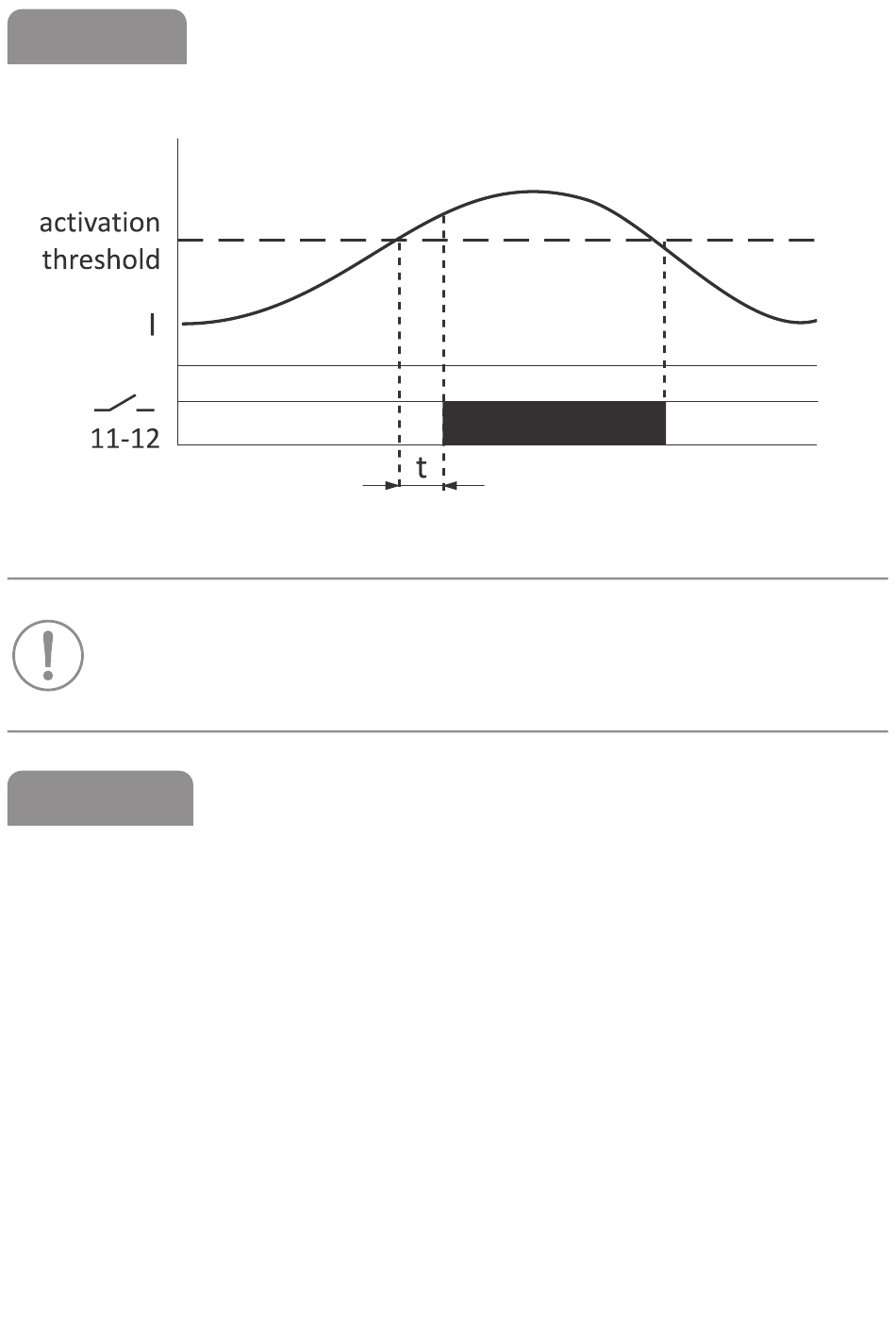

Diagram
The current of the receiver can be greater than 16 A. The
current is only limited by the cross-section of the con-
ductor threaded through the through channel.
Mounting
1. Switch off power supply.
2. Mount the relay on the rail in the control box.
3. Connect the relay power supply to terminals 1-3 as marked.
4. Pass the wire of the circuit to be measured through the thro-
ugh channel of the relay.
5. Connect the power supply circuit of the controlled consumer
in series to the relay contact (terminals 11-12).
6. On the current scale of the relay set the tripping threshold and
the tripping delay time..
- 2 -
