Creative Play WO106B Installation Instructions Manual

Heartwood cradle seat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

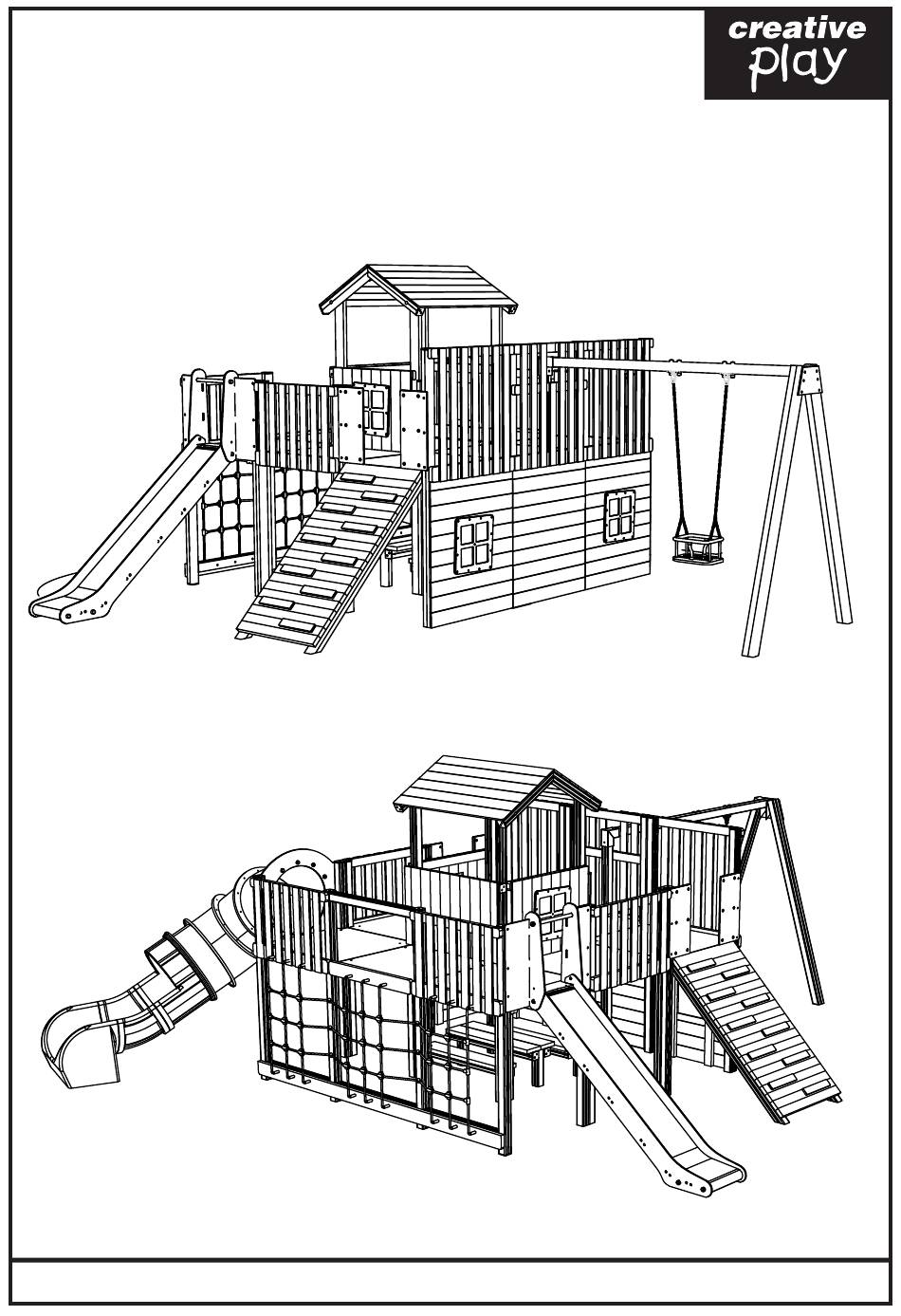

WO106B - HEARTWOOD
CRADLE SEAT
INSTALLATION INSTRUCTIONS
pg 1 of 28
23.01.2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WO106B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Play WO106B

Summary of Contents for Creative Play WO106B

  • Page 1 WO106B - HEARTWOOD CRADLE SEAT INSTALLATION INSTRUCTIONS pg 1 of 28 23.01.2024...

  • Page 2: Parts Required

    JIG1511(B) - TUBULAR SLIDE - CURVED - 1.5M WO106 - SPECIFIC PART STANDARD JIGSAW PART WO106 - SPECIFIC PART LARGE WINDOW PANEL JIG1513 - RAMP - 1.5M GUARD RAIL REF: WO106B - HEARTWOOD CRADLE SEAT pg 2 of 28 23.01.2024 REV-1 LE...
  • Page 3 WO106 - SPECIFIC PART NET TIMBER ASSEMBLY LARGE TIMBER PANEL NET ASSEMBLY WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART ROOF W0ODLANDER TABLE WOODLANDER SEATS REF: WO106B - HEARTWOOD CRADLE SEAT pg 3 of 28 23.01.2024 REV-1 LE...
  • Page 4 WO106-DDGHT SWING BRACKET STEEL BEAM ASSEMBLY WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART CRADLE SWING PLAYTEC SWING BRACKET LARGE U-SHAPED GUARD RAIL REF: WO106B - HEARTWOOD CRADLE SEAT pg 4 of 28 23.01.2024 REV-1 LE...
  • Page 5 WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106-QQ HORIZONTAL TIMBER EXTENSION PLATES WO106-HHHT WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106-II WO106-RR REF: WO106B - HEARTWOOD CRADLE SEAT pg 5 of 28 23.01.2024 REV-1 LE...
  • Page 6 WO106 - EXTRA FIXINGS WO106 - EXTRA FIXINGS WO106 - EXTRA FIXINGS POLYFIX HALVESGHT M8X80 SCREWS M12X180 CUP SQUARE BOLTS WO106 - EXTRA FIXINGS M12X160 CUP SQUARE BOLTS REF: WO106B - HEARTWOOD CRADLE SEAT pg 6 of 28 23.01.2024 REV-1 LE...

  • Page 7: Tools Required

    TOOLS REQUIRED ATTACH WO106-GG/ HH AND WO106-II TIMBERS TOGETHER USING EXTENSION PLATES / 97.M8X80CSK [X16] WO106-GG / HH WO106-II REF: WO106B - HEARTWOOD CRADLE SEAT pg 7 of 28 23.01.2024 REV-1 LE...

  • Page 8: Installation Instructions

    WO106 - FF WO106 - FF WO106 - FF STANDARD JIGSAW STANDARD JIGSAW PLATFORM FLOOR PLATFORM FLOOR WO106 - FF WO106 - FF WO106 - FF WO106 - FF REF: WO106B - HEARTWOOD CRADLE SEAT pg 8 of 28 23.01.2024 REV-1 LE...

  • Page 9: Foundation Details

    FOUNDATION DETAILS NOTE: ALL TIMBERS TO BE POSITIONED IN CENTRE OF HOLES. 6506 3510 3420 RAMP 2490 2355 RAMP 1755 TBL-B TBL-B 1155 SLIDE REF: WO106B - HEARTWOOD CRADLE SEAT pg 9 of 28 23.01.2024 REV-1 LE...
  • Page 10 FOUNDATION DETAILS REF: WO106B - HEARTWOOD CRADLE SEAT pg 10 of 28 23.01.2024 REV-1 LE...

  • Page 11: Surfacing Details

    SURFACING DETAILS = MINIMUM SPACE = SURFACE AREA 11406 7000 1240 1702 1159 2708 5172 REF: WO106B - HEARTWOOD CRADLE SEAT pg 11 of 28 23.01.2024 REV-1 LE...
  • Page 12 PLATFORM PLATFORM WO106 - HH WO106 - GG PLATFORM PLATFORM NOTE: ARROWS INDICATE BOLT DIRECTION PLATFORM 3 PLATFORM 2 PLATFORM 5 PLATFORM 4 PLATFORM 1 PLATFORM 6 REF: WO106B - HEARTWOOD CRADLE SEAT pg 12 of 28 23.01.2024 REV-1 LE...
  • Page 13 INSTALL MIDDLE PLATFORMS AS PER LAYOUT BELOW USING M12X180 [X12], M12 NYLOCS [X12] & END CAPS [X12] MIDDLE BACK PLATFORM FLOOR PLATFORM PLATFORM PLATFORM MIDDLE PLATFORM PLATFORM FLOOR PLATFORM PLATFORM MIDDLE PLATFORM FLOOR REF: WO106B - HEARTWOOD CRADLE SEAT pg 13 of 28 23.01.2024 REV-1 LE...
  • Page 14 INSTALL WO106-BB INTO THE GROUND AS PER GROUND SCREW LAYOUT WO106-BB FIX 90 SWING BRACKET TO WO106-BB USING M12X160 BOLT [X1], NYLOC [X1] AND END CAP [X1] REF: WO106B - HEARTWOOD CRADLE SEAT pg 14 of 28 23.01.2024 REV-1 LE...
  • Page 15 USING M12X160 BOLTS [X4], NYLOCS [X4], END CAPS [X4] AND M8X80 SCREWS [X2] ATTACH SWING ASSEMBLY TO 90 SWING BRACKET USING M12X160 BOLT [X1], NYLOC [X1], END CAP [X1] REF: WO106B - HEARTWOOD CRADLE SEAT pg 15 of 28 23.01.2024 REV-1 LE...
  • Page 16 PLEASE NOTE - END CAPS MAY NOT BE REQUIRED SOME ATTACHEMENT PARTS MEAN END CAPS ARE NOT REQUIRED NOTES: TIMBER SUPPORT IS CUT TO FIT AROUND THE NYLOC - CIRCLED ABOVE REF: WO106B - HEARTWOOD CRADLE SEAT pg 16 of 28 23.01.2024 REV-1 LE...
  • Page 17 WO106 SPECIFIC - LARGE GUARD RAIL WO106 SPECIFIC - LARGE GUARD RAIL JIG102 - GUARD RAIL STRAIGHT ATTACH 2X WO106-DD TIMBERS TO LEFT AND RIGHT CENTRAL UPRIGHTS USING M8X180 SCREWS [X8] REF: WO106B - HEARTWOOD CRADLE SEAT pg 17 of 28 23.01.2024 REV-1 LE...
  • Page 18 GUARD RAIL ATTACH WO106-QQ HORIZONTAL TIMBER CENTRALLY ACCROSS U-SHAPED GUARD RAIL, TO CLOSE GAP AS SHOWN BELOW USING M8X80 SCREWS [X8] WO106 - SPECIFIC PART WO106-QQ HORIZONTAL TIMBER REF: WO106B - HEARTWOOD CRADLE SEAT pg 18 of 28 23.01.2024 REV-1 LE...
  • Page 19 ATTACH 2X JIG117 AS PER STANDARD INSTRUCTIONS IN LOCATIONS SHOWN USING STANDARD PARTS STANDARD JIGSAW PART JIG117 - GUARD RAIL - WINDOW REMOVE 2X ENDCAPS (CIRCLED ABOVE) REF: WO106B - HEARTWOOD CRADLE SEAT pg 19 of 28 23.01.2024 REV-1 LE...
  • Page 20 ATTACH WO106 SPECIFIC GUARD RAIL. USING M8X80 [X8] GUARD RAIL FIX WO106 SPECIFIC ROOF TO CENTRAL UPRIGHTS USING STANDARD PARTS NOTES: ASSEMBLE AS PER STANDARD INSTALL INSTRUCTIONS (JIG103) REF: WO106B - HEARTWOOD CRADLE SEAT pg 20 of 28 23.01.2024 REV-1 LE...
  • Page 21 INSTALLATION INSTRUCTIONS MARK ROPE LOCATION ON JIG102 - GUARD RAIL AS SHOWN BELOW. CHECK LOCATION AGAINTS ROPE AND DRILL HOLES THROUGH JIG102 - GUARD RAIL REF: WO106B - HEARTWOOD CRADLE SEAT pg 21 of 28 23.01.2024 REV-1 LE...
  • Page 22 ENSURE HOLES LINE UP AND CROSS SCREW WITH M8X180 SCREWS [X6] WO106-Y INSTALL NET TIMBER ASSEMBLY TO UPRIGHTS 1178MM FROM BASE OF GUARD RAIL - USING M8X80 [X8] REF: WO106B - HEARTWOOD CRADLE SEAT pg 22 of 28 23.01.2024 REV-1 LE...
  • Page 23 * 80 SCREWS - SCREW THROUGH ASSEMBLY (FRONT) INTO PLATFORM FLOOR ** 180 SCREWS - SCREW THROUGH PLATFORM FLOOR TIMBER (BACK) INTO THE NET ASSEMBLY TIMBERS SECURE NET TO UPRIGHTS USING POLYFIX HALVES [X6] REF: WO106B - HEARTWOOD CRADLE SEAT pg 23 of 28 23.01.2024 REV-1 LE...
  • Page 24 WO106 - SPECIFIC PART W0ODLANDER TABLE SCREW W0-TABLE SEATS TO CENTRAL UPRIGHT TIMBERS ON EACH SIDE USING M8X180 SCREWS [X8]. ENSURE FLOOR TO TOP OF SEAT HEIGHT IS 350MM REF: WO106B - HEARTWOOD CRADLE SEAT pg 24 of 28 23.01.2024 REV-1 LE...
  • Page 25 FIX WO106 SPECIFIC - LARGE TIMBER PANEL TO MIDDLE UPRIGHTS FROM THE INSIDE USING M8X80 SCREWS [X4] ON EITHER SIDE OF THE PANEL (M8X80 X8 IN TOTAL) REF: WO106B - HEARTWOOD CRADLE SEAT pg 25 of 28 23.01.2024 REV-1 LE...
  • Page 26 SECURE WO106-BB TO U-SHAPE GUARD RAIL AND LARGE TIMBER PANEL USING M8X80 [X4] DOWN THE CENTRE OF THE TIMBER ATTACH WO106A-RR TO WO106-FF USING M8X180 [X4] WO106 - RR WO106 - FF WO106 - FF REF: WO106B - HEARTWOOD CRADLE SEAT pg 26 of 28 23.01.2024 REV-1 LE...
  • Page 27 INSTALLATION INSTRUCTIONS ATTACH SWING SEAT TO UNIT SWING SEAT MUST SIT NO LOWER THAN 490MM FROM UNDERSIDE OF SEAT TO GROUND LEVEL AND NO HIGHER THAN 635MM. REF: WO106B - HEARTWOOD CRADLE SEAT pg 27 of 28 23.01.2024 REV-1 LE...

  • Page 28: Additional Dimensions

    ADDITIONAL DIMENSIONS 7814 8249 REF: WO106B - HEARTWOOD CRADLE SEAT pg 28 of 28 23.01.2024 REV-1 LE...
