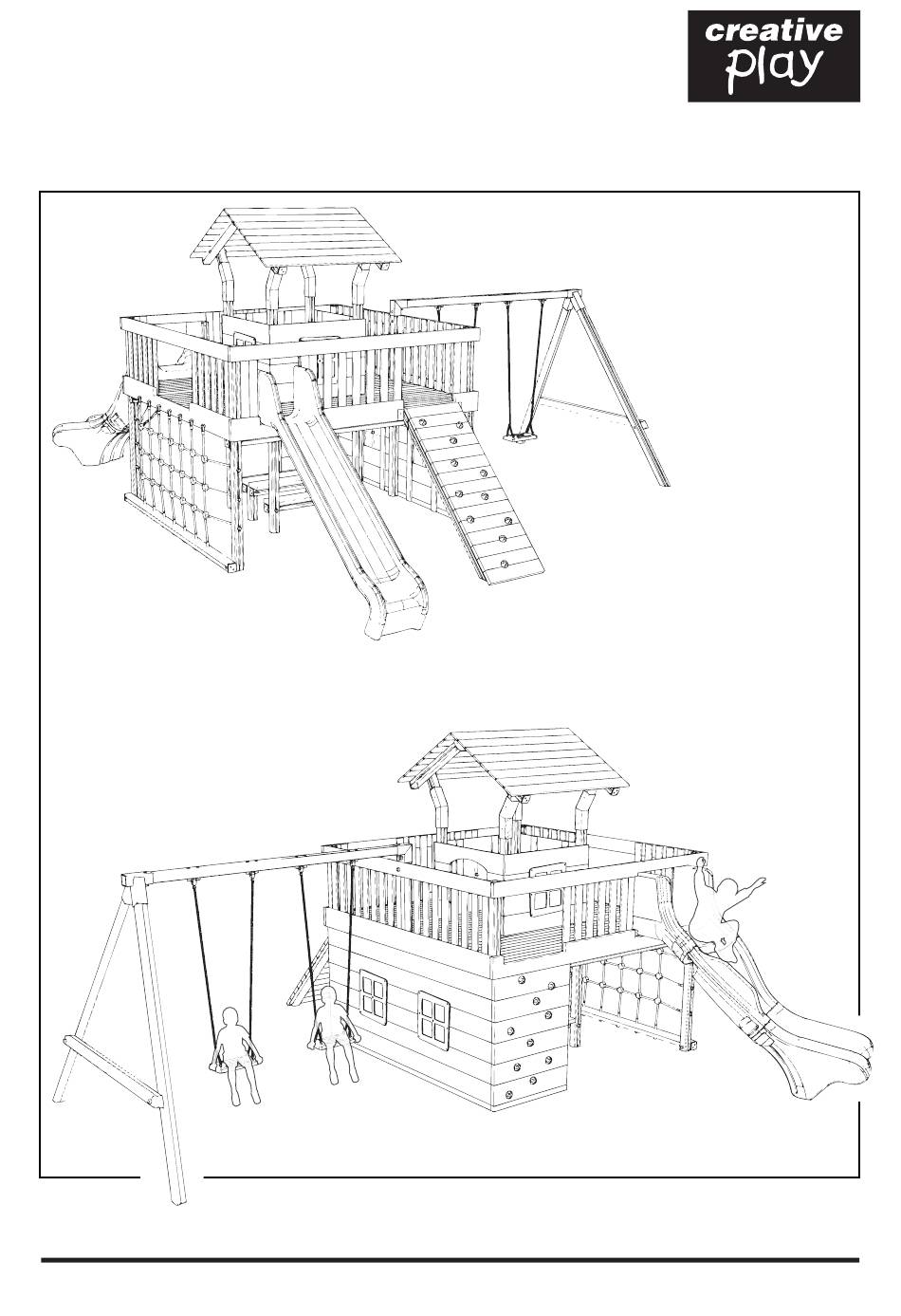

HEARTWOOD
Installation Instructions
REF: WO106 - HEARTWOOD
pg 1 of 30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heartwood WO106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Play Heartwood WO106

Summary of Contents for Creative Play Heartwood WO106

  • Page 1 HEARTWOOD Installation Instructions REF: WO106 - HEARTWOOD pg 1 of 30...

  • Page 2: Parts Required

    PARTS required (WOODLANDER (WOODLANDER (SWING BRACKET) ROOF BRACKET150º ) RAMP BRACKET) (M12 x 120 SQUARE CUP HEX BOLTS) (M12 x 170 SQUARE CUP HEX BOLTS) (M12 x 200 SQUARE CUP HEX BOLTS) x164 (FM40 ‘ Brass screws’) (M12 x 250 SQUARE CUP HEX BOLTS) x286 (FM80 ‘...
  • Page 3 TIMBERS required WO106a WO106h WO106q (90x90) (90x90) (90x90) WO106b WO106i WO106r (90x90) (90x90) (93x17.5) WO106c WO106l WO106ad (90x90) (90x90) (93x17.5) WO106d WO106m WO106af (90x90) (90x90) (218x17.5) WO106e WO106n WO106ag (90x90) (90x90) (218x17.5) WO106f WO106o WO106ah (90x90) (90x90) (218x17.5) WO106g WO110p WO110aj* (90x90) (90x90)
  • Page 4 PARTS required (CLIMBING BLOCKS) (1,5m SLIDE) (CURVED SLIDE PARTS) (SWINGS) (NET) (ENTRANCE (BACK PANEL) PANEL) (SIDES PANEL) (RAMP PANEL) (WINDOWS) REF: WO106 - HEARTWOOD pg 4 of 30...

  • Page 5: Tools Required

    TOOLS required REF: WO106 - HEARTWOOD pg 5 of 30...

  • Page 6: Foundation Details

    Foundation Details Curved Slide 2910 Swings 1.5m Ramp 1.5m Slide FIG.1 600 Concrete + 150 Soil 450 Concrete + 150 Soil REF: WO106 - HEARTWOOD pg 6 of 30...

  • Page 7: Surfacing Details

    Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: WO106 - HEARTWOOD pg 7 of 30...
  • Page 8 Installation Instructions Installation Instructions Install the timbers WO106a/b/d Follow fundation details ENSURE: Counterbore is Faced OUTSIDE Attach TIMBERS WO106h to the TIMBERS WO106a/b Using (4x 200mm) SQUARE CUP HEX BOLTS/ 6x NYLOCS / 4 RED CAPS REF: WO106 - HEARTWOOD pg 8 of 30...
  • Page 9 Installation Instructions Installation Instructions Attach TIMBERS WO106e/h to the TIMBERS WO106a/b/d Using (4x 170mm) (1x 200mm) SQUARE CUP HEX BOLTS/ 5x NYLOCS / 1 RED CAPS Install the timbers WO106m Follow fundation details REF: WO106 - HEARTWOOD pg 9 of 30...
  • Page 10 Installation Instructions Installation Instructions Attach TIMBERS WO106f/g to the TIMBERS WO106m Using (4x 200mm) SQUARE CUP HEX BOLTS/ 4x NYLOCS / 4 RED CAPS Install TIMBERS WO106c and Attach it to the TIMBER WO106f Using (4x 170mm) (1x 200mm) SQUARE CUP HEX BOLTS/ 5x NYLOCS / 1 RED CAPS REF: WO106 - HEARTWOOD pg 10 of 30...
  • Page 11 Installation Instructions Installation Instructions Attach TIMBERS WO106o to the TIMBERS WO106m and WO106ax to them Using (4x 200mm) SQUARE CUP HEX BOLTS/ 4x NYLOCS / 4 RED CAPS Attach TIMBERS WO106aj* to the TIMBERS WO106e/f/g/h Using 8x ‘FM80 Brass Screws’ REF: WO106 - HEARTWOOD pg 11 of 30...
  • Page 12 Installation Instructions Installation Instructions Attach TIMBERS WO106ai x16 to the TIMBERS WO106e/f/g/h Using 64x ‘FM80 Brass Screws’ Attach TIMBERS WO106aj/ai to the TIMBERS (x10) (x2) WO106e/f/g/h Using 52x ‘FM80 Brass Screws’ REF: WO106 - HEARTWOOD pg 12 of 30...
  • Page 13 Installation Instructions Installation Instructions Attach TIMBER WO106i to the TIMBER WO106b Using (2x 200mm) SQUARE CUP HEX BOLTS/ 2x NYLOCS / 2 RED CAPS Attach SWINGS PANEL Using 52x FM40 ‘Brass Screws’ /0B TORKTAINER x 2 / N1 TORKTAINER x2 / 2 RED CAPS WO106af WO106af WO106ag...

  • Page 14: Installation Instructions

    Installation Instructions Installation Instructions Attach SWINGS PANEL to TIMBERS WO106a/d Using 39x FM80 ‘Brass Screws’ Attach TIMBER WO106ac/aq to the TIMBER WO106a/v Using 26x FM80 ‘Brass Screws’ and 10x climbing blocks REF: WO106 - HEARTWOOD pg 14 of 30...
  • Page 15 Installation Instructions Installation Instructions Attach BACK PANEL to TIMBERS WO106m Using 16x FM80 ‘Brass Screws’ Attach SIDES PANELS to TIMBERS WO106m Using 32x FM80 ‘Brass Screws’ REF: WO106 - HEARTWOOD pg 15 of 30...
  • Page 16 Installation Instructions Installation Instructions Attach FRONT PANEL to TIMBERS WO106m Using 16x FM80 ‘Brass Screws’ REF: WO106 - HEARTWOOD pg 16 of 30...
  • Page 17 Installation Instructions Attach the PRE-ASSEMBLED HALF ROOFS Using 4x 200mm SQUARE CUP HEX BOLTS/4x NUTS / 4x RED CAPS and 8x ‘FM80 Brass Screws’ Half roof part Half roof part WO106l WO106l WO106l WO106l REF: WO106 - HEARTWOOD pg 17 of 30...
  • Page 18 Installation Instructions Attach the ROOF to the TIMBERS WO106m Using 16x ‘FM80 Brass Screws’ and ROOF METAL BRACKETS Attach the Timbers WO106o to the Timbers WO106n Using (2x 250mm) SQUARE CUP HEX BOLTS/ 2x Socket Nut REF: WO106 - HEARTWOOD pg 18 of 30...
  • Page 19 Installation Instructions Attach the Timbers WO106ay to the Timbers WO106o Using 6x “FM80 Brass Screws” Install Picnic Table Ground Level REF: WO106 - HEARTWOOD pg 19 of 30...
  • Page 20 Installation Instructions Attach the SLIDE/RAMP PANEL QTY x 12 Using 24x “FM40 Brass Screws” 8x “FM80 Brass Screws” REF: WO106 - HEARTWOOD pg 20 of 30...
  • Page 21 Installation Instructions Attach the CLIMBING WALL/ CURVED SLIDE PANEL Using 16x “FM40 Brass Screws” 8x “FM80 Brass Screws” QTY x 9 REF: WO106 - HEARTWOOD pg 21 of 30...
  • Page 22 Installation Instructions Attach the SWINGS SIDE PANEL Using 36x “FM40 Brass Screws” 8x “FM80 Brass Screws” / 1x 200mm SQUARE CUP HEX BOLT/ 1x NUTS / 1x RED CAP QTY x 18 REF: WO106 - HEARTWOOD pg 22 of 30...
  • Page 23 Installation Instructions Attach the NET SIDE PANEL Using 24x “FM40 Brass Screws” 8x “FM80 Brass Screws” QTY x 12 REF: WO106 - HEARTWOOD pg 23 of 30...
  • Page 24 Installation Instructions Attach the NET Using 20x ‘NYLOCS’ / 20x ‘RED CAPS’ Attach the RAMP to the RAMP PANEL Using 4x “FM40 Brass Screws” 4x “FM80 Brass Screws” REF: WO106 - HEARTWOOD pg 24 of 30...
  • Page 25 Installation Instructions Attach the SLIDE TO THE PLATFORM Using 2x “FM40 Brass Screws” and Slide Fittings REF: WO106 - HEARTWOOD pg 25 of 30...
  • Page 26 Installation Instructions Attach the SLIDE TO THE PLATFORM Using 2x “FM40 Brass Screws” and Slide Fittings REF: WO106 - HEARTWOOD pg 26 of 30...
  • Page 27 Installation Instructions Attach L Metal Bracket to TIMBER WO106d Using 1x 120mm SQUARE CUP HEX BOLTS / 1x NUTS / 1x RED CAPS Attach Metal TIMBER and WO106p to the brakets Using 2x 120mm SQUARE CUP HEX BOLTS / 1x NUTS / 1x RED CAPS / 4x ‘FM 80 Brass Screws’ REF: WO106 - HEARTWOOD pg 27 of 30...
  • Page 28 Installation Instructions Attach TIMBER WO106q to the TIMBERS WO106p Using 2x 200mm SQUARE CUP HEX BOLTS / 1x NUTS / 1x RED CAPS REF: WO106 - HEARTWOOD pg 28 of 30...
  • Page 29 Installation Instructions Attach the SWINGS to the SWING HANGERS REF: WO106 - HEARTWOOD pg 29 of 30...

  • Page 30: Additional Dimensions

    Additional Dimensions REF: WO106 - HEARTWOOD pg 30 of 30...
