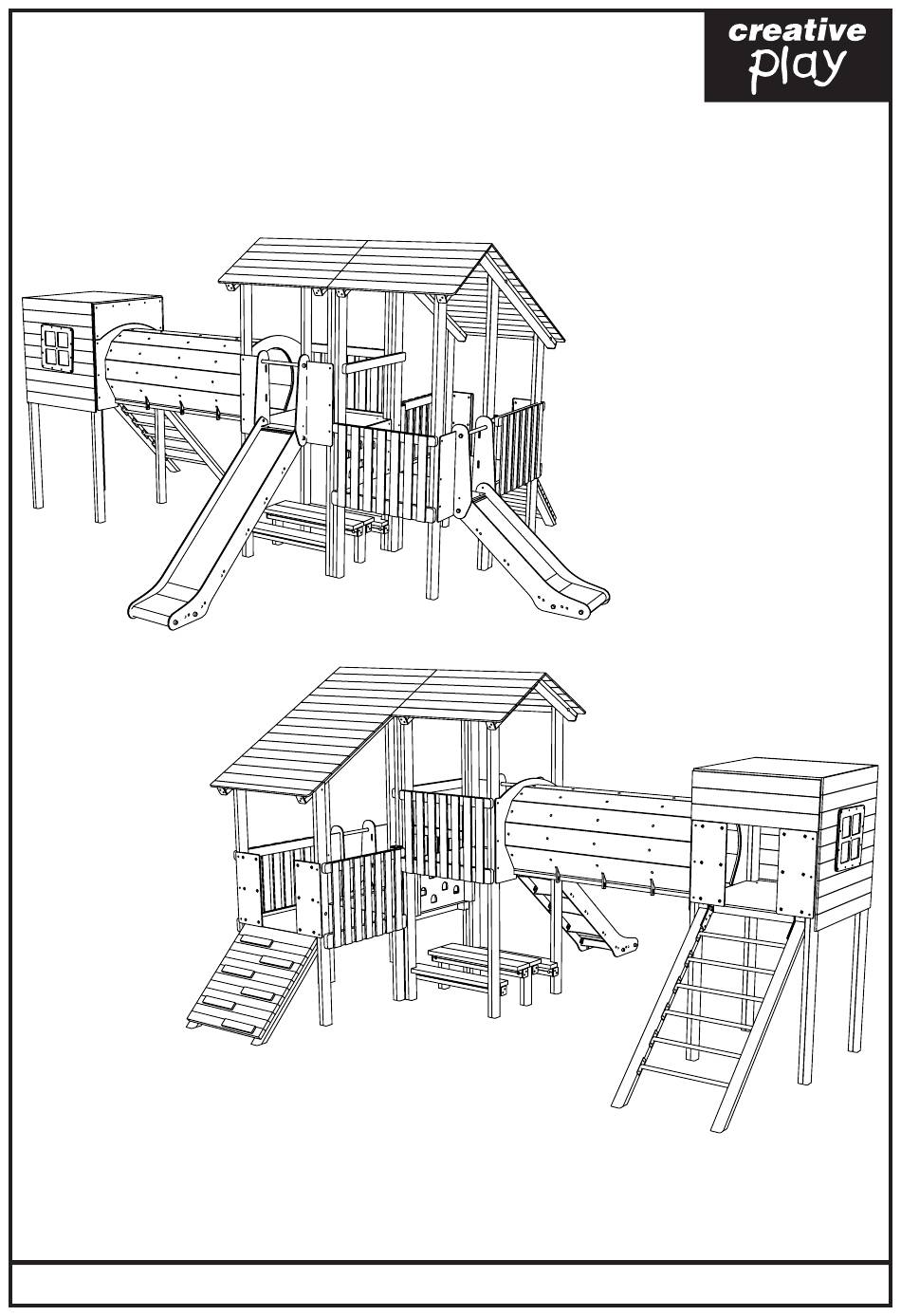

- Page 1 WO110 - SHERWOOD Installation Instructions REF: WO110 - SHERWOOD pg 1 of 18 JULY 18 - KB...
-
Page 2: Parts Required
2X WO110-C TIMBERS inc. standard fixings 4X WO110-E TIMBERS 2X WO110-D TIMBERS WO110 SPECIFIC PART WO110 SPECIFIC PART STANDARD JIGSAW PART JIG207 - CRAWLING TUBE 1.5M PLATFORM 0.9M ROOF PLATFORM REF: WO110 - SHERWOOD pg 2 of 18 JULY 18 - KB... - Page 3 WO110 SPECIFIC PART DOUBLE ROOF - EXTENDED SPLIT LEVEL CLIMBER HEXA DEN ROOF WO110 SPECIFIC PART WO110 SPECIFIC PART WO110 SPECIFIC PART WOODLANDER TABLE WOODLANDER SEATS [X2] WO110-M TIMBER REF: WO110 - SHERWOOD pg 3 of 18 JULY 18 - KB...
-
Page 4: Tools Required
PARTS REQUIRED WO110 SPECIFIC PART WO110 SPECIFIC PART WO110 - EXTRA FIXINGS WO110-L TIMBER [X5] WO110-T TIMBER M8X180 SCREWS [X8] FOR ANY STANDARD JIGSAW PART USE THE STANDARD JIGSAW INSTALLATION INSTRUCTIONS WO110 - EXTRA FIXINGS STANDARD JIGSAW PART M8X80 SCREWS [X40]... - Page 5 FOUNDATION DETAIL 1140 1110 1110 2290 1110 REF: WO110 - SHERWOOD pg 5 of 18 JULY 18 - KB...
- Page 6 SURFACING - OVERALL AREA = MINIMUM SPACE = SURFACE AREA 2536 1164 1708 2621 1802 1245 2429 2254 3472 REF: WO110 - SHERWOOD pg 6 of 18 JULY 18 - KB...
- Page 7 CONSTRUCT 3X WO110 SPECIFIC PLATFORMS SHOWN BELOW WO110-D WO110-C WO110-C WO110-E WO110-E WO110-E WO110-E WO110-A WO110-B JIG901-A JIG901-A WO110 SPECIFIC 1.5M WO110 SPECIFIC 0.9M WO110 SPECIFIC 0.9M PLATFORM ROOF PLATFORM * MIX ROOF PLATFORM * WO110 SPECIFIC 0.9M ROOF PLATFORM TIMBER EXTENTION PLATES...
-
Page 8: Front View
INSTALLATION INSTRUCTIONS INSTALL 2X WO110 SPECIFIC 0.9M PLATFORMS INTO THE GROUND UNIT SHOULD LOOK LIKE THIS INSTALL MOST STANDARD JIGSAW PARTS AS PER STANDARD INSTRUCTIONS UNIT SHOULD LOOK LIKE THIS FRONT VIEW BACK VIEW REF: WO110 - SHERWOOD pg 8 of 18... - Page 9 SOME ATTACHEMENT PARTS MEAN END CAPS ARE NOT REQUIRED NOTES: TIMBER SUPPORT IS CUT TO FIT AROUND THE NYLOC - CIRCLED ABOVE INSTALL WO-TABLE ASSEMBLY INTO THE GROUND REF: WO110 - SHERWOOD pg 9 of 18 JULY 18 - KB...
- Page 10 INSTALLATION INSTRUCTIONS SCREW W0-TABLE SEATS TO JIG1502 TIMBERS ON EACH SIDE 350MM FLOOR TO SEAT TOP HEIGHT - USING M8X180 SCREWS INSTALL WO110 SPECIFIC 1.5M PLATFORM INTO THE GROUND REF: WO110 - SHERWOOD pg 10 of 18 JULY 18 - KB...
- Page 11 INSTALLATION INSTRUCTIONS INSTALL JIG207 TO BESPOKE 1.5M PLATFORM AND JIG1511 AS PER STANDARD INSTRUCTIONS ATTACH WO110 SPECIFIC PLAYTEC COVER PANEL ABOVE CRAWLING TUBE USING M8X80 SCREWS REF: WO110 - SHERWOOD pg 11 of 18 JULY 18 - KB...
- Page 12 INSTALLATION INSTRUCTIONS ATTACH 2X WINDOW PANELS TO BESPOKE 1.5M PLATFORM USING M8X80 SCREWS SKEW SCREW 90X90 TIMBERS FROM PANELS INTO UPRIGHTS USING M8X80 SCREWS REF: WO110 - SHERWOOD pg 12 of 18 JULY 18 - KB...
- Page 13 INSTALL JIG1519 AS PER STANDARD INSTRUCTIONS USING M8X80 SCREWS SKEW SCREW LOOSE WO110-M ON RAMP SIDE LEVEL WITH OTHERS USING M8X180 SCREWS WO110-M REF: WO110 - SHERWOOD pg 13 of 18 JULY 18 - KB...
- Page 14 ATTACH 5X WO110-L TRIM PIECES AS SHOWN USING M8X80 SCREWS SCREW 1X ROOF ASSEMBLY B AND LARGE ROOF SECTION TOGETHER USING M8X80 SCREWS REF: WO110 - SHERWOOD pg 14 of 18 JULY 18 - KB...
- Page 15 INSTALLATION INSTRUCTIONS SCREW 1X ROOF ASSEMBLY B AND ROOF ASSEMBLY B AS PER STANDARD INSTRUCTIONS POSITION ROOF SECTION INTO PLACE REF: WO110 - SHERWOOD pg 15 of 18 JULY 18 - KB...
- Page 16 INSTALLATION INSTRUCTIONS ATTACH ASSEMBLED ROOF TO PLATFORM UPRIGHTS AS PER STANDARD INSTRUCTIONS SCREW 1X ROOF ASSEMBLY B AND LARGE ROOF SECTION TOGETHER USING M8X80 SCREWS REF: WO110 - SHERWOOD pg 16 of 18 JULY 18 - KB...
- Page 17 INSTALLATION INSTRUCTIONS ATTACH HEXA DEN ROOF TO DEN PLATFORM UPRIGHTS USING M8X80 SCREWS INSTALL SPLIT LEVEL CLIMBER AND BARRIER (WO110-T) IN LINE WITH JIG102 USING M8X80 AND M8X180 SCREWS REF: WO110 - SHERWOOD pg 17 of 18 JULY 18 - KB...
-
Page 18: Additional Measurements
ADDITIONAL MEASUREMENTS REF: WO110 - SHERWOOD pg 18 of 18 JULY 18 - KB...
