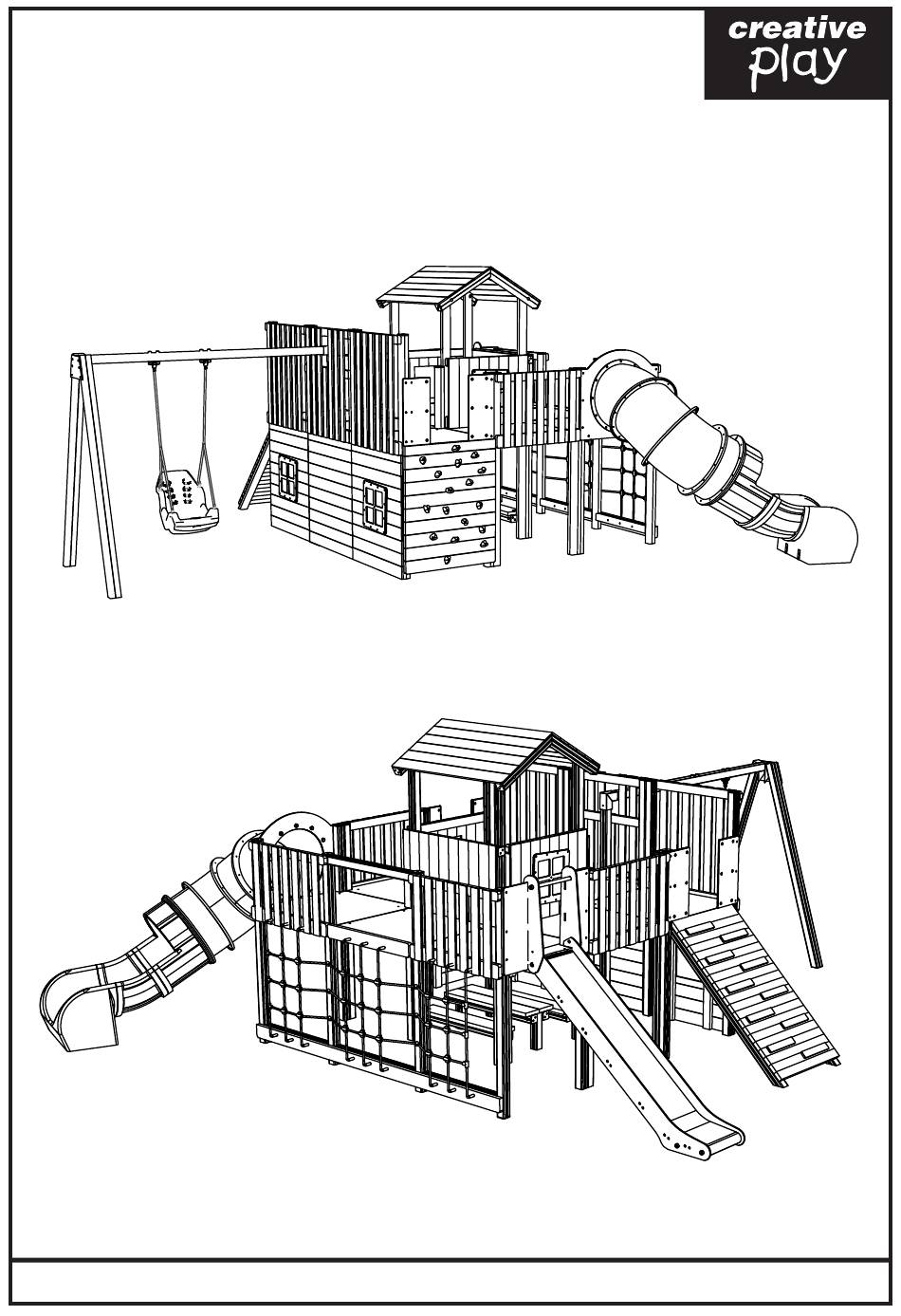

WO106C - HEARTWOOD
MIRAGE SEAT
INSTALLATION INSTRUCTIONS
pg 1 of 28
23.01.2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WO106C-HEARTWOOD MIRAGE SEAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Play WO106C-HEARTWOOD MIRAGE SEAT

Summary of Contents for Creative Play WO106C-HEARTWOOD MIRAGE SEAT

  • Page 1 WO106C - HEARTWOOD MIRAGE SEAT INSTALLATION INSTRUCTIONS pg 1 of 28 23.01.2024...

  • Page 2: Parts Required

    PARTS REQUIRED FOR ANY STANDARD JIGSAW PARTS USE THE STANDARD JIGSAW INSTALLATION INSTRUCTIONS. STANDARD JIGSAW PART STANDARD JIGSAW PART STANDARD JIGSAW PART JIGSAW FLOOR ASSEMBLY JIG117 - GUARD RAIL - WINDOW JIG1515 - CLIMBING PANEL WITH BLOCKS - 1.5M STANDARD JIGSAW PART STANDARD JIGSAW PART STANDARD JIGSAW PART JIG1511 - SLIDE - 1.5M...
  • Page 3 PARTS REQUIRED WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART MIDDLE PLATFORM FLOORGHT MIDDLE BACK PLATFORM FLOOR LARGE GUARD RAIL WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART NET TIMBER ASSEMBLY LARGE TIMBER PANEL NET ASSEMBLY WO106 - SPECIFIC PART WO106 - SPECIFIC PART...
  • Page 4 PARTS REQUIRED WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106-YGHT WO106-CCGHT W0106-BB WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106-DDGHT SWING BRACKET STEEL BEAM ASSEMBLY WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART PLAYTEC SWING BRACKET MIRAGE SWING...
  • Page 5 PARTS REQUIRED WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106-GGHT WO106-EE WO106-FFT WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106-QQ HORIZONTAL TIMBER EXTENSION PLATES WO106-HHHT WO106 - SPECIFIC PART WO106 - SPECIFIC PART WO106-II WO106-RR REF: WO106A - HEARTWOOD FLAT SEAT...
  • Page 6 PARTS REQUIRED WO106 - EXTRA FIXINGS WO106 - EXTRA FIXINGS WO106 - EXTRA FIXINGS M12 NYLOCS COVERED ENDS M8X180 SCREWSGHT X138 WO106 - EXTRA FIXINGS WO106 - EXTRA FIXINGS WO106 - EXTRA FIXINGS POLYFIX HALVESGHT M8X80 SCREWS M12X180 CUP SQUARE BOLTS WO106 - EXTRA FIXINGS M12X160 CUP SQUARE BOLTS REF: WO106A - HEARTWOOD FLAT SEAT...

  • Page 7: Tools Required

    TOOLS REQUIRED ATTACH WO106-GG/ HH AND WO106-II TIMBERS TOGETHER USING EXTENSION PLATES / 97.M8X80CSK [X16] WO106-GG / HH WO106-II REF: WO106A - HEARTWOOD FLAT SEAT pg 7 of 28 23.01.2024 REV-1 LE...

  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS ATTACH STANDARD JIGSAW PLATFORM FLOOR AS PER STANDARD JIGSAW INSTRUCTIONS PLATFORM 1 PLATFORM 2 WO106 - EE WO106 - EE WO106 - EE WO106 - EE STANDARD JIGSAW PLATFORM FLOOR STANDARD JIGSAW PLATFORM FLOOR WO106 - FF WO106 - FF WO106 - FF WO106 - FF PLATFORM 3...

  • Page 9: Foundation Details

    FOUNDATION DETAILS NOTE: ALL TIMBERS TO BE POSITIONED IN CENTRE OF HOLES. 6506 3510 3420 RAMP 2490 2355 RAMP 1755 TBL-B TBL-B 1155 SLIDE REF: WO106A - HEARTWOOD FLAT SEAT pg 9 of 28 23.01.2024 REV-1 LE...
  • Page 10 FOUNDATION DETAILS REF: WO106A - HEARTWOOD FLAT SEAT pg 10 of 28 23.01.2024 REV-1 LE...

  • Page 11: Surfacing Details

    SURFACING DETAILS = MINIMUM SPACE = SURFACE AREA 11406 7000 1240 1702 1159 2708 5172 REF: WO106A - HEARTWOOD FLAT SEAT pg 11 of 28 23.01.2024 REV-1 LE...
  • Page 12 INSTALLATION INSTRUCTIONS INSTALL PLATFORMS AS PER LAYOUT BELOW USING STANDARD JIGSAW PLATFORM INSTRUCTIONS USING M12X180 [X16], M12 NYLOCS [X16] & END CAPS [X16] WO106 - EE WO106 - EE WO106 - EE WO106 - EE PLATFORM PLATFORM WO106 - GG WO106 - HH PLATFORM PLATFORM...
  • Page 13 INSTALLATION INSTRUCTIONS INSTALL MIDDLE PLATFORMS AS PER LAYOUT BELOW USING M12X180 [X12], M12 NYLOCS [X12] & END CAPS [X12] MIDDLE BACK PLATFORM FLOOR PLATFORM PLATFORM PLATFORM MIDDLE PLATFORM PLATFORM FLOOR PLATFORM PLATFORM MIDDLE PLATFORM FLOOR REF: WO106A - HEARTWOOD FLAT SEAT pg 13 of 28 23.01.2024 REV-1 LE...
  • Page 14 INSTALLATION INSTRUCTIONS INSTALL WO106-BB INTO THE GROUND AS PER GROUND SCREW LAYOUT WO106-BB FIX 90 SWING BRACKET TO WO106-BB USING M12X160 BOLT [X1], NYLOC [X1] AND END CAP [X1] REF: WO106A - HEARTWOOD FLAT SEAT pg 14 of 28 23.01.2024 REV-1 LE...
  • Page 15 INSTALLATION INSTRUCTIONS ATTACH WO106-CC TO SWING METAL SUPPORT BEAM ASSEMBLY USING M12X160 BOLTS [X4], NYLOCS [X4], END CAPS [X4] AND M8X80 SCREWS [X2] ATTACH SWING ASSEMBLY TO 90 SWING BRACKET USING M12X160 BOLT [X1], NYLOC [X1], END CAP [X1] REF: WO106A - HEARTWOOD FLAT SEAT pg 15 of 28 23.01.2024 REV-1 LE...
  • Page 16 INSTALLATION INSTRUCTIONS INSTALL ALL STANDARD JIGSAW PLAY PARTS SHOWN BELOW AS PER STANDARD INSTRUCTIONS - PLEASE NOTE PERVIOUS PRODUCT VISIUAL USED BELOW. ROPE HAS BEEN REPLACED WITH PLAYTECH SIDES. VIEW ONE JIG1511(B) JIG1513 JIG1511 JIG1511(B) JIG1515 VIEW TWO PLEASE NOTE - END CAPS MAY NOT BE REQUIRED SOME ATTACHEMENT PARTS MEAN END CAPS ARE NOT REQUIRED NOTES: TIMBER SUPPORT IS CUT TO FIT AROUND THE NYLOC - CIRCLED ABOVE...
  • Page 17 INSTALLATION INSTRUCTIONS INSTALL GUARD RAILS AS PER STANDARD INSTUCTIONS AND LOCATIONS SHOWN USING M8X80 [X8] FOR EACH GUARD RAIL. UNIT SHOULD LOOK LIKE THIS. JIG102 - GUARD RAIL STRAIGHT JIG102 - GUARD RAIL STRAIGHT JIG102 - GUARD RAIL STRAIGHT WO106 SPECIFIC - LARGE GUARD RAIL WO106 SPECIFIC - LARGE GUARD RAIL JIG102 - GUARD RAIL STRAIGHT ATTACH 2X WO106-DD TIMBERS TO LEFT AND RIGHT CENTRAL UPRIGHTS...
  • Page 18 INSTALLATION INSTRUCTIONS INSTALL U-SHAPED GUARD RAIL TO WO106-DD USING M8X80 SCREWS [X8] U-SHAPED GUARD RAIL ATTACH WO106-QQ HORIZONTAL TIMBER CENTRALLY ACCROSS U-SHAPED GUARD RAIL, TO CLOSE GAP AS SHOWN BELOW USING M8X80 SCREWS [X8] WO106 - SPECIFIC PART WO106-QQ HORIZONTAL TIMBER REF: WO106A - HEARTWOOD FLAT SEAT pg 18 of 28 23.01.2024 REV-1 LE...
  • Page 19 INSTALLATION INSTRUCTIONS ATTACH 2X JIG117 AS PER STANDARD INSTRUCTIONS IN LOCATIONS SHOWN ATTACH 2X JIG117 AS PER STANDARD INSTRUCTIONS IN LOCATIONS SHOWN USING STANDARD PARTS STANDARD JIGSAW PART JIG117 - GUARD RAIL - WINDOW REMOVE 2X ENDCAPS (CIRCLED ABOVE) REF: WO106A - HEARTWOOD FLAT SEAT pg 19 of 28 23.01.2024 REV-1 LE...
  • Page 20 INSTALLATION INSTRUCTIONS ATTACH WO106 SPECIFIC GUARD RAIL. USING M8X80 [X8] GUARD RAIL FIX WO106 SPECIFIC ROOF TO CENTRAL UPRIGHTS USING STANDARD PARTS NOTES: ASSEMBLE AS PER STANDARD INSTALL INSTRUCTIONS (JIG103) REF: WO106A - HEARTWOOD FLAT SEAT pg 20 of 28 23.01.2024 REV-1 LE...
  • Page 21 INSTALLATION INSTRUCTIONS MARK ROPE LOCATION ON JIG102 - GUARD RAIL AS SHOWN BELOW. CHECK LOCATION AGAINTS ROPE AND DRILL HOLES THROUGH JIG102 - GUARD RAIL REF: WO106A - HEARTWOOD FLAT SEAT pg 21 of 28 23.01.2024 REV-1 LE...
  • Page 22 INSTALLATION INSTRUCTIONS INSTALL WO106-Y TIMBER INBETWEEN GUARD RAIL AND PLATFORM FLOOR TIMBER ENSURE HOLES LINE UP AND CROSS SCREW WITH M8X180 SCREWS [X6] WO106-Y INSTALL NET TIMBER ASSEMBLY TO UPRIGHTS 1178MM FROM BASE OF GUARD RAIL - USING M8X80 [X8] REF: WO106A - HEARTWOOD FLAT SEAT pg 22 of 28 23.01.2024 REV-1 LE...
  • Page 23 INSTALLATION INSTRUCTIONS ATTACH NET TO PLATFORM FLOORS AND NET TIMBER ASSEMBLY USING M12 NYLOCS [X15], COVERED ENDS [X15], M8X80* SCREWS [X4] AND M8X180** SCREWS [X4] M8X180 SCREWS NOTES: * 80 SCREWS - SCREW THROUGH ASSEMBLY (FRONT) INTO PLATFORM FLOOR ** 180 SCREWS - SCREW THROUGH PLATFORM FLOOR TIMBER (BACK) INTO THE NET ASSEMBLY TIMBERS SECURE NET TO UPRIGHTS USING POLYFIX HALVES [X6] REF: WO106A - HEARTWOOD FLAT SEAT...
  • Page 24 INSTALLATION INSTRUCTIONS INSTALL WOODLANDER TABLE INTO THE GROUND WOODLANDER TABLE WO106 - SPECIFIC PART W0ODLANDER TABLE SCREW W0-TABLE SEATS TO CENTRAL UPRIGHT TIMBERS ON EACH SIDE USING M8X180 SCREWS [X8]. ENSURE FLOOR TO TOP OF SEAT HEIGHT IS 350MM REF: WO106A - HEARTWOOD FLAT SEAT pg 24 of 28 23.01.2024 REV-1 LE...
  • Page 25 INSTALLATION INSTRUCTIONS ATTACH LARGE WINDOW PANELS TO BACK LEFT & RIGHT UPRIGHT SECTIONS USING M8X80 SCREWS [X6] ON EITHER SIDE OF EACH PANEL (M8X80 X24 IN TOTAL) FIX WO106 SPECIFIC - LARGE TIMBER PANEL TO MIDDLE UPRIGHTS FROM THE INSIDE USING M8X80 SCREWS [X4] ON EITHER SIDE OF THE PANEL (M8X80 X8 IN TOTAL) REF: WO106A - HEARTWOOD FLAT SEAT pg 25 of 28 23.01.2024 REV-1 LE...
  • Page 26 INSTALLATION INSTRUCTIONS SECURE WO106-BB TO U-SHAPE GUARD RAIL AND LARGE TIMBER PANEL USING M8X80 [X4] DOWN THE CENTRE OF THE TIMBER ATTACH WO106A-RR TO WO106-FF USING M8X180 [X4] WO106 - RR WO106 - FF WO106 - FF REF: WO106A - HEARTWOOD FLAT SEAT pg 26 of 28 23.01.2024 REV-1 LE...
  • Page 27 INSTALLATION INSTRUCTIONS ATTACH SWING SEAT TO UNIT SWING SEAT MUST SIT NO LOWER THAN 490MM FROM UNDERSIDE OF SEAT TO GROUND LEVEL AND NO HIGHER THAN 635MM. REF: WO106A - HEARTWOOD FLAT SEAT pg 27 of 28 23.01.2024 REV-1 LE...

  • Page 28: Additional Dimensions

    ADDITIONAL DIMENSIONS 8249 7812 REF: WO106A - HEARTWOOD FLAT SEAT pg 28 of 28 23.01.2024 REV-1 LE...
