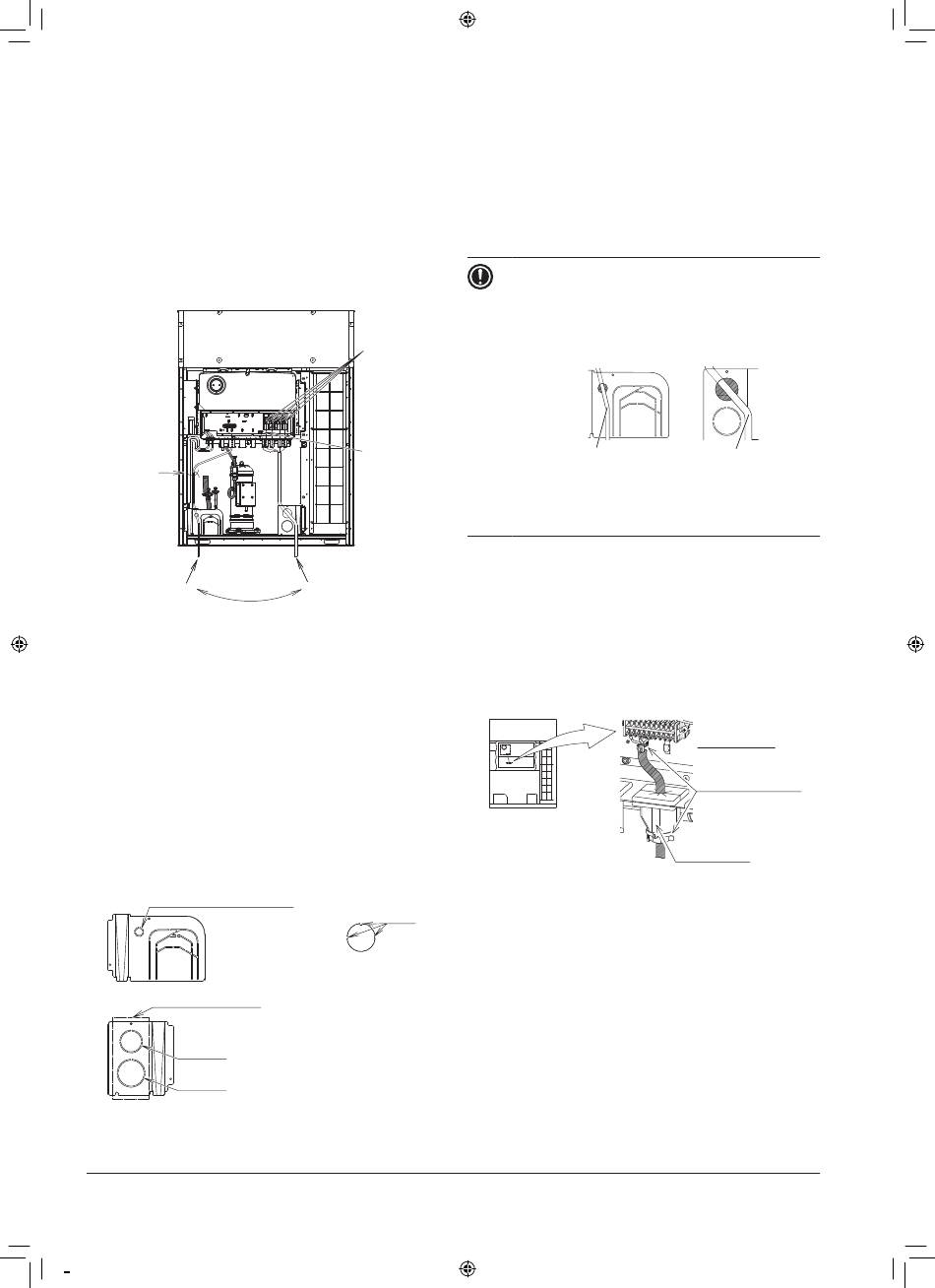

Referring to the figure below, secure and wire the
•
power and transmission wiring using the included
clamp.
Wire so that the ground wiring does not come into
•
contact with the compressor lead wiring. If they
touch, this may have an adverse effect on other
devices.
The transmission wiring must be at least 50 mm
•
away from the power wiring.
Route wiring so that it does not come into contact
•
with the high-temperature pipes (indicated by the
hatching in the figure below).
4
3
1 Power/ground wires
2 Clear over 50 mm
3 Transmission wiring
4 Clamp (accessory)
5 Power wiring
6 Ground wire
Precautions when cutting the slit holes
Open the slit holes with a cutting nippers or similar tool.
•
Open an appropriate hole as needed.
•
After cutting the slit holes, it is recommended to
•
remove burrs in the slit holes and paint the edges
and areas around the edges using the repair paint to
prevent rusting.
Slit hole (Transmission line)
Ø27 mm
Slit hole (Power line)
Ø65 mm
Ø80 mm
01_EN_3P748230-1.indd 35
5
6
1
2
Burr
Power line: Open a slit hole and connect it using a
•
conduit.
Choose an appropriate slit hole for conduit size
suitable for the power and ground line to be used.
Transmission line: Connect it using a conduit in the
•
slit hole.
When passing electrical wiring through the slit holes,
•
protect the wiring with a conduit or bushings, making
sure not to damage the wiring.
NOTICE
After passing the wiring, be sure to fill any
•
gap (indicated by the hatching in the figure
below) with sealing material (field supply) to
prevent small animals and dust from entering.
Transmission line
After wiring work is completed, check to make
•
sure there are no loose connections among the
electrical parts in the electrical components box.

12.6 Connection of wiring to terminals

This chapter gives an explanation how to route and
connect the wiring within the unit.
Transmission wiring
Pass the transmission wiring through the rubber
•
sleeve and fix with a clamp to prevent water and dust
from entering the electrical component box.
Power line
In the electrical
component box
Clamp (accessories)
Rubber sleeve
