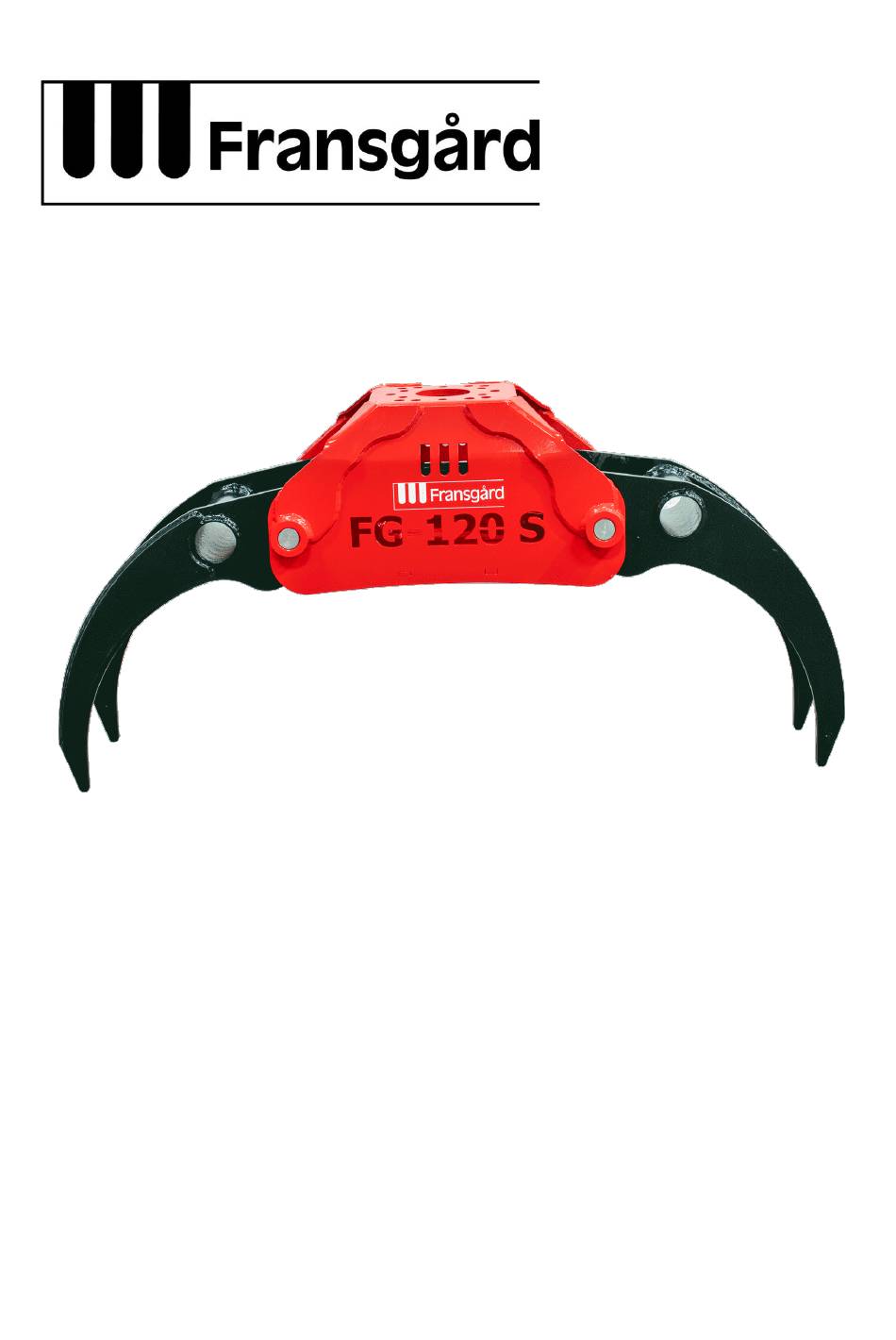

  • Page 1 Manual FG-120 Grapple FG-120S...
  • Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132, Fredbjerg DK - 9640 Farsø Phone: +45 98 63 21 22 www.fransgard.dk mail@fransgard.dk...
  • Page 3: Table Of Contents

    Replacement of hydraulic hoses ............ 6 Ordering spare parts ..............6 Disposal of the machine ..............6 Spare parts ..................8 TECHNICAL DATA of the grapple FG-120 / FG-120S Cylinder diameter ..............80 mm Cylinder closing force ........ 70 kN / 180 bar (7000 kg) Working pressure, max.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS  WARNING! Please pay special attention to all safety instructions labelled with this . sign They are extremely important to read. 1. Become familiar with the instruction manual, carefully read through the safety regulations. Before using the grapple, the user (the person who will be operating the grapple) must be familiar with this Instruction Manual, i.e.
  • Page 5: Safety In Use

     SECURITY, PERSON!!! Working in loud noisy environments for long periods of time can lead to hearing damage or even deafness. The noise level depends on the tractor's cabin insulation, so wear appropriate hearing protection if necessary. Avoid physical contact with the oil during maintenance/repair; therefore, wear gloves. ...
  • Page 6: Coupling To Tractor

    COUPLING The grapple must be in a normal position, i.e., supported on a flat, solid surface, resting on the claw. Once this is ensured, the customisation happens as follows: 1. Drive carefully to the grapple so that it does not tip over during installation 2.
  • Page 7: Warning

     WARNING! Always be especially cautious in hilly terrain! In such situations, the forest grab should be immediately lowered so that the logs are always close to the ground. Otherwise, the logs hanging in the air, due to the floating position of the locking pin, can swing violently to the side, posing a significant risk of the tractor tipping over.
  • Page 8: Hydraulics

    HYDRAULICS Hydraulic hoses, pipes and couplings should be checked from time to time for leaks, breaks or signs of leakage. To avoid major damage, replace worn and broken parts immediately. When installing hydraulic components, it is important that hoses are cleaned of dust, rubber residue, etc.
  • Page 11 Vare nr. Antal Bemærkninger Part No. Quantity Remarks Teil Nr. Anzahl Bemerkung No.de pièce Nombre Description Description Bezeichnung Désignation Remarques 10420 Hovedramme Main frame Hauptrahmen Châssis principal 10424 Tang højre Tong right Zange R. Demi-mâchoire de grappin, droite 10422 Tang venstre Tong left Zange L.
