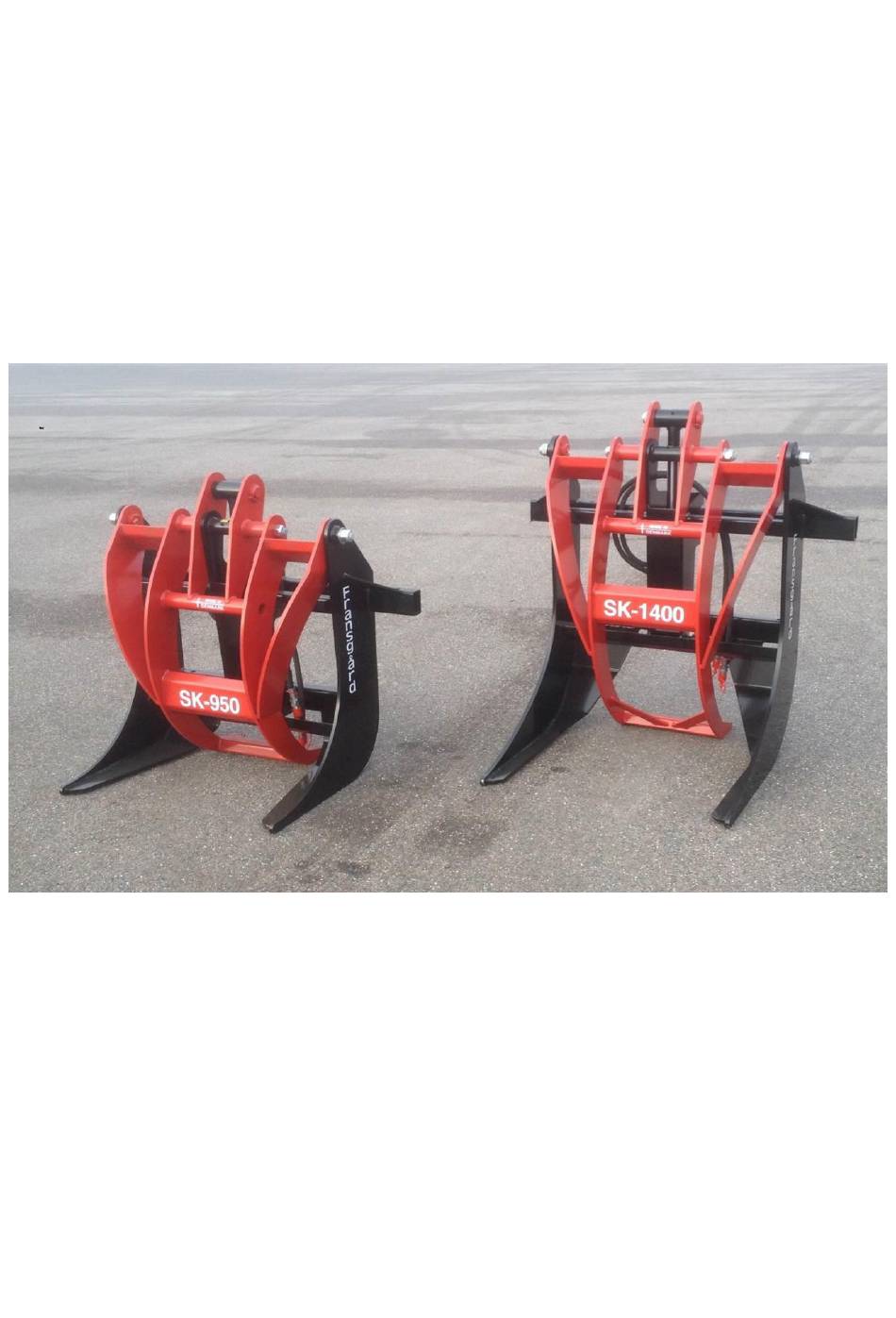

- Page 1 Fransgård Manual SK-950 Forestry grapple SK-1400...
- Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132, Fredbjerg DK - 9640 Farsø Telefon: +45 98 63 21 22 Fax: +45 98 63 18 65 www.fransgard.dk mail@fransgard.dk...
-
Page 3: Table Of Contents
Renewal of hydraulic hoses ............. 6 Ordering spare parts ................ 6 Storage ..................... 6 Spare part list ................... 8 TECHNICAL DATA forestry grapple SK-950/1400 Cylinder diameter ............. 80 mm / 3” Cylinder closing power ........ 70 KN /180 bar (7000 kg) Working pressure, min. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING!!! Pay close attention to these points: all safety instructions are marked with this symbol , it is extremely important that you read them. 1. Become familiar with the instruction book; read the safety instructions through carefully. -
Page 5: Personnel Safety
PERSONAL SAFETY!!! Working in conditions with high levels of noise can lead to hearing damage, and even to deafness. The noise level depends to some extent on the cabin insulation of the tractor, so if necessary, use suitable hearing protection. Avoid physical contact with the oil during maintenance/repairs;... -
Page 6: Connecting To Tractor
CONNECTION to TRACTOR The forestry claw is to stand in its normal position, i.e.: lowered onto a flat, solid surface, resting upon the tong and the support leg. When this is ensured, connection is accomplished as follows: 1. Drive carefully towards the forestry claw, so it does not tip over during mounting 3. -
Page 7: Maintenance
WARNING!!! Be especially careful on uneven terrain. In such situations the forestry tong must be lowered immediately, so the rear end of the logs always rests on the ground. As the Locking lever are in the “floating” position, the consequences of allowing long logs to hang freely in the air can be that they may swing out to one side and result in overturning the tractor. -
Page 8: Renewal Of Hydraulic Hoses
HYDRAULICS Hydraulic hoses, pipes and outlets must be inspected regularly for leaks, faults or indication thereof. In order to avoid further damage, worn or broken parts must be replaced immediately. When assembling hydraulic components it is important that hoses are cleaned and dust, rubber residue, etc, are removed before assembly. - Page 11 Varenr. Antal Bemærkninger Part no. Quantity Remarks Teil Nr. Anzahl Bemerkung No.de pièce Nombre Beskrivelse Description Bezeichnung Désignation Remarques 10910 Beslag v. Bracket l. Halter l. Patte de fixation 10911 Beslag h. Bracket r. Halter r. Patte de fixation 10912 Beslag Bracket Halter...
- Page 13 Remarks Teil Nr. Anzahl Bemerkung No.de pièce Nombre Beskrivelse Description Bezeichnung Désignation Remarques 10900 Overklo Claw Klaue, obere Châssis principal SK-950 11000 Overklo Claw Klaue, obere Châssis principal SK-1400 10901 Underklo Claw Klaue, untere Ecrou de freinage SK-950 11001 Underklo...
