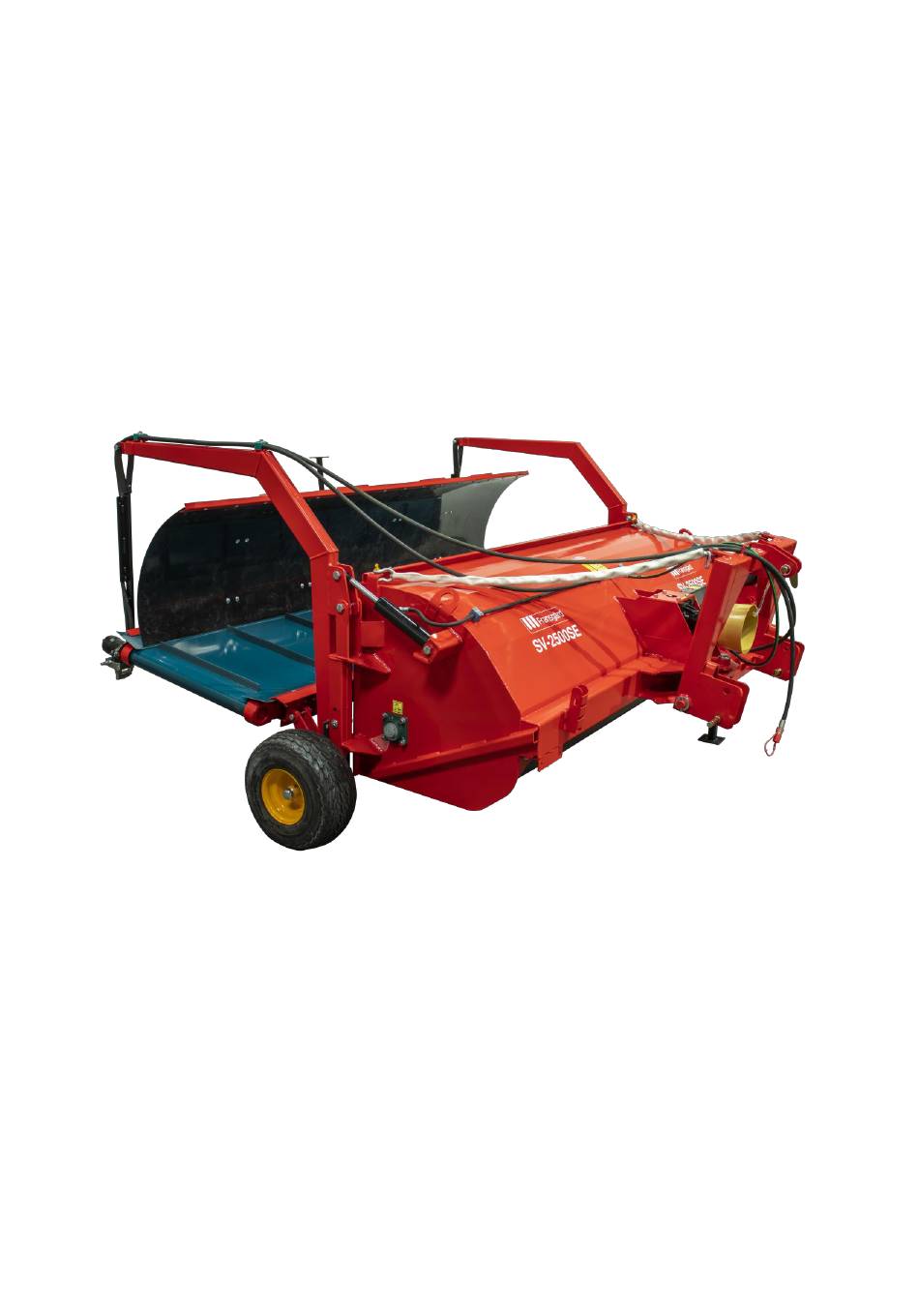

- Page 1 Manual Fransgård SV-2500SE Swath wilter Translated from original manual...
- Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132 DK - 9640 Farsø Phone: +45 98 63 21 22 www.fransgard.dk mail@fransgard.dk...
-
Page 3: Table Of Contents
Storage of belt drive ..............5 Ordering Spare parts .............. 6 Storage ................... 6 Disposal and destruction ............6 Assembling SV-2500SE ............7 TECHNICAL SPECIFICATIONS: Working width ............2,50 mtr/8’2” Transport width ............. 3,00 mtr/9’8” Working speed, max ......8-13 km/h / 5-8 miles/h Power requirement .......... -
Page 4: Safety Precautions
Fransgård, but need to be checked before operation otherwise retighten (picture 2). Mounting on the tractor The swath Wilter SV-2500SE is mounted on the tractors three-point hitch and the PTO is mounted after this. It is very important to check the length of the PTO in both... -
Page 5: Starting Of The Machine
Picture 3 Starting the machine The machine is lowered on the wheels (picture 3) which is adjusted to the needed raking height. Fine adjustment of raking height is done on the top link. The support leg is raised. By spreading the band will be lifted by the hydraulic. -
Page 6: Fitting The Belt-Drive
Fitting the belt drive The pulleys must be flush, and the shafts must be parallel. Correct in-correct After approx. 10 – 20 min. driving, the V-belt must be retightened, the belts must max. could be pressed 15mm per meter in span. If the belt is defective it must be replaced. If the belt is new, you must retighten sometimes, this can contribute to the belt lasting longer and you avoid downtime. -
Page 7: Power Transfer
Power transfer Poor power transfer may be due to: a. Fitting the belt drive incorrectly. b. Dirt, oil, grease, paint and rust on belts and pulleys. Oil and grease on the discs can be washed off with mineral spirits, benzene, trichlorethylene, tetra chlorocarbon and the like. Oil and grease on ordinary V-belts will eventually dissolve the rubber. -
Page 8: Ordering Spare Parts
(picture 8) in each side for lifting and storage. Ordering spare parts When you order spare parts please inform the following: Type of machine SV-2500SE and serial no. Spare part number, maybe dimension and number of parts. -
Page 9: Assembling Sv-2500Se
Assembly and user guide for escalator unit on SV-2500SE Assembly guide 1. Screws and nuts etc. are placed on the right spots. 2. The two tube brackets must be fixed into the brackets just above the wheels on the main frame, please note there is a right and left bracket.
