Fransgard BF-7000 Manual

Dual rotary rake
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
GB
BF-7000
Dual rotary rake

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fransgard BF-7000

Summary of Contents for Fransgard BF-7000

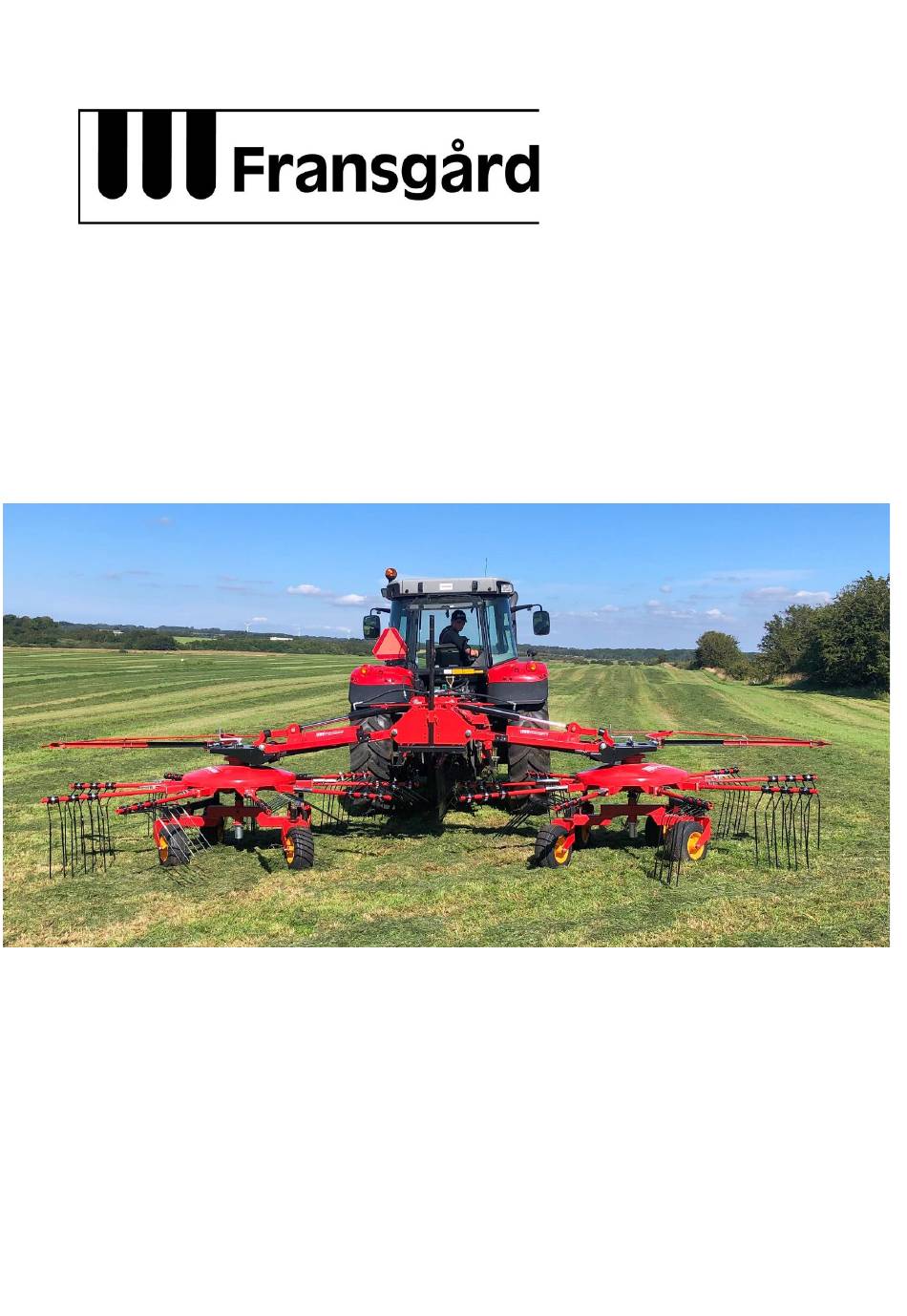

  • Page 1 Manual BF-7000 Dual rotary rake...
  • Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132 DK - 9640 Farsø Phone : +45 98 63 21 22 www.fransgard.dk mail@fransgard.dk...

  • Page 3: Table Of Contents

    Tabel of Contents 1. Introduction ....................................1 2. The manual's target group ................................. 1 3. Symbols ...................................... 2 4. Placement of symbols ................................. 5 5. Technical data .................................... 6 6. Safety instructions ..................................7 6.1. Intended use ..................................7 6.2. Who is allowed to drive the machine? ..........................7 6.3.
  • Page 4 13.2. Plastic ..................................... 26 13.3. Oil ....................................26 13.4. Rubber .................................... 26 14. Diagrams ....................................27 14.1. Hydraulic diagram ................................27...

  • Page 5: Introduction

    1. Introduction Congratulations on your new BF-7000 dual rotary rake from Fransgård Maskinfabrik. With its low weight and compact transport dimensions, the rotary rake is designed so that even smaller tractors can handle the rotary rake and drive on small and narrow fields where access to the field can also be a challenge.

  • Page 6: Symbols

    3. Symbols Illustrations Explanation Always read the instruction manual and stop the engine. Always read the safety instructions in the instruction manual and never start maintenance and repairs until the tractor has been stopped and the key has been removed from the ignition lock on the tractor.
  • Page 7 Crush hazard. Always keep limbs away from areas where there is a risk that parts can still move, even after switching off the tool. Hydraulic lowering parts. Keep a safe distance when unfolding the tool to the working position, otherwise it can lead to fatal injuries. Rotating parts.
  • Page 8 Keep your distance from the tractor Never stand between the tractor and the tools when coupling and uncoupling the tool to avoid dangerous situations. PTO Max. Do not exceed the specified PTO rpms. Lubricatiion nipples Lubricatiion nipples are marked at their location around the tool.

  • Page 9: Placement Of Symbols

    4. Placement of symbols ~ 5 ~...

  • Page 10: Technical Data

    5. Technical data Unit Weight 1400 Working width Length Transport width Transport height Number of PTO pcs. axles PTO max. Max power output Number of rotors pcs. Number of tyres pcs. Tyres 16.5x6.5-8 Tyre pressure Hydraulic supply External Oil pressure, max. Oil flow, max.

  • Page 11: Safety Instructions

    6. Safety instructions The machine is built according to recognised technical safety regulations. However, this cannot prevent a risk to life and limb of the user or other persons during use. It is always up to the user to ensure that all safety instructions are followed, thereby minimising the risk of dangerous situations.

  • Page 12: Pto Axles

    5. Stop the tractor and remove the key from the ignition lock. Failure to follow these instructions can create dangerous situations for the operator, as well as those around the area. WARNING PTO axles can continue to rotate even after switching off the PTO function. Therefore, always wait a few minutes before disconnecting the PTO axles.

  • Page 13: Maintenance

    can create dangerous situations and have fatal consequences. Always keep an eye on the area and surroundings of the work area both before and while driving with the tool. WARNING Driving in operation also includes driving with the tractor's PTO. Never start the tractor's PTO until you have ensured that there are no persons in the vicinity and that everything described in Chapter 6.6 has been complied with.

  • Page 14: Delivery And Assembly Of The Machine

    7. Delivery and assembly of the machine 7.1. Delivery The BF-7000 is delivered fully assembled either by Fransgård Maskinfabrik or one of our dealers, and is ready to use for the end user. Inspect the machine upon delivery to check for missing parts. Should missing parts be discovered, the dealer must be contacted to rectify the problem.

  • Page 15: Preparing The Machine For Operation

    Chapter 6, as there is a lot of important information to consider before you start preparing your tool for operation. 8.1. Connecting to the tractor The BF-7000 rotary rake attaches to the traditional 3-point suspension on the tractor and can use category 2/2, 3/2 and 3/3 hitch balls and category 2/2 and 3/2 top bar balls.

  • Page 16: Adjusting The Inclination Of The Main Frame

    8.6. Adjusting the cam The BF-7000 has the option to adjust the cam. This means that you adjust how the raking arms deliver the crop in the centre under the machine. The right setting is highly dependent on the type of crop you're working with and the volume of the crop.

  • Page 17: Attaching And Detaching The Raking Arms

    8.8. Adjusting the tractor's hydraulic flow As the flow divider on the BF-7000, which is designed to distribute hydraulic oil evenly to the two lifting cylinders, does not tolerate an excessive flow of oil, it is important to regulate the oil flow to approx.

  • Page 18: Operating The Tool

    9.3. Driving with the tool. After unfolding the BF-7000, the rotors are raised slightly from the ground before starting the PTO, as it can be hard on the gearbox to start from 0 rpm if there is a load from the start with the rotors placed down in the crop.

  • Page 19: Turning Around In A Headland

    a close eye on how the rotary rake is working so you can always see if adjustments are needed. WARNING Never start the PTO until you have ensured that no one is in the vicinity of the rotary rake. 9.4. Turning around in a headland When turning in field's headland, the hydraulic system is used to raise the two rotors off the ground.

  • Page 20: Maintenance And Repairs

    10.1. Lubrication On a BF-7000, there are 36 lubrication nipples that need to be lubricated regularly. The vast majority are low speed plain bearings/bushings, where it is recommended to use LGEM 2 lubricating grease containing molybdenum, which helps to give the bearings/bushings a longer operational life.

  • Page 21: Tightening Bolts

    applying lubrication. If this is not done, you risk pushing dirt and debris into the bushings/bearings, which will result in much higher wear and tear and more quickly damage the machine. The lubrication interval on plain bearings/bushings on a brand new machine is after the first 5 hours of operation and every 25 hours of operation thereafter.

  • Page 22: Replacing Spring Teeth

    4. attach the spring teeth in the reverse order of disassembly. 10.4. Replacing nylon wheels The BF-7000 is fitted with an open cam, where nylon wheels run in the cam and give the raking arms their pivoting function. Even though they are made of nylon (PA 6), which is very durable, it is inevitable that they will need to be replaced from time to time.

  • Page 23: Replacing Nylon Bearings

    T-gear with the wrong amount of oil. As the BF-7000 is most often used in open nature, it is recommended to use natural biological oil products to prevent contamination of nature if the T-gear should accidentally leak during operation.

  • Page 24: Tyres

    WARNING Working with oil products can cause irritation to the skin and eyes, so always wear protective eyewear and oil-proof gloves. 10.7. Tyres To achieve the best raking, it's important to drive with the same tyre pressure in all wheels. That's why it's recommended to check your tyre pressure daily.
  • Page 25 The BF-7000 is designed to fold up to minimise storage space. If you want the rotary rake to take up less space, you can remove the light bar and otherwise switch the rotary rake to transport position as described in Chapter 6.7.

  • Page 26: Optional Extras

    11. Optional extras 11.1. Nose wheel The job of the nose wheel is to ensure that the raking arm does not become soil-seeking, especially when driving on hilly fields, thereby ensuring a higher crop quality, which is crucial if the crop is used for feeding livestock.

  • Page 27: Troubleshooting

    12. Troubleshooting In the unlikely event that you experience problems with the functions of your machine, you can use this troubleshooting form to see if the fault is described here before contacting your dealer or Fransgård Maskinfabrik. Fault Possible cause Action/Explanation Performed by The user/owner.
  • Page 28 properly - uneven the forward speed. swaths. The user/owner. The rotors run too fast and whip the Too high rpms. crop more - lower the PTO rpms. The cam is set incorrectly. Adjust the cam - see Chapter 8.6 The user/owner. Excessive speed combined with a large amount of crop can overload the Large crop layer...
  • Page 29 The user/owner. Rotors can't Hydraulic leakage. Check the machine for oil leaks. maintain height Mechanic/Technician. when turning in Remove and test the flow divider - Faulty flow divider. Mechanic/Technician. headlands replace with a new flow divider. ~ 25 ~...

  • Page 30: Disposal

    13. Disposal When scrapping the product, all different types of materials should be separated and sorted so that they can be recycled in the right and most environmentally friendly way. Be aware of each country's legislation regarding the recycling of the different types included in the product.
  • Page 31 14. Diagrams 14.1. Hydraulic diagram ~ 27 ~...
  • Page 32 ~ 28 ~...
  • Page 33 ~ 29 ~...
