Fransgard TI-4000 Manual

Universal haymaker

Advertisement

Quick Links

Fransgård
Universal Haymaker
Manual
GB
TI-4000
TI-4000S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI-4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fransgard TI-4000

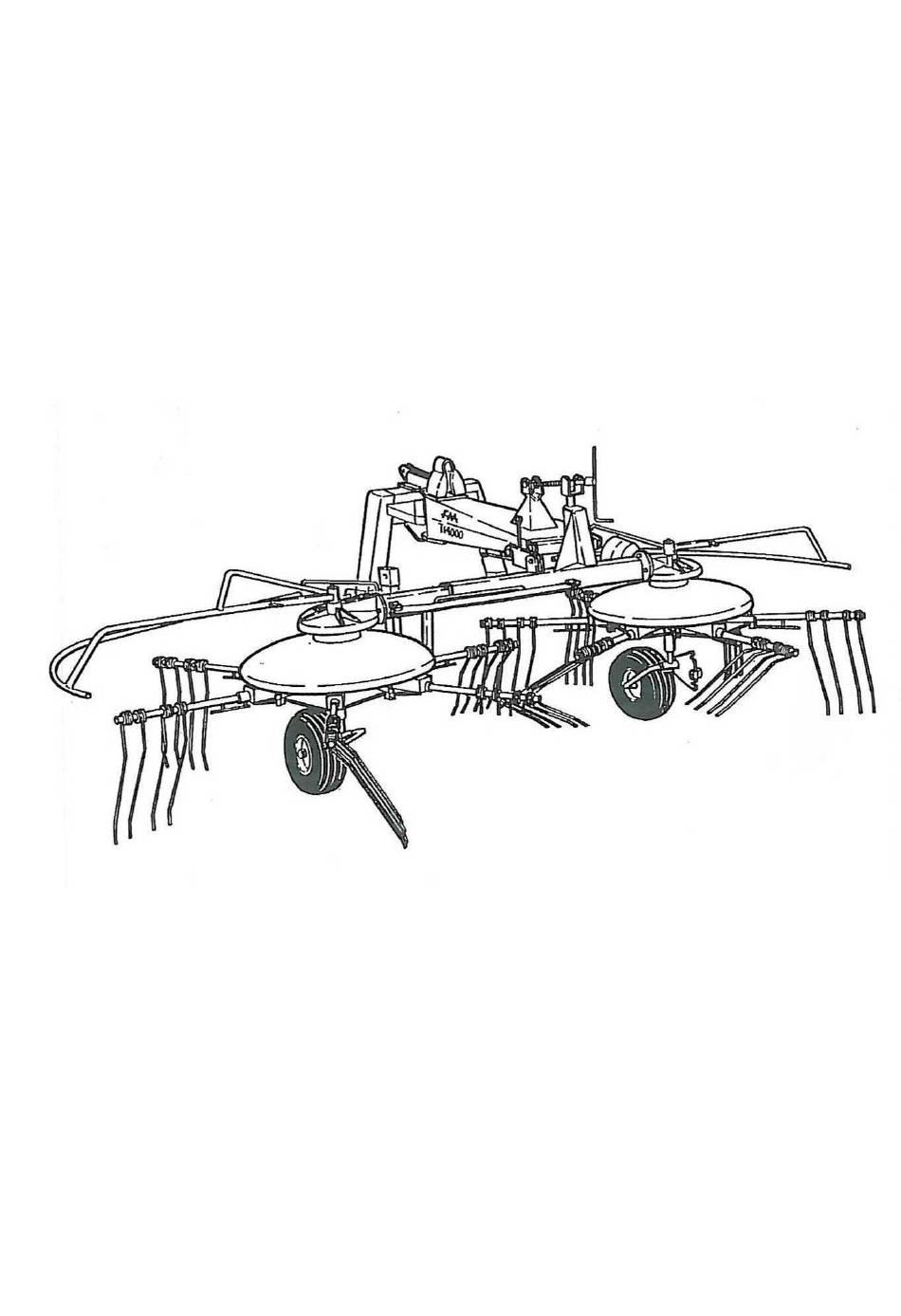

  • Page 1 Fransgård Manual TI-4000 Universal Haymaker TI-4000S...
  • Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132 DK - 9640 Farsø Telefon : +45 98 63 21 22 : +45 98 63 18 65 www.fransgard.dk mail@fransgard.dk...
  • Page 3: Table Of Contents

    Ordering Spare Parts .................... 4 Lubrication and Maintenance ................4 TECHNICAL SPECIFICATIONS Working width TI-4000..........3,40 m / 11,5' - 4,00 m / 13,5' Working width TI-4000S .......... 3,60 m / 11,8’ - 4,20 m / 13,8’ Transport width ..................2,15 m/7,1' Working speed, up to............
  • Page 4: Safety Precautions

    Read instructions for use carefully before starting. INTRODUCTION The Fransgård Combirake model TI-4000 / TI-4000S is one of the fastest and most effective combirakes on the global market, and has all the working functions: tedding, turning over and raking up.
  • Page 5: Raking Up

    RAKING UP For raking up, mount the fittings with the tines in the cam-track controlled fitting on the rotors. Adjust the wheel height by means of the wheel fitting under the rotors in the bottom or next-to-bottom hole. The machine must be adjusted for horizontal position using the handle located at the top of the middle frame.
  • Page 6: Ordering Spare Parts

    ORDERING SPARE PARTS The spare part order must contain the following information: 1. Machine type. 2. Spare part number and description-possibly dimensions and number of parts. LUBRICATION AND MAINTENANCE Lubricate PTO shaft after every 10 hours of operation, and lubricate the indicated lubrication points as and when required.

This manual is also suitable for:

Ti-4000s
