  • Page 1 Fransgård Manual Leveller GT-300AUS...
  • Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132 DK - 9640 Farsø Phone : +45 98 63 21 22 www.fransgard.dk mail@fransgard.dk...
  • Page 3: Table Of Contents

    Contents Introduction ......................1 The manual's target group ..................1 Technical data ......................2 Safety instructions ....................2 Intended use ......................2 Maintenance ......................2 Hydraulics ......................2 Preparing the leveller for operation ................. 3 Attaching the leveller to the tractor ..............3 Attaching hydraulic hoses to the tractor ...............
  • Page 4: Introduction

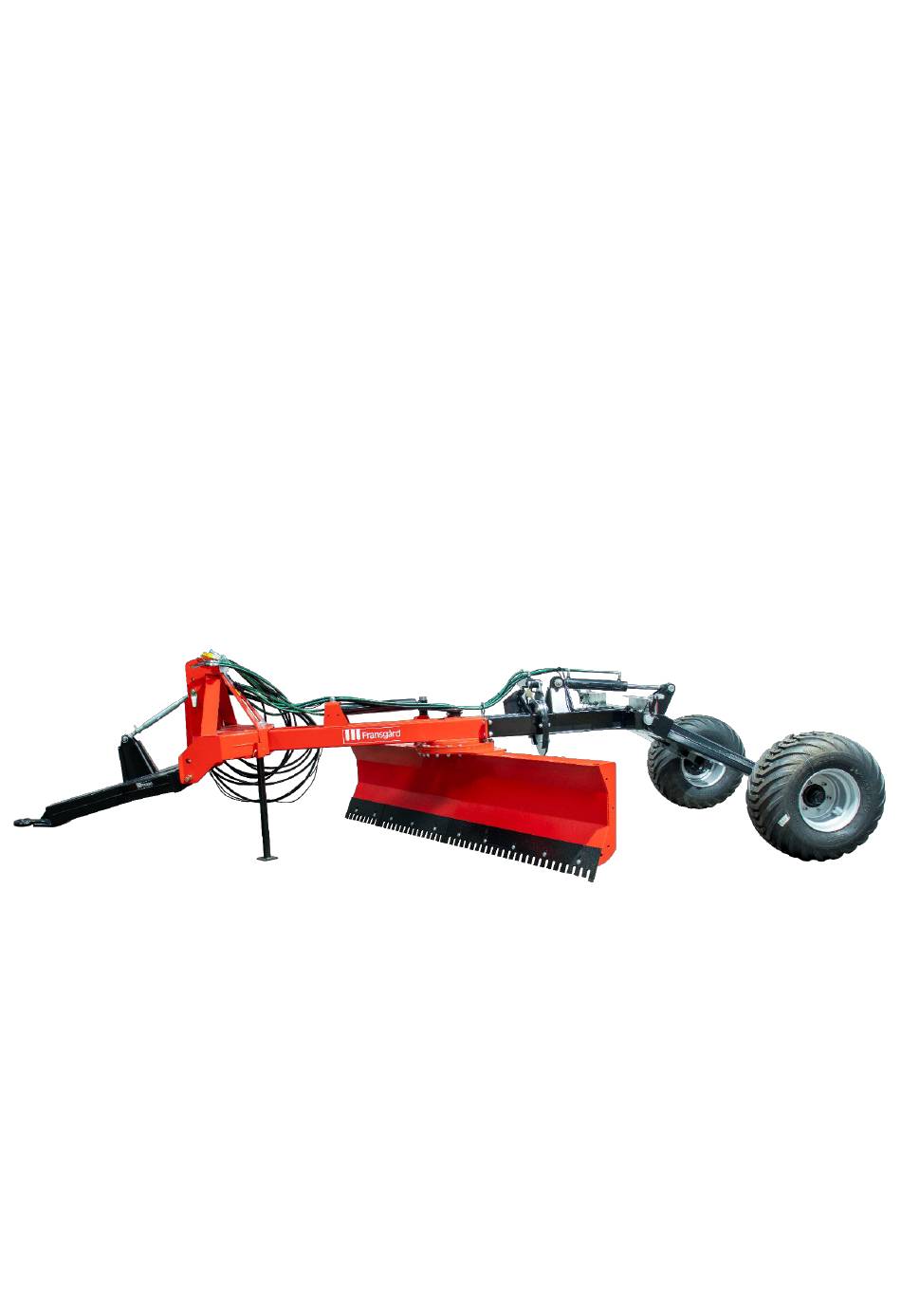

    Introduction Congratulations on your new GT-300AUS leveller from Fransgård. The GT-300AUS is a towed leveller that, due to its very powerful construction, can handle very difficult levelling and maintenance tasks, as well as clearing snow. This manual describes all the relevant and important things to be done before, during and after taking the leveller into operation.
  • Page 5: Technical Data

    Intended use The GT-300AUS is designed for levelling gravel roads and fields, as well as clearing snow and ice and must not be used for any other purpose. It is the owner's and user's responsibility to ensure that no persons or other objects can be injured or damaged when the machine is in use.
  • Page 6: Preparing The Leveller For Operation

    Tilting the blade The GT-300AUS is also fitted as standard with a hydraulic swivel joint between the wheels and the blade, which allows the user to tilt the blade approximately 20 either side, thereby placing more material in one of the sides.
  • Page 7: Setting The Hydraulic Lateral Displacement (Extra Equipment)

    Lubrication The GT-300AUS is fitted with lubrication nipples in all the various moving parts. As all moving parts, except the wheels, are plain bearings/bushings with a low speed of movement, it is recommended to use LGEM grease containing molybdenum to give the product a longer life.
  • Page 8: Wearsteel

    The wear steel is factory fitted with bolts in steel grade 12.9 Tyres The GT-300AUS is fitted with two 400/60-15.5 tyres as standard. The recommended tyre pressure is approximately 50 PSI. Check tyre pressures regularly to ensure the longest possible tyre life.
  • Page 9: Assembling The Machine

    Assembling the machine The GT-300AUS leveller is, in most cases, partially assembled at the factory so that the main frame and blade are assembled with the associated hydraulic cylinder and hoses. The same applies to the slewing bearing and wheel suspension.
  • Page 10: Coupling Photos

    point hitch. If you have purchased the hydraulic lateral displacement after your leveller has been delivered, the stop bolt must be removed as described earlier. (See Photo 5. The swivel link is fitted by passing the axle of the swivel bracket through the bush on the second pivot, then tightening the crown nut and fitting the split pin.
  • Page 11 Photo 1 Photo 2 Photo 3 Photo 4 ~ 8 ~...
  • Page 12 Photo 5 Photo 6 Photo 7 Photo 8 ~ 9 ~...
  • Page 13 Photo 9 Photo 10 Photo 11 Photo 12 ~ 10 ~...
  • Page 14 Photo 14 Photo 13 Photo 15 Photo 16 ~ 11 ~...
  • Page 15 Photo 17 Photo 18 Photo 19 Photo 20 ~ 12 ~...
  • Page 16: Photo Of Lubrication Places

    Photo 21 ~ 13 ~...
  • Page 17: Troubleshooting

    Troubleshooting Should you, contrary to expectations, experience problems with the functions of your GT-300AUS leveller, you can use this troubleshooting form to see if the error is possibly described here, before contacting your dealer or Fransgård. Fault Possible cause Action/Explanation Performed by Defective cylinder.
  • Page 18 cylinder when oil is detected. If the gasket between the piston rod and the cylinder housing is leaking, oil can move from one side of the piston to the Leaky gasket around the piston Mechanic/Technician. other, causing the hydraulic cylinder to rod.
  • Page 19 The user/owner. Check and retighten bolts and nuts on Loose bolts the wear steel Mechanic/technician. Check and replace any missing nuts The wear strip is and bolts. loose. The user/owner. One or more bolts are missing. Check the spare parts manual and Mechanic/technician.
