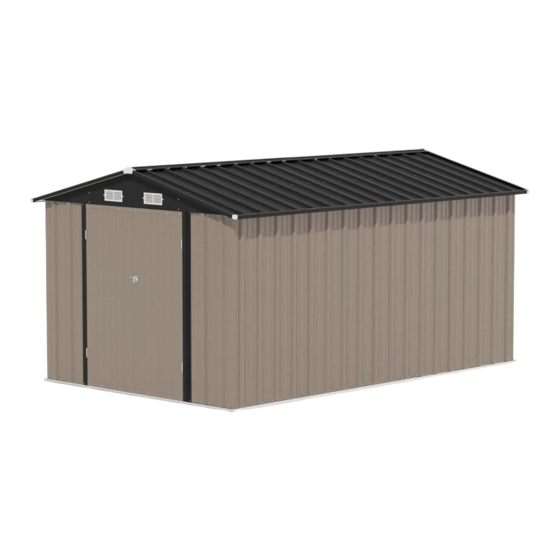

- Page 1 ASSEMBLY INSTRUCTIONS METAL GARDEN SHED SKU: T-PS23-0356A YOUR Metal Garden House LIFE BUILDER Installation Tutorial https://www.patiowell.com/ pages/video-t-ps23-0356a www.patiowell.com saleservice@patiowell.com...
- Page 2 SITE PREPARATION Level the ground surface. Recommendation: Construct a wooden or concrete base as a foundation. The external dimensions of the product : 76.4’’ 143.7’’ 93.7’’...
- Page 3 Requires two people and takes 2-3 hours for Installation. Recommended to wear gloves to avoid scratches. Please read the manual carefully before installation. DO NOT RETURN YOUR UNIT TO THE STORE Contact us first saleservice@patiowell.com...
- Page 4 FOUNDATION 1 X2 2 X2 BE1L X1 BE1 X1 BE2L X1 BE2 X1 PLATES PE3 X4 W1A X20 WS2A X4 PE4 X10 WS3A X4 PE5 X2 PE6 X2 PE2 X2...
- Page 5 PLATES A3 X2 A4 X2 DLA X1 DRA X1 DX2 X4 ULA X1 UR1 X1 7 X1 8 X1 9 X4 10L X1 10R X1...
- Page 6 STRIPS 13 X4 14 X4 M9 X2 M10 X2 17 X2 17A X2 17B X2 19A X1 19B X1 19 X1 C4L X2 20 X4 C5 X4 C4R X2...
- Page 7 STANDARD DG X1 DF X1 DC X2 DH X4 C2 X4 GF X4 GR X2 GS X2 GC X4 S1 X 144 V2 X535 SCREW inch inch F1(X535) M4*10 F2(X54) M4*10 inch inch F3(X32) M5*12 F4(X5) M6*10 For GC inch F5(X4) M4*16...
- Page 8 WS2A WS3A WS2A WS2A WS3A WS3A WS3A BE2L WS2A BE1L...
- Page 9 STEP 1 BE1L BE1L F1 X2 STEP 2 BE2L BE2L F1 X2...
- Page 10 STEP 3 BE2L BE2L BE2L BE1L F1 X12 STEP 4 F1 X4...
- Page 11 STEP 5 WS2A WS2A WS2A WS2A BE1L F1 X16 V2 X16 STEP 6 BE1L F1 X16 V2 X16...
- Page 12 STEP 7 BE1L F1 X10 V2 X6 STEP 8 F1 X4...
- Page 13 STEP 9 BE1L F1 X6 V2 X6 STEP 10 BE1L F1 X20 V2 X20...
- Page 14 STEP 11 WS3A WS3A BE1L F1 X104 V2 X104 STEP 12 F1 X32 V2 X32...
- Page 15 STEP 13 WS3A WS3A F1 X8 V2 X8 STEP 14 WS3A F1 X8 V2 X4...
- Page 16 STEP 15 F2 X20 V2 X16 STEP 16 Note: 14 is pressed into 13...
- Page 17 STEP 17 Don't tighten these two screws too tightly Don't tighten these two screws too tightly F2 X12 STEP 18 F2 X8...
- Page 18 STEP 19 F1 X24 V2 X24 STEP 20 Tighten all screws F2 X12...
- Page 19 STEP 21 F1 X153 V2 X153 STEP 22 F1 X1 V2 X1...
- Page 20 STEP 23 F1 X2 V2 X2 STEP 24 Installation tips : You need to gently lift the 19B and then screw it. F1 X48 V2 X48...
- Page 21 STEP 25 F1 X3 V2 X3 STEP 26 Installation tips : You need to gently lift the 19B and then screw it. F1 X15 V2 X15...
- Page 22 STEP 27 In this step, hide 19/19A/19B and don't show it for the time being. F1 X8 V2 X8 STEP 28 F1 X6...
- Page 23 STEP 29 F1 X4 V2 X6 F5 X4 STEP 30 Note: make clear the front and back of the door panel...
- Page 24 STEP 31 outside inside F1 X10 V2 X8 F4 X2 STEP 32 F1 X4 F3 X8...
- Page 25 STEP 33 F1 X8...
- Page 26 STEP 34 Note: make clear the front and back of the door panel STEP 35 outside inside F4 F4 F1 X10 V2 X8 F4 X3...
- Page 27 STEP 36 F1 X4 F3 X8...
- Page 28 STEP 37 F3 X16...
- Page 29 STEP 38 S1 X 144 FINISH...
- Page 30 CARE & SAFETY • In case of fire, do not attempt to extinguish any burning polypropylene with water Unsuitable for storage of flammable or corrosive substances. • It is of utmost importance to assemble all of the parts according to the directions. Do not skip any step.
