Mocka Georgia Assembly Instructions Manual

Mocka Georgia Assembly Instructions Manual

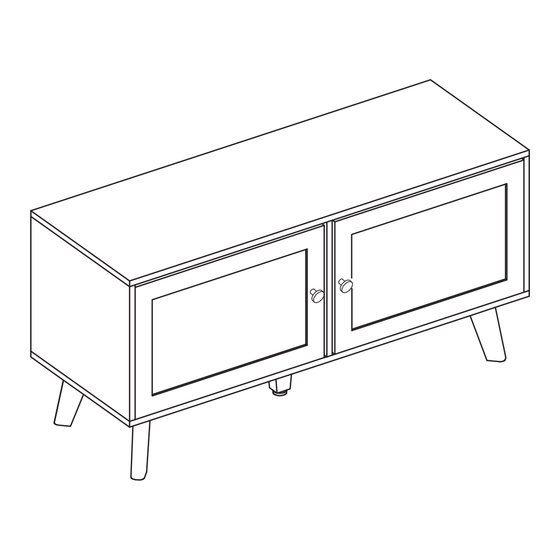

Entertainment unit

Advertisement

Quick Links

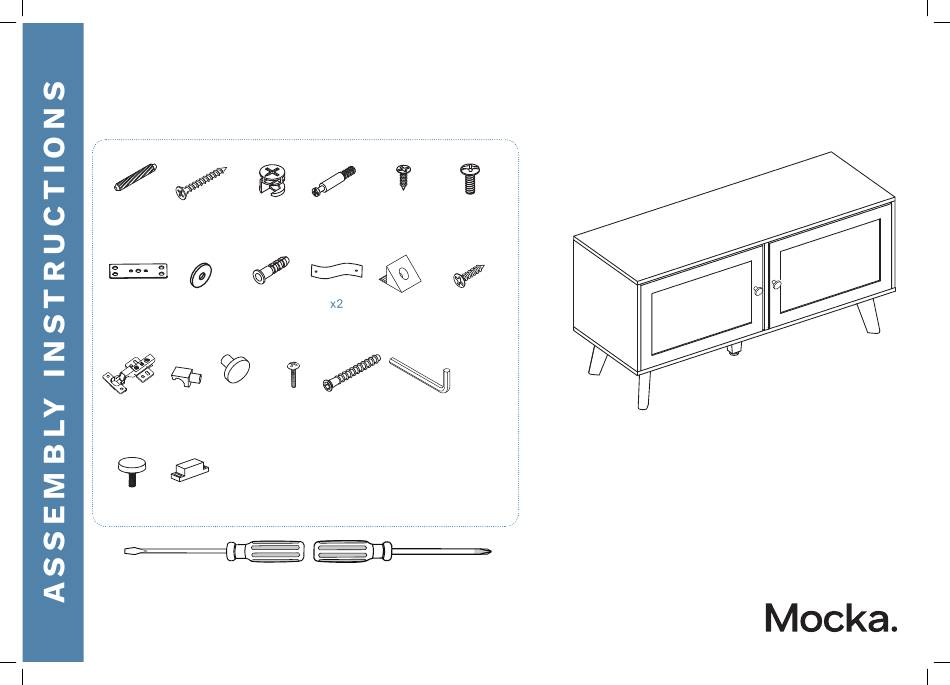

Georgia
Entertainment Unit
A
B
C
x6
x8
x6
dowel
screw
locking nut
G
H
I
x2
x5
x4
washer
wall anchor
fastener
P
M
N
O
x4
x4
x2
hinge
guide
handle
small screw
S
T
x1
x2
foot
latch
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
D
E
F
x6
x24
x20
screw
bolt
small screw
J
K
L
x8
x14
strap
brace
wall screw
Q
R
x2
x10
x1
bolt
allen key
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Georgia and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Georgia

  • Page 1 fixing device provided should fit most wall types, but please note Phillips & Flathead screwdrivers required. that different wall materials may require different fixing devices from For quicker assembly, we recommend the those supplied. use of a power drill on a low-speed setting. mocka.co.nz I mocka.com.au I...
  • Page 2 Georgia Entertainment Unit mocka.co.nz I mocka.com.au I...
  • Page 3 Georgia Entertainment Unit Attach 4 x bolts (D) to panel [1]. Tighten with a screwdriver. Attach 2 x latches (T) to panels [10] and secure with 4 x screws (L). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 4 Georgia Entertainment Unit Attach panels [2], [10] and [3] to panel [1] and secure with 6 x locking Slide panels [4] and [8] into assembled frame as shown. nuts (C). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 5 Attach 10 x screws (Q) and 5 x plates (G) to 4 x legs [6] and 1 x leg [7]. panels [2], [10] and [3] and secure with 6 x screws (B). Tighten with a Tighten with an Allen Key (R). Attach 1 x foot (S) to panel [7]. screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 6 Attach 4 x legs [6] and 1 x leg [7] to panel [5] and secure with 20 Attach 8 x braces (K) to back of assembled frame as shown and x screws (F). Tighten with a screwdriver. secure with 8 x screws (L). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 7 Attach 2 x hinges (M) to panel [11] and secure with 4 x screws (E). Attach panel [11] to assembled frame and secure with 8 x screws (E). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 8 Georgia Entertainment Unit Insert 4 x guide (N) and slide panel [9] into position as shown. Attach panel [11] to assembled frame and secure with 8 x screws (E). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 9 2 x safety straps (J). Fasten to the wall using 2 x wall anchor (I), 2 x screw (B) and 2 x washer (H). Ensure unit is balanced and steady before use. mocka.co.nz I mocka.com.au I...
  • Page 10 Georgia Entertainment Unit You’re done, enjoy! mocka.co.nz I mocka.com.au I...
