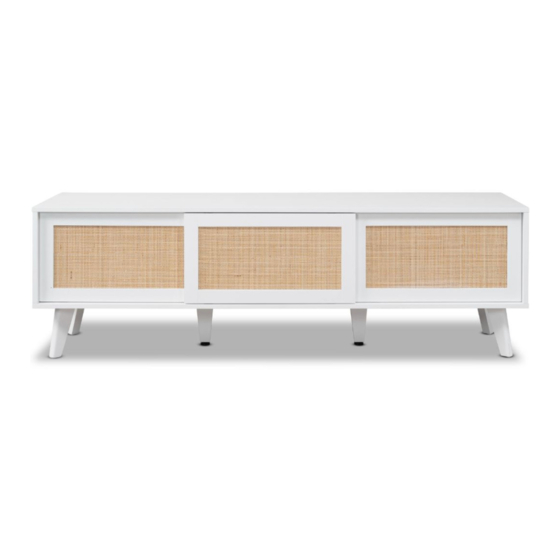

Georgia Entertainment Unit Large
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
locking nut
×8
×8
G
H
brace
6.12 screw
×12
×24
M
N
washer
4.14 screw
×4
x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
dowel
3.12 screw
3.14 screw
×16
×24
×12
J
I
door lock
door hinge
plate
×6
×6
O
P
wall plug
wall strap
x2
x2
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
F
4.35 screw
×
K
L
feet
×6
x2
Q
R
allen key
bolt
x
x1
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Georgia Entertainment Unit
Summary of Contents for Mocka Georgia Entertainment Unit
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 8 x bolts (A) to panel [1] as shown. Tighten with a screwdriver. Attach panels [3], [4] and [5] to panel [1] and secure with 8 x locking nuts (B) and 8 x dowels (C). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Slide panels [6] into position as shown. Attach panel [2] to assembled frame and secure with 8 x dowels (C) and 8 x screws (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Attach 12 x bolts (Q) , 6 x plates (K) and 2 x feet (L) to legs as shown. Attach 6 x legs to assembled frame as shown and secure with 24 x Tighten with a screwdriver. screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Attach 6 x door locks (I), 6 x door hinges (J) to panel [9] and secure with Slide drawers into position as shown. 24 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 Attach 2 x wall straps (P) to back of unit and secure with 2 x screws (N) and 2 x washers (M). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Fasten to the wall using 2 x wall anchors (O), 2 x screws (F) and 2 x washers (M). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
