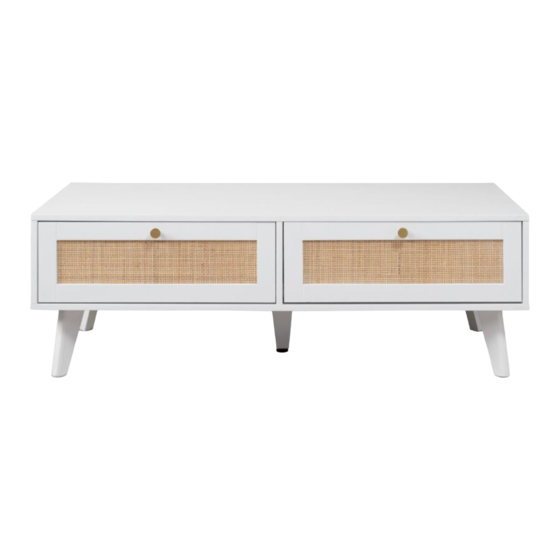

Georgia Coffee Table
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking nut
dowel
x29
x29
x6
G
H
I
screw
0.12 screw
left rail
x10
x32
x4
M
N
screw
allen
x20
key

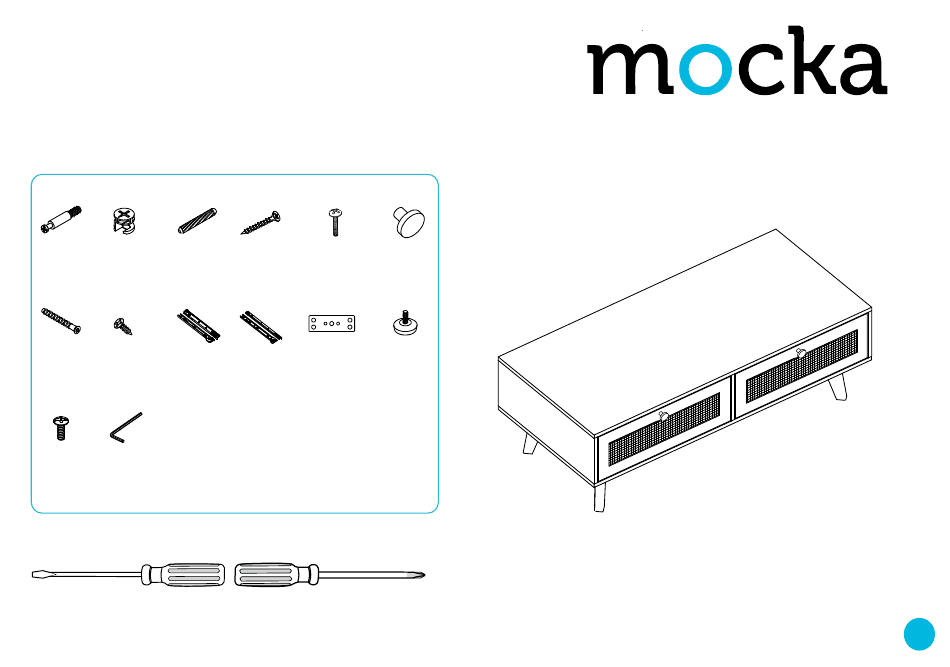

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D
E
F
screw
0.35 screw
handle
x28
x4
x4
J
K
L
right rail
plate
foot
x4
x5
x1
1
Advertisement
Table of Contents
Related Manuals for Mocka Georgia
Summary of Contents for Mocka Georgia
- Page 1 Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Attach 4 x left rails (I) and 4 x right rails (J) to panels [3] and [4] as shown and secure with 16 x screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach panels [3] and [4] to panel [1] and secure with 9 x locking nuts Attach panel [2] to assembled frame and secure with 6 x dowels (C) (B). Tighten with a screwdriver. and 8 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 (E). Attach 1 x left rail (I) and 1 x right rail (J) to panels [9] and an Allen Key (N) and a screwdriver. [10] and secure with 4 x screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Assembly Instructions Attach panels [10], [5] and [9] to panel [11] and secure with 5 x screws Slide panel [12] into position as shown. (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 Georgia Coffee Table Assembly Instructions Attach panel [8] to assembled frame and secure with 5 x locking nuts Slide assembled drawers into position as shown. (B). Tighen with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Georgia Coffee Table Assembly Instructions Once assembled lift furniture into place, do not drag. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
