Mocka Georgia Two Drawer Bedside Assembly Instructions Manual

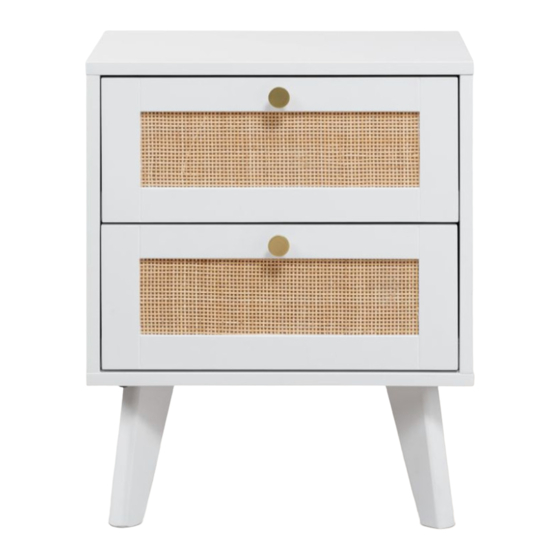

Georgia Two Drawer Bedside
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
bolt locking nuts dowel
x12 x12 x4
F G H
wall plug
left rail right rail
x1
x2 x2
L N P
screw wall strap
0.14 screw
x16
x1
x1

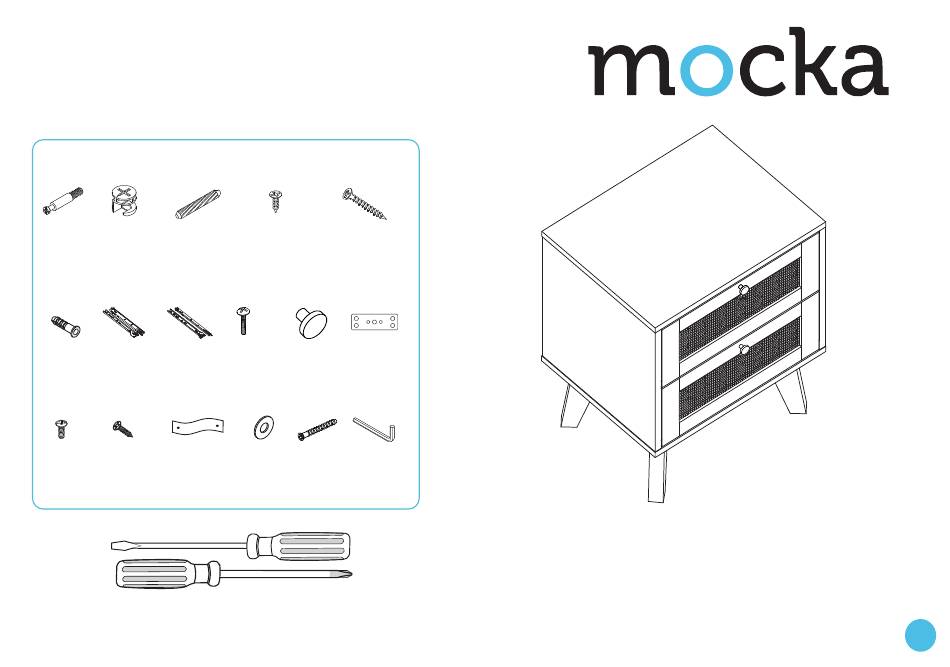

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D E
medium screw
small screw
x13
x20
I
K
J
screw handle
plate
x2 x2
x4
Q S
R
allen key
washer bolt
x2 x8
x1
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices
from those supplied.
1
