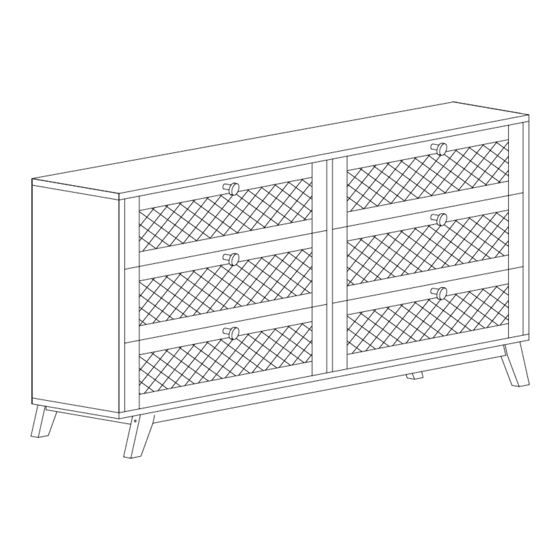

Genevieve Six Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
51 x
51 x
20 x
21 x
bolt
locking
dowel
long
nut
screw
CL
DL
CR
DR
4 x
12 x
12 x
handle
L+R
L+R
slide rail
slide rail
L
M
N
6 x
1 x
1 x
handle
long screw
shelf plug

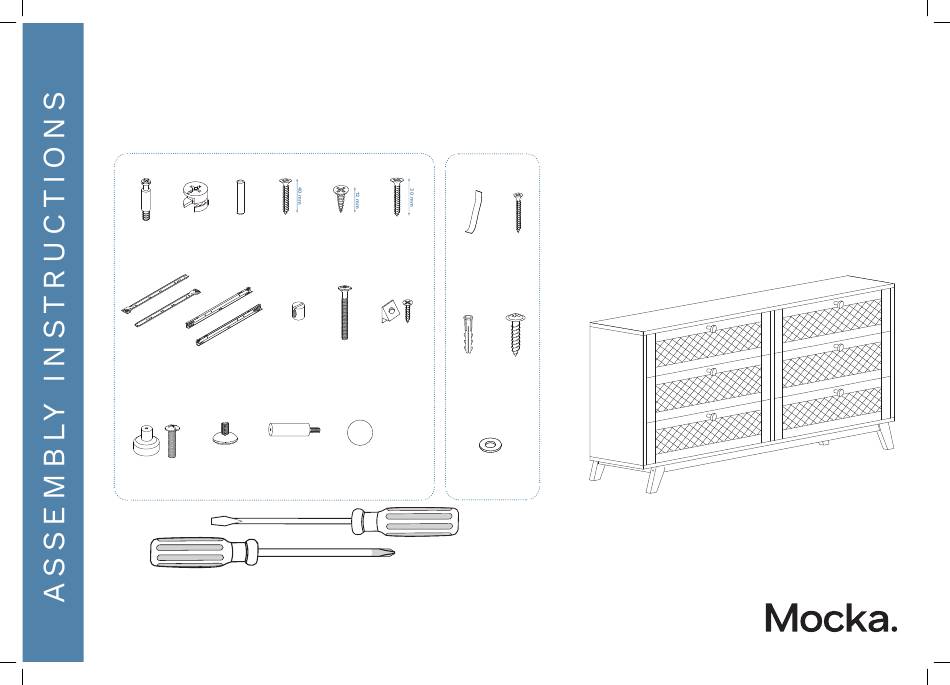

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
F
E
W
60 x
30 x
small
medium
2 x
screw
screw
safety
I
J
K
strap
X
4 x
14 x
small
wedge
2 x
screw
wall
anchor
O
24 x
cover
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
2 x
long
screw
Y
2 x
screw
Z
2 x

Advertisement

loading
Need help?

Need help?

Do you have a question about the Genevieve and is the answer not in the manual?

Questions and answers

Related Manuals for Mocka Genevieve

Summary of Contents for Mocka Genevieve

  • Page 1 Genevieve Six Drawer Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
  • Page 2 Genevieve Six Drawer Attach 3 x left slide rails (CL) to panel [3] and secure with 9 x small screws (E). Insert 2 x bolts (A) into panel [3]. Tighten with a screwdriver. Insert 13 x bolts (A) into panel [1]. Tighten with a screwdriver.
  • Page 3 Genevieve Six Drawer Attach 3 x right slide rails (CR) to panel [4] and secure with 9 x small screws (E). Attach 3 x left slide rails (CL) to panel [5] and secure with 9 x small screws (E). Insert 2 x bolts (A) into panel [4]. Tighten with a screwdriver.
  • Page 4 Genevieve Six Drawer Insert 4 x dowels (C) to panels [4], [5] and [6]. Attach panels [4] and [5] to panels Attach 3 x right slide rails (G) to panel [5] and secure with 9 x small screws (E). [6] and secure with 4 x locking nuts (B). Tighten with a screwdriver.
  • Page 5 Genevieve Six Drawer Insert 4 x dowels (C) to panels [3], [5] and [6]. Attach panels [3] and [5] to panels Insert 6 x dowels (C) into panels [3] and [4]. Attach panel [2] to panels [6] and secure with 4 x locking nuts (B). Tighten with a screwdriver.
  • Page 6 Genevieve Six Drawer Insert 4 x nuts (I) into panels [8]. Attach panels [8] to panels [9] and secure Attach panels [8] and [9] to panel [2] and secure with 8 xlong screws (D). Attach 1 x with 4 xscrews (J). Tighten with a screwdriver.
  • Page 7 Genevieve Six Drawer Slide panels [10] between the grooves on panels [3], [4], [5] and [7] to form Insert 6 x dowels (C) into panel [3], [4] and [5]. Attach panel [1] to panels [3], the back of the unit as shown.
  • Page 8 Genevieve Six Drawer Drawers x 6 Drawers x 6 Attach panels [12], [13] and [14] to panels [16], secure with 30 x medium screws (F). Slide panels [15] between the grooves on panels [12], [13] and [16] to form the Tighten with a screwdriver.
  • Page 9 Genevieve Six Drawer Drawers x 6 Drawers x 6 x 24 Attach 30 x bolts (A) into panels [11]. Insert 6 x handles (L) into panels [17]. Attach panels [11] to panels [12], [13] and [14], secure with 30 x locking nuts Tighten with a screwdriver.
  • Page 10 Genevieve Six Drawer Drawers x 6 Attach 12 x slide rails (H) to panels [12] and [13], secure with 24 x small screws Slide drawers x 6 between the grooves on panels [3], [4] and [5] to form (E). Tighten with a screwdriver.
  • Page 11 Genevieve Six Drawer Attach 2 x wall straps (W) to panels [7] using 2 x screws (Y). Tighten with a screwdriver. Attach 14 x wedges (K) to panels [10] and [11]. Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
  • Page 12 Genevieve Six Drawer Strap Washer Wall anchor Wall Wall screw screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using wall anchor (X), washer (Z) and screw.
