Mocka Georgia Assembly Instructions Manual
Two door cabinet
Hide thumbs
Also See for Georgia:
- Assembly instruction manual (11 pages) ,
- Assembly instructions manual (10 pages) ,
- Assembly instructions (4 pages)
Advertisement
Quick Links
Georgia

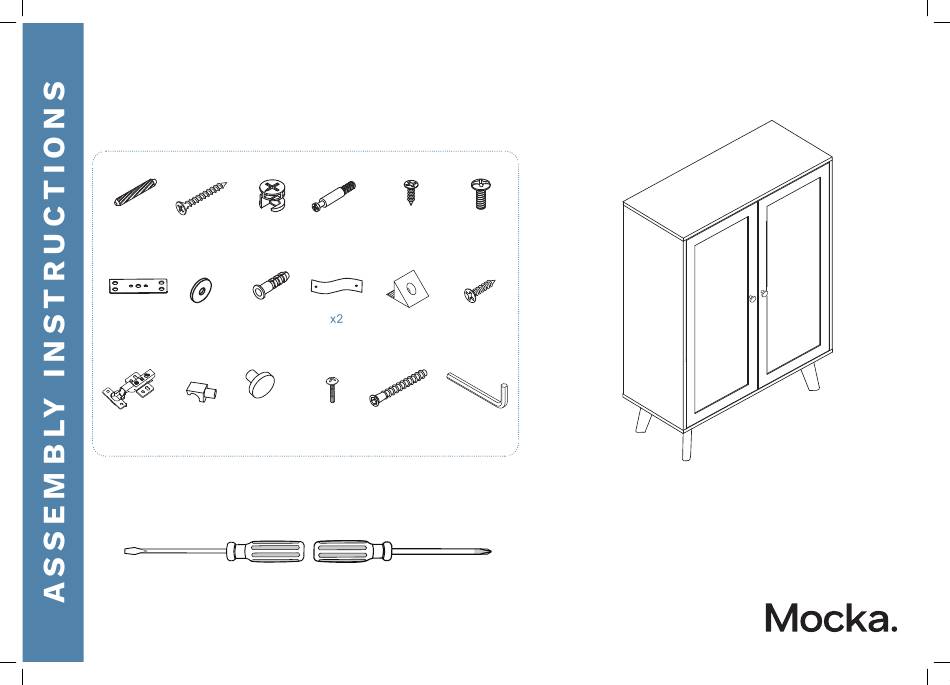

Two Door Cabinet
A
B
C
x4
x6
x8
dowel
screw
locking nut
G
H
I
x2
x4
x4
washer
wall anchor
fastener
M
O
N
x4
x8
x2
hinge
guide
handle
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
D
E
F
x8
x24
x16
screw
bolt
small screw
J
K
L
x10
x8
strap
brace
wall screw
P
Q
R
x2
x8
x1
small screw
bolt
allen key
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Georgia
Summary of Contents for Mocka Georgia
- Page 1 fixing device provided should fit most wall types, but please note Phillips & Flathead screwdrivers required. that different wall materials may require different fixing devices from For quicker assembly, we recommend the those supplied. use of a power drill on a low-speed setting. mocka.co.nz I mocka.com.au I...
- Page 2 Georgia Two Door Cabinet mocka.co.nz I mocka.com.au I...
- Page 3 Two Door Cabinet Attach 8 x bolts (D) to panels [1], [2] and [3]. Tighten with a screwdriver. Attach panels [2] and [3] to panel [7] and secure with 4 x locking nuts (C). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 4 Georgia Two Door Cabinet Slide panel [4] into position as shown. Attach panel [1] to assembled frame and secure with 4 x locking nuts (C). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 5 Slide panel [4] into position as shown. Insert 4 x dowels (A) into panels [2] and [3]. Attach panel [5] to panels [2] and [3] and secure with 4 x screws (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 6 Two Door Cabinet Attach 8 x screws (Q) to 4 x legs [6]. Tighten with an Allen Key (R). Attach 4 x legs [6] to panel [5] and secure with 16 x screws (F). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 7 Attach 8 x braces (K) to back of assembled frame as shown and Insert 8 x guides (N) into assembled frame as shown. Slide 2 x panel secure with 8 x screws (L). Tighten with a screwdriver. [8] into position. mocka.co.nz I mocka.com.au I...
- Page 8 Attach panel [9] to assembled frame and secure with 8 x screws (E). Attach 1 x handle (O) to panel [9] and secure with 1 x screws (P). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 9 Attach panel [9] to assembled frame and secure with 8 x screws (E). Attach 2 x wall straps (J) to back of assembled frame and secure with Tighten with a screwdriver. 2 x washers (H) and 2 x screws (L). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 10 2 x safety strap (J). Fasten to the wall using 2x wall anchor (I), 2x screw (B) and 2 x washer (H). Ensure unit is balanced and steady before use. mocka.co.nz I mocka.com.au I...
