Georgia
Coffee Table

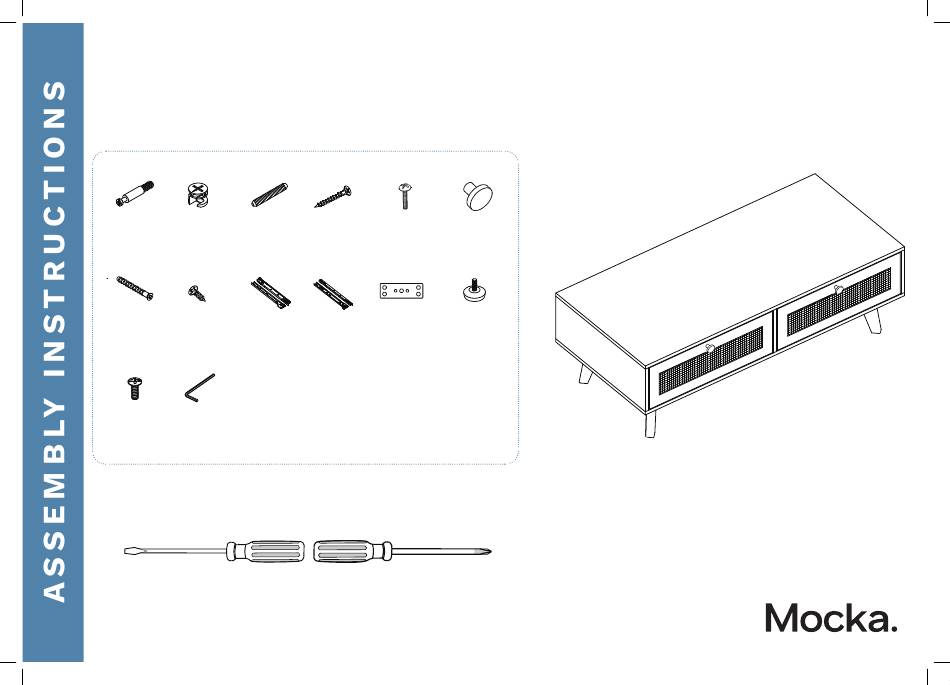

B
C
A
x29
x29
x6
bolt
locking nut
dowel
G
H
I
x10
x32
x4
screw
0.12 screw
left rail
M
N
x20
x1
screw
allen key
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
D
E
F
x28
x4
x4
0.35 screw
screw
handle
J
K
L
x4
x5
x1
right rail
plate
foot
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Georgia and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Georgia

  • Page 1 fixing device provided should fit most wall types, but please note Phillips & Flathead screwdrivers required. that different wall materials may require different fixing devices from For quicker assembly, we recommend the those supplied. use of a power drill on a low-speed setting. mocka.co.nz I mocka.com.au I...
  • Page 2 Attach 9 x bolts (A) to panel [1]. Tighten with a screwdriver. Attach 4 x left rails (I) and 4 x right rails (J) to panels [3] and [4] as shown and secure with 16 x screws (H). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 3 Attach panels [3] and [4] to panel [1] and secure with 9 x locking nuts Attach panel [2] to assembled frame and secure with 6 x dowels (C) (B). Tighten with a screwdriver. and 8 x screws (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 4 (E). Attach 1 x left rail (I) and 1 x right rail (J) to panels [9] and an Allen Key (N) and a screwdriver. [10] and secure with 4 x screws (H). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 5 Georgia Coffee Table Attach panels [10], [5] and [9] to panel [11] and secure with 5 x screws Slide panel [12] into position as shown. (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 6 Georgia Coffee Table Attach panel [8] to assembled frame and secure with 5 x locking nuts Slide assembled drawers into position as shown. (B). Tighen with a screwdriver. mocka.co.nz I mocka.com.au I...
  • Page 7 Georgia Coffee Table Once assembled lift furniture into place, do not drag. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz I mocka.com.au I...
