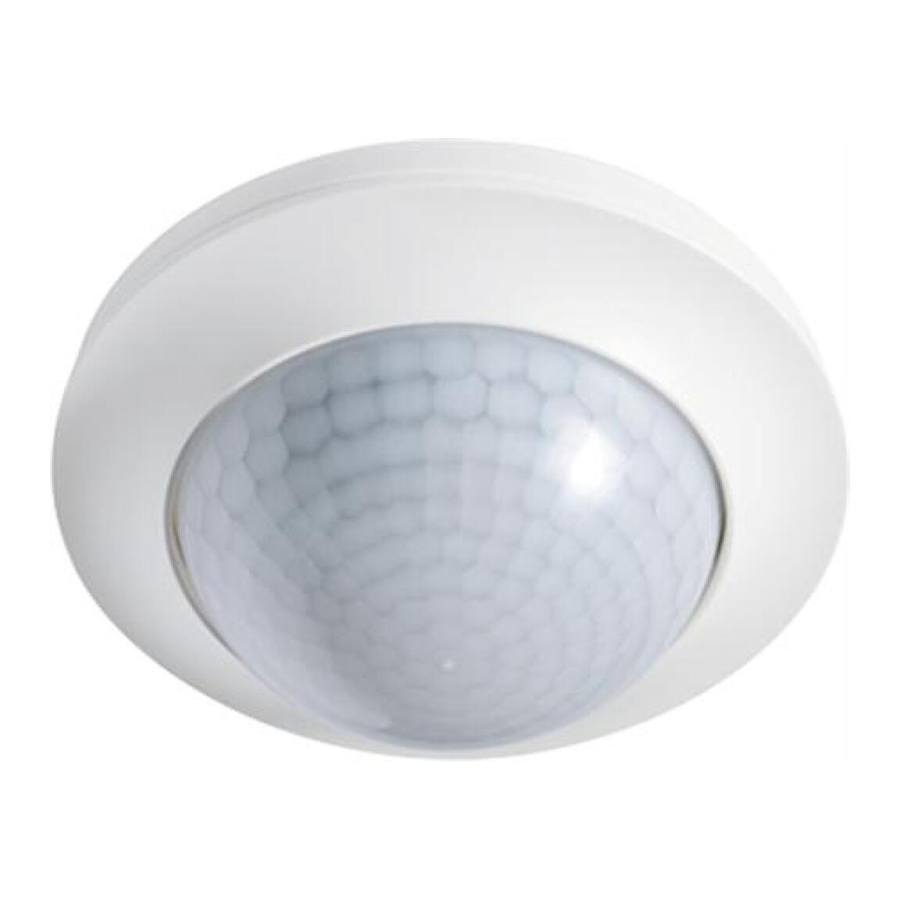

ESYLUX PD-C360i/8 DUO DALI, PD-C360i/24 DUO DALI - Operating Manual

Table of Contents

Contents

1 SAFETY INSTRUCTIONS
2 DESCRIPTION
3 INSTALLATION / ASSEMBLY / CONNECTION
4 START-UP
- 4.1 Function after the warm-up phase
5 INDIVIDUAL SETTINGS AND FUNCTIONS
6 TECHNICAL DATA
7 Documents / Resources
- 7.1 References
- 7.2 Download manual

SAFETY INSTRUCTIONS

Congratulations on your purchase of this high-quality ESYLUX product. To ensure correct device operation, please read these installation/operating instructions carefully and keep them in a safe place for future reference.

Work on the 230 V power system must be carried out by authorised personnel only with due regard to the applicable installation regulations. Switch off the power supply before installing the system.

Use this product only as intended (as described in the user instructions). Changes or modifications to the product or painting it will result in loss of warranty. You should check the device for damage immediately after unpacking it. If there is any damage, you should not install the device under any circumstances. If you suspect that safe operation of the device cannot be guaranteed, you should turn the device off immediately and make sure that it cannot be operated unintentionally.

NOTE: this device must not be disposed of as unsorted household waste. Used devices must be disposed of correctly. Contact your local town council for more information.

DESCRIPTION

Motion and presence detectors are passive infrared detectors that automatically switch connected lighting depending on natural light and presence/movement and are suitable for use indoors.

INSTALLATION / ASSEMBLY / CONNECTION

The presence detector is a control device with an integrated signal interface. There is no need to address the lights/electronic ballasts separately. All ballasts are addressed at the same time via the broadcast address. A maximum of 25 Dali/DSi electronic ballasts can be connected per channel.

The presence detector has two channels/outputs. Channel C1 is the "Master channel" in terms of light measurement and light control. Channel C2 is subordinate to channel C1. Remember to bear this in mind when assigning lighting groups to the channels. We recommend that you assign the "room interior" lighting group to channel C1 and the "window side" lighting group to channel C2. Nevertheless, it is still possible to mount the detector on the ceiling in any orientation.

Please refer to the supplied leaflet for wiring diagrams and further instructions.

START-UP

Connect the power supply
A warm-up phase of approx. 25 seconds is initiated.
The red (channel 1 = C1), green (channel 2 = C2) and blue LEDs flash alternately. The connected lighting is switched on.
The detectors are preset to "factory settings/remote control" and are therefore immediately ready for use after the warm-up phase.
Overview of factory settings (office)
Light value C1 = working area (approx. 500 lux)
Light value C2 = C2 = C1
Switch-off delay time C1 + C2 = 5 min
Mode = Fully automatic

Function after the warm-up phase

Fully automatic mode – channel "lighting C1 and C2"
If the ambient lighting level is higher than the default light value, the red and green LEDs and the connected lighting will be switched OFF.
Automatic switch-on, if the detector is triggered by movement and the ambient lighting level falls below the default light value.
The red and green LEDs are enabled to indicate motion detection: 2 short flashes each time movement is detected. Should there be a change in the natural light value, the artificial light will be adjusted accordingly.
Automatic switch-off, if movement is no longer detected, the lighting will be switched off once the preset switch-off delay time has elapsed.

However, should the natural lighting level increase and the ambient lighting level exceed the preset light value, the detector will automatically switch the lighting off after 5 minutes, regardless of any movement/ presence. Subsequently, the lighting can be switched back on manually at any time.
Switch delay
The detector will only be triggered after a time delay to avoid sudden changes in brightness caused by undesired switching on/off of the lighting when persons are present. Example: a passing cloud could potentially cause unnecessary switching.
Time delay from "dark to light": 5 minutes = red LED flashes slowly during this period.

INDIVIDUAL SETTINGS AND FUNCTIONS

Clear pre-selection of functions using DIP switches directly on the detector.

Individual adjustments can easily be made by remote control or manually by means of adjusting elements selected by operating DIP switch 1 (see illustration).

DIP switches on the detector	Dali/DSi version

Settings and functions via remote control

Please refer to the operating instructions for the remote control:

Mobil-PDi/MDi-universal
http://www.esylux.com/p/EP10433993
The following parameters and functions can be set:

Light channels 1 and 2: luminous efficiency, ON/OFF, DIM and DIM stop
Channels 3 and 4: ON/OFF and 4 hours ON/OFF
Channels 1 to 4: ON/OFF and 4 hours ON/OFF
Light/time values and operating modes

Options can be selected, including:

100-hour burn-in function, corridor function, LED feedback ON/OFF, orientation light ON/OFF and sensitivity adjustment.
Setting the electronic ballast Dali parameters

Mobil-PDi/Dali
http://www.esylux.com/p/EP10425899
Mobil-PDi/User
http://www.esylux.com/p/EM10425547

Settings and functions via adjusting elements

DIP switch 1	"Dali – DSi" function
	Control of Dali electronic ballasts (digital addressable lighting interface) Control of DSi electronic ballasts (digital serial interface)
DIP switch 2	Remote lock on/off
	"Remote lock off" "Remote lock on" after 30 minutes without manual setting
DIP switches 3	Button operation	DIP switches 4	Factory settings
	2-button operation 1-button operation		Office Classroom

Table: "Settings of adjusting elements"

Name of setting	Office	Classroom
Operating mode	Fully automatic	Semi-automatic
Orientation light value	10%	10 %
Corridor function	Off	Off
Orientation light feature	Off	Off
Switch-off delay time	5 min	5 min
Fade-out time	1 min	1 min
Offset setting	100%	100 %
Light set value	500 lux	500 lux
LED acknowledgement	On	On

Switch-off warning
Once the switch-off delay time has elapsed, a 60-second switch-off warning is issued. The light will be dimmed to the orientation light value. If during this time any movement is detected or a button is pressed, the detector will return to its previous state. The detector will only return to its original state if no movement is detected during the 60 seconds.
Fully automatic mode
The light channel will switch on automatically, depending on the preset light value and detection of movement. This will remain on for as long as movement is detected and as long as the ambient light value does not exceed the preset light value. The switch-off delay times for the respective channels will start if movement is no longer detected. Each channel can also be manually switched on or off using buttons S1 - S2. The device is preset to fully automatic mode.
Semi-automatic mode for light channel
Switched ON/OFF manually using the S1/S2 button. The channels will remain on for as long as movement is detected and as long as the ambient light value does not exceed the preset light value.

Additional manual control by button

The detector has two separate "S" terminals for connecting an external button (button – operating current – with zero conductor connection) for each channel. This means that the detector can be manually overridden at any time so that the channels can be switched on or off and dimmed individually.

The device can also be operated with just 1 button, provided the DIP switch (see "Settings and functions via adjusting elements") is in its lower position.
Connect the button to terminal S1 or S2. Bridging S1 and S2 is not permitted.
When set to 1-button operation, all switch and dim commands (from the button and remote control) are addressed to both channels simultaneously. This does not affect the offset of channel 1 to channel 2.

Press and hold the button for more than 2 seconds to select the desired ambient brightness. Hold down the button until the desired ambient brightness is reached. This preset ambient brightness level will be maintained for as long as persons are present in the room. Should these persons leave the detection range, the preset switch-off delay time will start. Once this time has elapsed, the detector will revert to the set operating mode.

Press the button again briefly to switch the lighting off. The lighting will remain switched off for as long as the detector continues to detect movement. The preset switch-off delay time will start once movement is no longer detected. Once this time has elapsed, the detector will revert to the set operating mode.

TECHNICAL DATA

MAINS VOLTAGE	230 V AC 50 hz
POWER CONSUMPTION	approx. 0.5 – 0.6 W
FIELD OF DETECTION	360°
RANGE	approx. 8 m/24 m in diameter at an installation height of approx. 3 m
SETTINGS	on device or via remote control Mobil-PDi/Dali and Mobil-PDi/MDi-universal
DALI/DSI OUTPUT 1	2-pin Dali/Dsi control cable/broadcast
NO. OF SELECTABLE DALI/DSI ELECTRONIC BALLASTS	max. 25
DALI/DSI OUTPUT 2	2-pin Dali/Dsi control cable/broadcast
NO. OF SELECTABLE DALI/DSI ELECTRONIC BALLASTS	max. 25
SWITCH-OFF DELAY TIME	approx. 1 minute – 15 minutes
APPROX. LIGHT VALUE	5 lux – daytime operation
LIGHT MEASUREMENT	mixed light
PROTECTION TYPE	recessed-mounted IP 20 • IP 20/IP 54 with surface-mounted box (accessory) • ceiling-mounted IP 20 (accessory)
PROTECTION CLASS	II
OPERATING TEMPERATURE RANGE	0°C...+50°C
HOUSING	UV-stabilised polycarbonate
DIMENSIONS	recessed-mounted version: PD-C360i/8 DUO DALI Ø 108 mm, h 38 mm PD-C360i/24 DUO DALI Ø 108 mm, h 46.5 mm
COLOUR	white, similar to RAL 9010
