SiT9531x Evaluation Board (EVB) HW User Manual

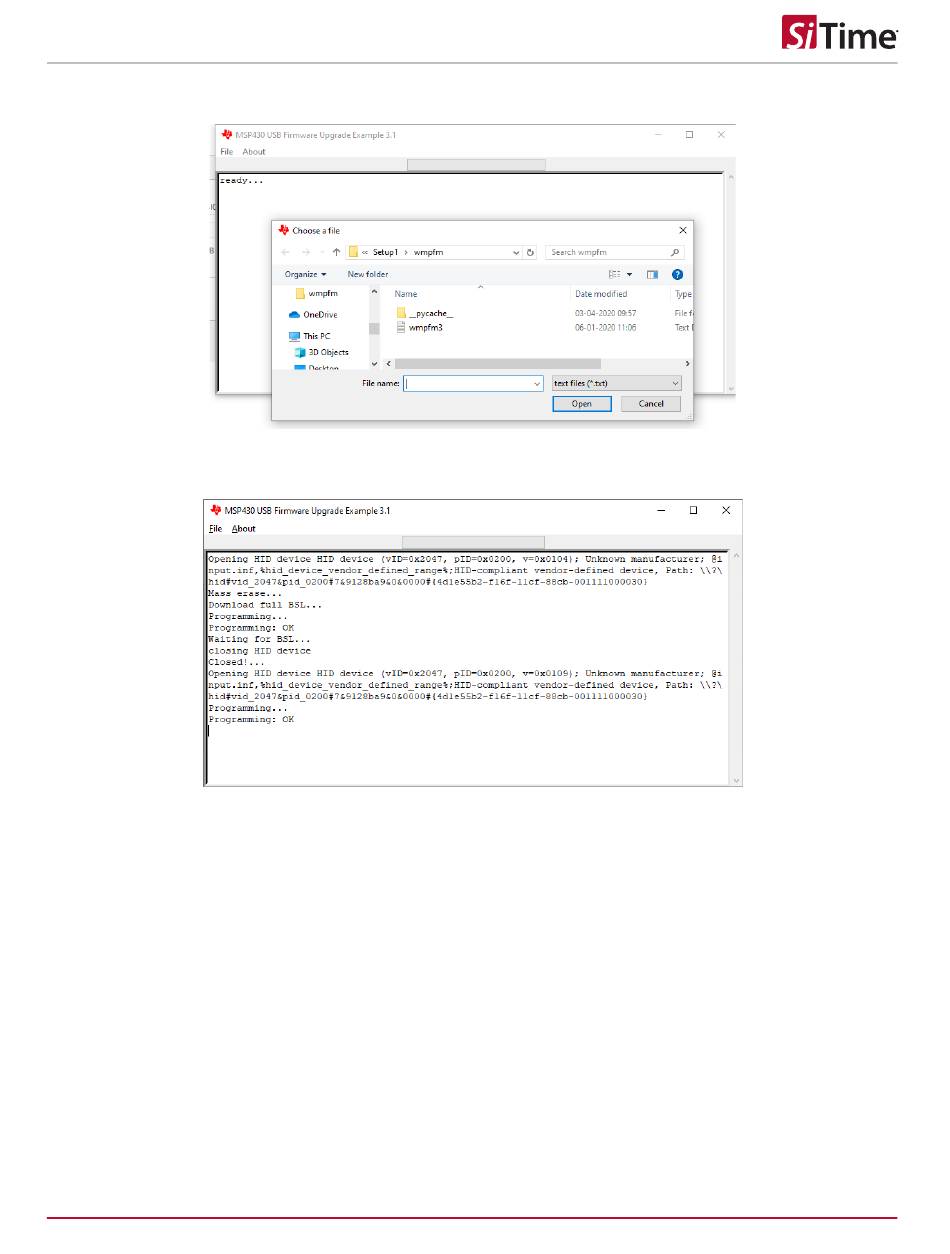

9. Browse to the firmware path and select the file.
10. Select the firmware. The tool should load the firmware into the MCU and and show a completion message as shown:
14 SiTime Clock GUI Installation and EVB Configuration
SiTime SiT9531x Clock GUI provides an easy interface to verify the performance of chip in the lab. The GUI uses the MSP430
microcontroller for the USB to I
configured while installing the GUI.
Refer to the SiTime SiT9531x Clock GUI User Guide for detailed Installation and EVB configuration instructions.
SiT9531xEB User Manual | Rev 0.5
2
C/SPI communication on the board, the MSP430 MCU related software drivers are also
