LindabFireSystemPro
Wiring installation instructions
© 11.2022 Lindab Ventilation. Fire System Pro - Version 1.1. All forms of reproduction without written permission are forbidden.
trademark of Lindab AB. Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
l inda b I fo r a b etter cli m ate
is the registered
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lindab Fire System Pro
Summary of Contents for Lindab Fire System Pro
- Page 1 LindabFireSystemPro Wiring installation instructions © 11.2022 Lindab Ventilation. Fire System Pro - Version 1.1. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB. Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
-
Page 2: Table Of Contents
Caution! Read and understand the instruction before using the Lindab Fire System Pro and ensure that the installation complies with local safety regulations. Installation and maintenance of the system should only be carried out by qualified personnel. The manufacturer is not responsible for any eventual damage or injury caused by inadequate skills during installation, or through removal or deactivation of any security devices. -
Page 3: Firesystempro

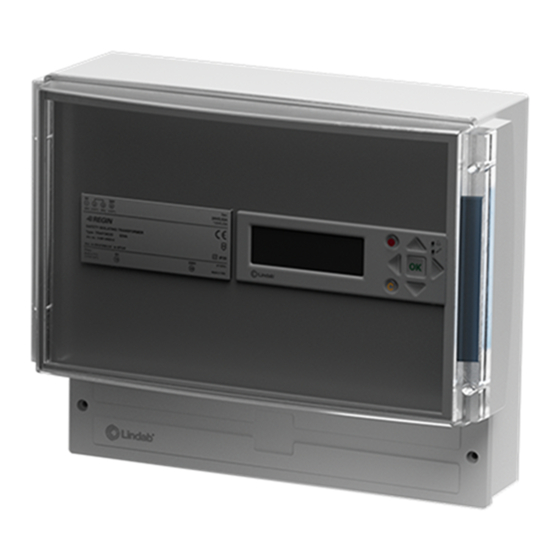

Fire System Pro Lindab Fire System Pro is a complete fire protection steering system that allows to feed, monitor and test up to 60 fire and/ or smoke control dampers. Smoke detectors, temperature sensors, thermostat and fault panel can also be connected to the system. -
Page 4: Pro-M Master Unit
Pro-M master unit Pro-M is the main unit of the Fire System Pro. It can connect directly to up to four fire dampers, two smoke detectors, thermostat and/or temperature sensor. With the help of Pro-S damper unit, the Pro-M can communicate with up to a total of 60 fire dampers and/or smoke control dampers, 60 smoke detectors and 60 temperature sensors. -
Page 5: Access Circuit Card
l i n d a b | in s t a ll at i o n FireSystemPro Master unit Access circuit card Network cable D07 D06 D05 D04 D03 D02 D01 GD0 GO +C DI8 Dl7 DI7 DI6 DI5 DI4 DI3 DI2 DII AGND A01 AGND AI1 AI2... -
Page 6: Circuit Card Overview
lin da b | in s ta l l at i on FireSystemPro Master unit Circuit card overview Input Output Fire dampers Communication Function test Fire Thermostat inspection D07 D06 D05 D04 D03 D02 D01 GD0 GO +C DI8 Dl7 DI7 DI6 DI5 DI4 DI3 DI2 DII... -
Page 7: Circuit Card Connections
l i n d a b | in s t a ll at i o n FireSystemPro Master unit Circuit card connections D07 D06 D05 D04 D03 D02 D01 GD0 D07 D06 D05 D04 D03 D02 D01 GD0 GO +C GO +C DI8 DI7 DI6 DI5 DI8 DI7 DI6 DI5... - Page 8 AGND AI1 AI2 AGND AI1 AI2 AI3 AI4 AI3 AI4 UI1 UI2 UI1 UI2 UI3 UI4 UI3 UI4 lin da b | in s ta l l at i on RESET RESET FireSystemPro Master unit PCB12377D PCB12377D AGND A01 AGND A01 AGND AI1 AI2 AGND AI1 AI2 AI3 AI4...
- Page 9 l i n d a b | in s t a ll at i o n FireSystemPro Master unit Circuid card connections 2 D01 GD0 2 D01 GD0 AGND A01 AGND A01 AI1 AI2 AI1 AI2 AI3 AI4 AI3 AI4 UI1 UI2 UI1 UI2 UI3 UI4...
-
Page 10: Pro-S Damper Unit
Pro-S damper unit Pro-S is a damper unit for the Fire System Pro and should be used when more than four fire dampers are connected to the system. It works together with the Pro-M master unit, where most of the setup of the Pro-S is made. -
Page 11: Mount And Secure Cables
l i n d a b | in s t a ll at i o n FireSystemPro Damper unit Mount and secure cables Caution! Make sure that the hole is as small as possible (smaller than the cable diameter). The soft material in the cable front is intended to work as a seal against the cable, and if the hole is too big the unit will not be protected against humidity and dirt. -
Page 12: Circuit Card Overview
lin da b | in s ta l l at i on FireSystemPro Damper unit Caution! Before installation or maintenance, the power supply should first be disconnected. Installation or maintenance of this unit should only be carried out by qualified personnel. The manufacturer is not responsible for any eventual damage or injury caused by inadequate skills during installation, or through removal of, or deactivation of any security devices. -
Page 13: Circuit Card Connections
l i n d a b | in s t a ll at i o n FireSystemPro Damper unit Circuit card connections Note: At delivery, the unit is equipped with a 2.2 kΩ resistor mounted between terminals DO1 and AI1 and a 1 kΩ resistor between G0 and AI4. -
Page 14: Connect Fire Damper To Damper Unit
lin da b | in s ta l l at i on FireSystemPro Damper unit Connect fire damper to damper unit One fire damper per Pro-S is allowed. The damper is controlled by either an actuator with spring return, a 3-point actuator or a 0-10 V VAV actuator. -
Page 15: Connect Damper Unit To Power
l i n d a b | in s t a ll at i o n FireSystemPro Damper unit Connect damper unit to power The damper unit is connected to 24 V AC power supply in terminals G and G0, see wiring diagram 4. Connect damper unit to master unit The damper unit is connected to the master with a RS485 communication cable, see wiring diagram 4. -
Page 16: Pro-Pdt Pressure Transmitter
Pro-PDT pressure transmitter PRO-PDT is a pressure transmitter used for the Fire System Pro. It is equipped with one pressure sensor, two universal inputs, two universal outputs and an RS485 port for Modbus communication. PRO-PDT is especially well suited as distributed I/O module for air handling unit controllers. -
Page 17: Pro-R Signal Repeater
Pro-R signal repeater Pro-R is a signal repeater used in the Fire System Pro, provided with its own 230V stabilized power supply. It is used to enhance the RS-485 signal quality and is required if more than 30 damper units (Pro-S) are connected to the system or if the communication cable is longer than 300 meter. -
Page 18: Pro-Sdd Smoke Duct Detector
lin da b | in s ta l l at i on FireSystemPro Smoke detector Pro-SDD smoke duct detector Pro-SDD is an optical smoke detector for duct mounting in all types of premises and reacts to visible smoke particles. It con- sists of a detector head and a base, that comes with a bayonet mount to simplify service and maintenance. -
Page 19: Pro-Scd Smoke Ceiling Detector
l i n d a b | in s t a ll at i o n FireSystemPro Smoke detector Pro-SCD smoke ceiling detector Pro-SCD is an optical smoke detector for duct mounting in all types of premises and reacts to visible smoke particles. It con- sists of a detector head and a base, that comes with a bayonet mount to simplify service and maintenance. -
Page 20: Pro-Dts
lin da b | in s ta l l at i on FireSystemPro Temperature sensor Pro-DTS Pro-DTS duct sensor measures the air temperature in ventilation and air handling installations. It can be used for a wide range of applications and is suitable for all environments. Since the mounting bracket is made of a flexible material it closes tightly against the duct. -
Page 21: Pro-Dt
Thermostat Pro-DT Pro-DT is an electro-mechanical thermostat, constructed for duct mounting and is a recommended choice for the Lindab System Pro. The capillary tube is a liquid-filled copper bulb with a 200 mm protection spring area and a mounting bracket. - Page 22 We at Lindab have therefore made it our most important objective to contribute to an indoor climate that improves people’s lives. We do this by developing energy-efficient ventilation solutions and durable building products.
