Lindab FBC1 Technical Manual

Hide thumbs Also See for FBC1:
Table of Contents

Advertisement

Quick Links

Download this manual
l i n d a b | w e s i m p l i f y c o n s t r u c t i o n

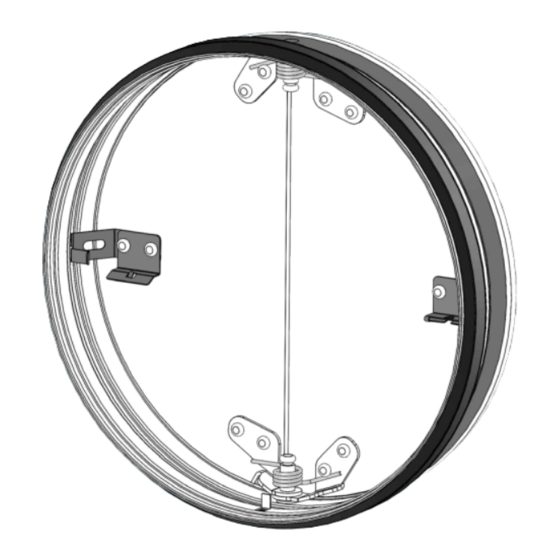

FBC
1 - 4 - 7
Technical Manual
English
FIRE DAMPER
FBC1 60 min-FBC4-90 min-FBC7-120 min
TEST PREASSURE: 300 Pa
FBC
Cert. N° 1812-CPR-1630, 1812-CPR-1632, 1812-CPR-1634
1 - 4 - 7
Installation type with fire resistance class
Technical Manual
Installation type with fire resistance class
English
FIRE DAMPER
CIRCULAR SERIES FBC1 - 4 - 7 - 300 Pa
Cert. N° 1812-CPR-1630 - 1812-CPR-1632 - 1812-CPR-1634

Advertisement

Table of Contents
loading

Related Manuals for Lindab FBC1

Summary of Contents for Lindab FBC1

  • Page 1 Cert. N° 1812-CPR-1630, 1812-CPR-1632, 1812-CPR-1634 1 - 4 - 7 Installation type with fire resistance class Technical Manual Installation type with fire resistance class English FIRE DAMPER CIRCULAR SERIES FBC1 - 4 - 7 - 300 Pa Cert. N° 1812-CPR-1630 - 1812-CPR-1632 - 1812-CPR-1634...
  • Page 2 This is a 78 page manual. Respect the environment, do not print this manual if not necessary.

  • Page 3: Table Of Contents

    TABlE oF ConTEnTS 1 - 4 - 7 1 - 4 - 7 Overview .......... p. 4 1.1.

  • Page 4: Overview

    Test EN 1366-2 Classification EN 13501-3 Thermal fuse reliability ISO 10294-4 1.4. Certifications and approvals FBC1: n° 1812-CPR-1630 CE Certificate of Constancy of Performance FBC4: n° 1812-CPR-1632 Efectis FBC7: n° 1812-CPR-1634 1.5. Components Casing made from galvanized carbon steel. Cold smoke air seal gasket Air duct connection gasket.

  • Page 5: Fire Resistance Classification According To En 13501-3-2009

    Fire resistance classification according to EN 13501-3-2009 min. thickness 100mm VERTICAL RIGID WALL min. density 550Kg/m3 AXIS FIRE DIRECTION PRESSURE 300Pa (i ↔ o) IRRELEVANT FBC1 FBC4 FBC7 TYPE OF INSTALLATION TYPE OF HOLE SEALING AND DESCRIPTION (120 min) PAG (60 min) (90 min)
  • Page 6 1 - 4 - 7 VERTICAL PLASTER BLOCKS WALL (CARREAUX PLATRE) min. thickness 100mm AXIS FIRE DIRECTION PRESSURE 300Pa (i ↔ o) IRRELEVANT FBC1 FBC4 FBC7 TYPE OF INSTALLATION TYPE OF HOLE SEALING AND DESCRIPTION (120 min) PAG (60 min)
  • Page 7 FIRE BATT (WEICHSCHOTT) EI 60 S EI 90 S EI 120 S  p. 65 TRANSFER min. 600 X 600 WET METHOD SEALING Cert. N° FBC1 1812-CPR-1630,FBC4 1812-CPR-1632,FBC7 1812-CPR-1634 We reserve the right to make changes without prior notice 7/78 rev 24-01...

  • Page 8: Mechanism Type

    ovER vIEw 1 - 4 - 7 1 - 4 - 7 1.9. Mechanism type 1.9.1. Manual Blade closing mode Automatic closing with thermal fuse. The control mechanism has a thermosensitive element that automatically closes the blade when the temperature in the duct exceeds 70°C.
  • Page 9 ovER vIEw 1 - 4 - 7 1 - 4 - 7 1.9.2. Closing by remote control not available 1.9.3. Motorized version not available We reserve the right to make changes without prior notice 9/78 rev 24-01...

  • Page 10: Technical Data

    TECHnICAl DATA 1 - 4 - 7 1 - 4 - 7 TECHnICAl DATA The sizes shown are in mm. 2.1. Dimension Ø S blade exposition 2.2. Weights Ø Weight We reserve the right to make changes without prior notice 10/78 rev 24-01...

  • Page 11: Installation

    InSTAllATIon 1 - 4 - 7 1 - 4 - 7 InSTAllATIon 3.4. Installation of flexible connectors in The sizes shown are in mm. It is recommended to perform a functional test before In- order to balance out the ventilation stallation to exclude possible damage during transport.

  • Page 12: Minimum Distances

    InSTAllATIon 1 - 4 - 7 1 - 4 - 7 3.5. Minimum distances In accordance with Articles 7 and 13 of En 1366-2 respect the minimum distances indicated below. Minimum distances Vertical lateral wall Floor We reserve the right to make changes without prior notice 12/78 rev 24-01...

  • Page 13: Construction Supports Characteristics

    InSTAllATIon 1 - 4 - 7 1 - 4 - 7 3.6. Construction supports characteristics • vertical profile fixing with selfthreading screws or by The European standard for fire dampers foresees a precise correlation between the wall/floor characteristics and the clinching to the bottom horizontal profile and insertion fire resistance class obtained, as well as the correlation be- in the top horizontal profile;...
  • Page 14 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plasterboard thickness 12,5 mm Rock wool density up to 40 kg/m³ (optional) Reinforcement sheet Horizontal U-shaped profile Vertical C-shaped profile Self-drilling screw Ø 3,5 X 25 mm Self-drilling screw Ø 3,5 X 35 mm 3.6.4.

  • Page 15: Installations Within Vertical Rigid Wall

    InSTAllATIon 1 - 4 - 7 1 - 4 - 7 3.7. Installations within vertical rigid wall See section Construction supports characteristics for more details, observe the minimum distances indicated in section Minimum distances , carry out a functional test before and after installation. See section for more details. 3.7.1.
  • Page 16 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, ducted on one side, square hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct Terminal valve Vertical rigid wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Rigid wall, transfer, square hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct...
  • Page 17 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, ducted on both sides, square hole, rock wool with mortar or plaster putty Rock wool, 40 kg/m³ Ventilation duct Mortar or plaster grouting Vertical rigid wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Rigid wall, ducted on one side, square hole, rock wool with mortar or plaster putty Rock wool, 40 kg/m³...
  • Page 18 + 50 to nominal diameter max + 70 Fire damper Rigid wall, ducted both sides, square hole, rock wool plasterboard - EI60-S - FBC1 Rock wool 40 kg/m³ Plasterboard arch infill type A, thickness 12,5 mm or promatect 100...
  • Page 19 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, ducted both sides, square hole, rock wool plasterboard - EI90-S - FBC4- EI120-S - FBC7 Rock wool 40 kg/m³ Plasterboards arch infill type F, thickness 12,5 mm or promatect Fire damper 100 thickness 12 mm Ventilation duct...
  • Page 20 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, transfer, square hole, rock wool plasterboard Rock wool 40 kg/m³ Plasterboard arch infill, thickness 12,5 mm or promatect 100 Terminal valve thickness 12 mm Fire damper Self-drilling screw Ø 3,5 X 45 mm Ventilation duct from nominal diameter min + 50 to nominal diameter max + 70 Rigid vertical wall...
  • Page 21 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, channelled one side, circular hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct Terminal valve Vertical rigid wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Rigid wall, transfer, circular hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct...
  • Page 22 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, channelled both sides, circular hole, rock wool with mortar or plaster filler Rock wool, 40 kg/m³ Ventilation duct Mortar or plaster grouting Vertical rigid wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Rigid wall, ducted one side, circular hole, rock wool with mortar or plaster putty Rock wool, 40 kg/m³...
  • Page 23 + 50 to nominal diameter max + 70 Fire damper Rigid wall, ducted both sides, circular hole, rock wool with plasterboard - EI60-S - FBC1 Rock wool, 40 kg/m³ Plasterboard arch infill type A, thickness 12,5 mm or promatect 100...
  • Page 24 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, ducted both sides, circular hole, rock wool with plasterboard - EI90-S - FBC4- EI120-S - FBC7 Rock wool, 40 kg/m³ Plasterboards arch infill type F, thickness 12,5 mm or promatect Fire damper 100 thickness 12 mm Ventilation duct...
  • Page 25 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Rigid wall, transfer, round hole, rock wool with plasterboard Rock wool, 40 kg/m³ Plasterboard arch infill, thickness 12,5 mm or promatect 100 Terminal valve thickness 12 mm Fire damper Self-drilling screw Ø...

  • Page 26: Installations Within Vertical Light Wall (Plasterboard)

    Rock wool density up to 40 kg/m³ (optional) Mortar or plaster putty Metal frame Fire damper plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Ventilation duct FBC7 (EN 520) from nominal diameter min + 50 to nominal diameter max + 70...
  • Page 27 Rock wool density up to 40 kg/m³ (optional) Terminal valve Metal frame Fire damper plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Ventilation duct FBC7 (EN 520) from nominal diameter min + 50 to nominal diameter max + 70...
  • Page 28 Rock wool density up to 40 kg/m³ (optional) Rock wool, 40 kg/m³ Metal frame Fire damper plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Ventilation duct FBC7 (EN 520) from nominal diameter min + 50 to nominal diameter max + 70...
  • Page 29 Mortar or plaster putty from nominal diameter min + 50 to nominal diameter max + 70 Light wall, ducted both sides, square hole, rock wool with plasterboard - EI60-S - FBC1 Rock wool density up to 40 kg/m³ (optional) Ventilation duct Metal frame Self-drilling screw Ø...
  • Page 30 Rock wool density up to 40 kg/m³ (optional) Ventilation duct Metal frame Self-drilling screw Ø 3,5 X 45 mm plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Plasterboards arch infill type F, thickness 12,5 mm or promatect FBC7 (EN 520) 100 thickness 12 mm Rock wool, 40 kg/m³...
  • Page 31 Rock wool density up to 40 kg/m³ (optional) Fire damper Metal frame Ventilation duct plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Plasterboard arch infill, thickness 12,5 mm or promatect 100 FBC7 (EN 520) thickness 12 mm Rock wool, 40 kg/m³...
  • Page 32 Rock wool density up to 40 kg/m³ (optional) Terminal valve Metal frame Fire damper plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Ventilation duct FBC7 (EN 520) from nominal diameter min + 50 to nominal diameter max + 70...
  • Page 33 Rock wool density up to 40 kg/m³ (optional) Rock wool, 40 kg/m³ Metal frame Fire damper plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Ventilation duct FBC7 (EN 520) from nominal diameter min + 50 to nominal diameter max + 70...
  • Page 34 Rock wool, 40 kg/m³ from nominal diameter min + 50 to nominal diameter max + 70 Light wall, ducted both sides, circular hole, rock wool with plasterboard - EI60-S - FBC1 Rock wool density up to 40 kg/m³ (optional) Ventilation duct...
  • Page 35 Rock wool density up to 40 kg/m³ (optional) Ventilation duct Metal frame Plasterboards arch infill type F, thickness 12,5 mm or promatect plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and 100 thickness 12 mm FBC7 (EN 520) Self-drilling screw Ø 3,5 X 45 mm Rock wool, 40 kg/m³...
  • Page 36 Rock wool density up to 40 kg/m³ (optional) Fire damper Metal frame Ventilation duct plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Plasterboard arch infill, thickness 12,5 mm or promatect 100 FBC7 (EN 520) thickness 12 mm Rock wool, 40 kg/m³...

  • Page 37: Vertical Gypsum Block Wall Installation (Carreaux De Platre)

    InSTAllATIon 1 - 4 - 7 1 - 4 - 7 3.9. Vertical gypsum block wall installation (carreaux de platre) See section Construction supports characteristics for more details, observe the minimum distances indicated in section Minimum distances , carry out a functional test before and after installation. See section for more details. 3.9.1.
  • Page 38 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plaster block wall, ducted one side, square hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct Terminal valve Vertical plaster block wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Plaster block wall, transfer, square hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct...
  • Page 39 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plaster block wall, ducted both sides, square hole, rock wool with mortar or plaster putty Rock wool, 40 kg/m³ Ventilation duct Mortar or plaster grouting Vertical plaster block wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Plaster block wall, ducted one side, square hole, rock wool with mortar or plaster putty...
  • Page 40 + 50 to nominal diameter max + 70 Fire damper Plaster block wall, ducted both sides, square hole, rock wool plasterboard - EI60-S - FBC1 Rock wool, 40 kg/m³ Plasterboard arch infill type A, thickness 12,5 mm or promatect 100...
  • Page 41 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plaster block wall, ducted both sides, square hole, rock wool plasterboard - EI90-S - FBC4- EI120-S - FBC7 Rock wool, 40 kg/m³ Plasterboards arch infill type F, thickness 12,5 mm or promatect Fire damper 100 thickness 12 mm Ventilation duct...
  • Page 42 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Wall plaster blocks, transfer, square hole, rock wool plasterboard Rock wool, 40 kg/m³ Plasterboard arch infill, thickness 12,5 mm or promatect 100 Terminal valve thickness 12 mm Fire damper Self-drilling screw Ø...
  • Page 43 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plaster block wall, ducted one side, circular hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct Terminal valve Vertical plaster block wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Wall plaster blocks, transfer, circular hole, mortar or plaster putty Mortar or plaster grouting Ventilation duct...
  • Page 44 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plaster block wall, ducted both sides, circular hole, rock wool with mortar or plaster putty Rock wool, 40 kg/m³ Ventilation duct Mortar or plaster grouting Vertical plaster block wall Fire damper from nominal diameter min + 50 to nominal diameter max + 70 Plaster block wall, ducted one side, circular hole, rock wool with mortar or plaster putty...
  • Page 45 + 50 to nominal diameter max + 70 Fire damper Plaster block wall, ducted both sides, circular hole, rock wool with plasterboard - EI60-S - FBC1 Rock wool, 40 kg/m³ Plasterboard arch infill type A, thickness 12,5 mm or promatect 100...
  • Page 46 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plaster block wall, ducted both sides, circular hole, rock wool plasterboard - EI90-S - FBC4- EI120-S - FBC7 Rock wool, 40 kg/m³ Plasterboards arch infill type F, thickness 12,5 mm or promatect Fire damper 100 thickness 12 mm Ventilation duct...
  • Page 47 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Plaster block wall, transfer, round hole, rock wool with plasterboard Rock wool, 40 kg/m³ Plasterboard arch infill, thickness 12,5 mm or promatect 100 Terminal valve thickness 12 mm Fire damper Self-drilling screw Ø...

  • Page 48: Lightweight Vertical Security Wall Installations (Plasterboard) - (Firewall / Brandwande)

    Rock wool density up to 40 kg/m³ (optional) Mortar or plaster putty Metal frame Fire damper plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Ventilation duct FBC7 (EN 520) from nominal diameter min + 50 to nominal diameter max + 70 Metal foil 0.5 mm thick...
  • Page 49 Lightweight safety wall, ducted one side, square hole, mortar or plaster putty Rock wool density up to 40 kg/m³ (optional) Mortar or plaster putty Metal frame Terminal valve plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Fire damper FBC7 (EN 520) Ventilation duct Metal foil 0.5 mm thick...
  • Page 50 Rock wool density up to 40 kg/m³ (optional) Mortar or plaster putty Metal frame Rock wool, 40 kg/m³ plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Fire damper FBC7 (EN 520) Ventilation duct Foil thickness 0.5 mm...
  • Page 51 + 50 to nominal diameter max + 70 Mortar or plaster putty Light safety wall, ducted both sides, square hole, rock wool with plasterboard - EI60-S - FBC1 Rock wool density up to 40 kg/m³ (optional)
  • Page 52 Rock wool density up to 40 kg/m³ (optional) Fire damper Metal frame Ventilation duct plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Plasterboards arch infill type F, thickness 12,5 mm or promatect FBC7 (EN 520) 100 thickness 12 mm Foil thickness 0.5 mm...
  • Page 53 Rock wool density up to 40 kg/m³ (optional) Fire damper Metal frame Ventilation duct plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Self-drilling screw Ø 3,5 X 45 mm FBC7 (EN 520) Plasterboard arch infill, thickness 12,5 mm or promatect 100 Foil thickness 0.5 mm...
  • Page 54 Light safety wall, ducted one side, circular hole, mortar or plaster putty Rock wool density up to 40 kg/m³ (optional) Mortar or plaster putty Metal frame Terminal valve plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Fire damper FBC7 (EN 520) Ventilation duct Metal foil 0.5 mm thick...
  • Page 55 Rock wool density up to 40 kg/m³ (optional) Rock wool, 40 kg/m³ Metal frame Mortar or plaster putty plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Fire damper FBC7 (EN 520) Ventilation duct Foil thickness 0.5 mm...
  • Page 56 + 50 to nominal diameter max + 70 Mortar or plaster putty Light safety wall, ducted both sides, circular hole, rock wool with plasterboard - EI60-S - FBC1 Rock wool density up to 40 kg/m³ (optional)
  • Page 57 Rock wool density up to 40 kg/m³ (optional) Fire damper Metal frame Ventilation duct plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Plasterboards arch infill type F, thickness 12,5 mm or promatect FBC7 (EN 520) 100 thickness 12 mm Foil thickness 0.5 mm...
  • Page 58 Rock wool density up to 40 kg/m³ (optional) Fire damper Metal frame Ventilation duct plasterboard, thickness 12,5 mm type A: FBC1; type F: FBC4 and Self-drilling screw Ø 3,5 X 45 mm FBC7 (EN 520) Plasterboard arch infill, thickness 12,5 mm or promatect 100 Foil thickness 0.5 mm...

  • Page 59: Installations Within Floor

    The floor must have a fire resistance class greater than or equal to that of the damper Floor, ducted both sides, square hole mortar or plaster filler Mortar or plaster putty = min 100 mm for FBC1 Floor = min 150 mm for FBC4, FBC7...
  • Page 60 Floor, channelled one side, square hole mortar or plaster filler Mortar or plaster putty From nominal diameter min + 0 to nominal diameter max + 70 Terminal valve = min 100 mm for FBC1 Floor = min 150 mm for FBC4, FBC7 Fire damper...
  • Page 61 1 - 4 - 7 1 - 4 - 7 floor, ducted both sides, circular hole mortar or plaster filler Mortar or plaster putty = min 100 mm for FBC1 Floor = min 150 mm for FBC4, FBC7 Fire damper...
  • Page 62 InSTAllATIon 1 - 4 - 7 1 - 4 - 7 Floor, transfer, circular hole mortar or plaster putty Mortar or plaster putty Ventilation duct Terminal valve From nominal diameter min + 0 to nominal diameter max + 70 Floor = min 275 mm Fire damper = 137,50 mm...

  • Page 63: Installations Within Vertical Wall With Fire Batt (Weichschott) Sealing

    PROMASTOP E PASTE or HILTI CFS-S ACR type sealant Vertical rigid wall density ≥550 kg/m³ or vertical light wall PROMASTOP E PASTE or HILTI CFS-CT endothermic varnish (plasterboard) type A (FBC1) ; type F: FBC4 and FBC7 (EN 520) Ventilation duct nominal diameter + 600 max...
  • Page 64 PROMASTOP E PASTE or HILTI CFS-S ACR type sealant Vertical rigid wall density ≥550 kg/m³ or vertical light wall PROMASTOP E PASTE or HILTI CFS-CT endothermic varnish (plasterboard) type A (FBC1) ; type F: FBC4 and FBC7 (EN 520) Terminal valve nominal diameter + 600 max...

  • Page 65: Installation Within Floor With Fire Batt (Weichschott) Sealing

    Rock wool panel 50 mm thick with 140 kg/m³ density. Nominal diameter + 600 max PROMASTOP E PASTE or HILTI CFS-S ACR type sealant = min 100 mm for FBC1 PROMASTOP E PASTE or HILTI CFS-CT endothermic varnish = min 150 mm for FBC4, FBC7...
  • Page 66 Ventilation duct PROMASTOP E PASTE or HILTI CFS-S ACR type sealant Nominal diameter + 600 max PROMASTOP E PASTE or HILTI CFS-CT endothermic varnish = min 100 mm for FBC1 Terminal valve = min 150 mm for FBC4, FBC7 Floor...

  • Page 67: Electrical Connections

    ElEC TRICAl ConnEC TIonS 1 - 4 - 7 1 - 4 - 7 ElEC TRICAl ConnEC TIonS 4.1. Electrical wiring Electrical connections must be done by qualified and trained people. Switch off the power supply before starting any work on the electric elements. never switch on the power supply during electrical connections.

  • Page 68: Maintenance And Inspections

    MAInTEnAnCE AnD InSPEC TIonS 1 - 4 - 7 1 - 4 - 7 MAInTEnAnCE AnD InSPEC TIonS Fire dampers and control mechanisms do not require rou- tine maintenance. Extraordinary maintenance (repairs) and periodic inspec- tion operations are the responsibility of the ventilation sys- tem operator.

  • Page 69: Selection

    SElEC TIon 1 - 4 - 7 1 - 4 - 7 SElEC TIon 6.1. Air flow rates in relation to the diameter Ø Front section Net section Maximum air flow Maximum speed m² m² m³/h 0,008 0,002 0,012 0,004 0,020 0,010 0,031...

  • Page 70: Pressure Drop And Sound Level Graph

    SElEC TIon 1 - 4 - 7 1 - 4 - 7 6.4. Pressure drop and sound level graph Lw 30 dB(A) Lw 35 dB(A) Lw 40 dB(A) Ø ΔP ΔP ΔP m³/h m³/h m³/h 14,1 20,5 30,3 10,2 16,0 24,9 14,0 20,8...

  • Page 71: Sound Spectrum Table

    SElEC TIon 1 - 4 - 7 1 - 4 - 7 6.5. Sound spectrum table Correction used to estimate the octave band spectrum (values to be added to the noise levels in dB(A)) Ø100 Speed (m/s) -0,8 -4,8 -8,1 -10,7 -9,7 -13,7...

  • Page 72: Accessories And Spare Parts

    ACCESSoRIES AnD SPARE PAR TS 1 - 4 - 7 1 - 4 - 7 ACCESSoRIES AnD SPARE PAR TS Arch infill panels for installation from Ø 100 to Ø 200 (plasterboard thickness12.5 mm or promatect 100 TAMP-WH25-Ø thickness 12mm) closed blade microswitch (num.1) FBCFC Thermofuse with 70 °C setting for FBC...

  • Page 73: How To Order

    Fire damper EI 120 S without valve and without microswitch Ø 200 FBC7-N-S0-200 Fire damper EI 60 S without valve and without microswitch Ø 100 FBC1-N-S0-100 Fire damper EI 90 S without valve and without microswitch, Ø 125 FBC4-N-S0-125 We reserve the right to make changes without prior notice...

  • Page 74: Specification Text

    Circular fire damper series FBC Butterfly Description Accessories • FBC1, FBC4, FBC7 circular fire damper tested for fire re- • Microswitch with three no/nC position detecting con- sistance and smoke seal with 300 Pa depression as per nectors for open and closed damper En 1366-2, classified according to En 13501-3 and CE •...

  • Page 75: Revision Index

    REvISIon InDEx 1 - 4 - 7 1 - 4 - 7 REvISIon InDEx Revision n° Date of issue Description 19/11 2019/11 First issue 20/02 2020/02 Ø180 remove Updated section: • Installation • Not allowed uses 20/10 2020/10 • Periodic inspection and cleaning Updated table: •...
  • Page 77 - Fire dampers are manufactured by MP3 Srl www.mp3-italia.it manufacturer constantly improving products, aesthetic dimension- al features, the technical data, the equipment and accessories indicated could be subject to variations. Respect the environment, do not print this manual if not necessary.
