System Q CAM526UW Quick Start Manual

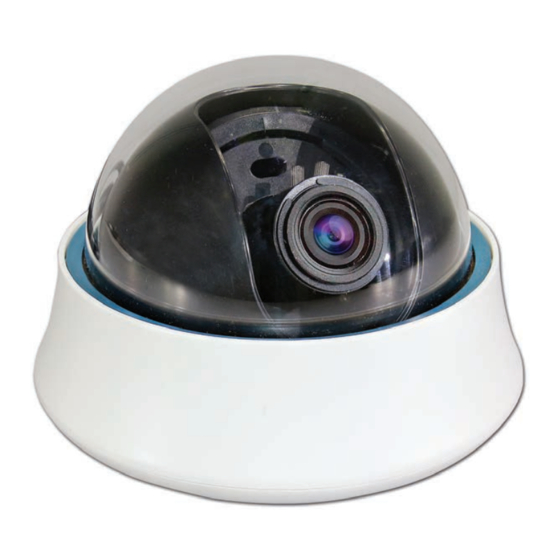

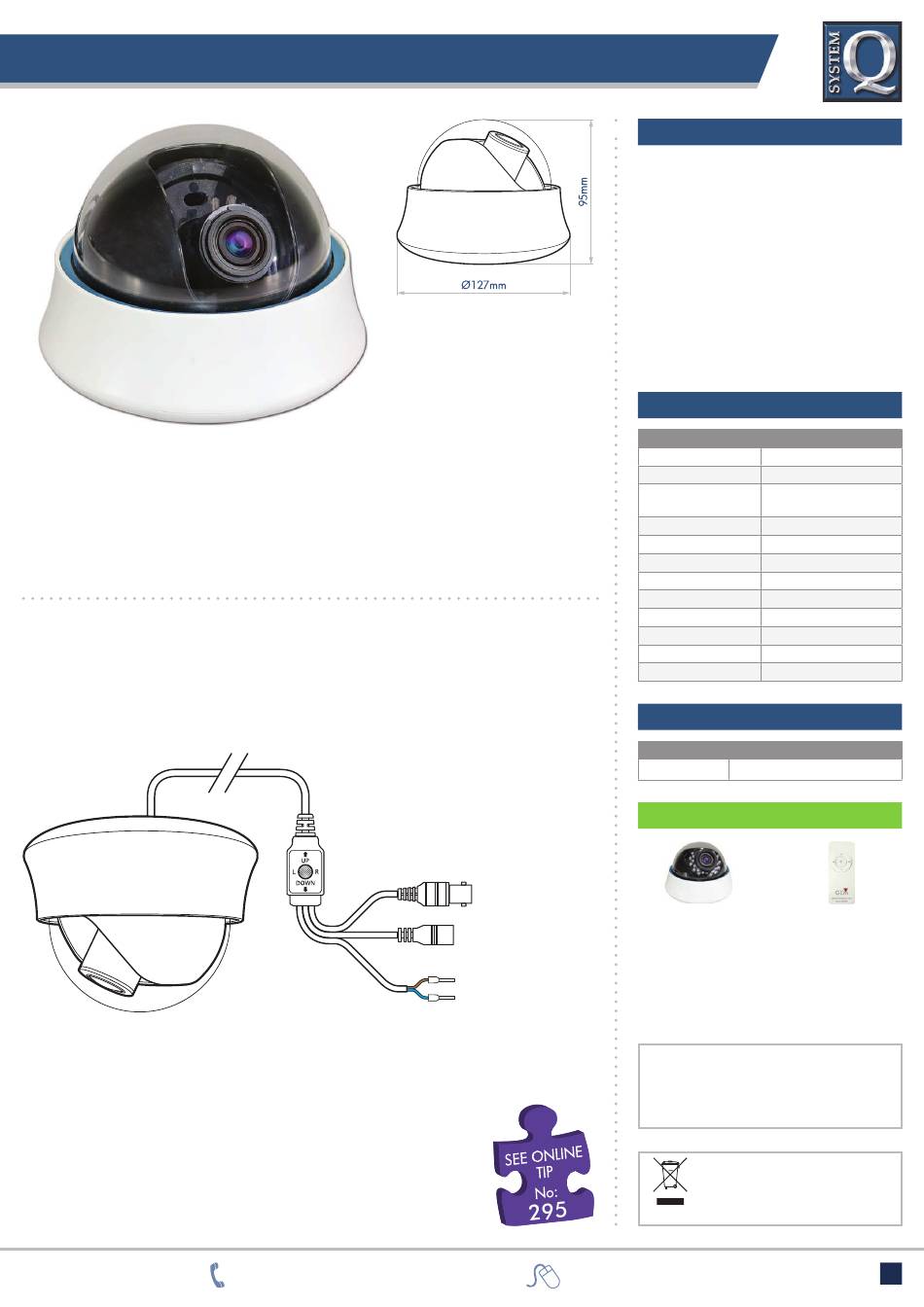

CAM526UW - Internal Vari-focal Dome Camera With UTC & WDR
Internal Vari-Focal Dome Real WDR & UTC
Internal colour dome fi tted with a 2.8-12mm 2 mega pixel lens, a high resolution of
720TVL and a Lux level of 0.001. The CAM526UW features 'Real' wide dynamic
range, an on screen display which can be controlled down the co-ax or via RS485
and digital noise reduction. Ideal for shops and stock rooms.

Connecting The Camera

The CAM526UW comes with moulded connections for video, power and RS485 data.
There is a BNC socket for connecting the video, a 2.1mm DC socket for connecting
the power and 2 small wires for an RS485 connection. Note - the RS485 wires are
polarity sensitive and must be connected as shown below.
For more information on menu options and
what they do see online tip 295

01246 200 000
•
•
•
•
•
•
•
•
•
BNC Socket
2.1mm DC Socket
RS485 + (Brown)
RS485 - (Blue)
systemq.com

Features

2.8 - 12mm Vari-Focal Dome
2 Megapixel Lens
720 TVL
0.001 Lux
Up the Co-ax OSD control
RS485 OSD control
Real Wide Dynamic Range
12V DC
Digital Noise Reduction
Specifi cation
FUNCTION

SPECIFICATION

CCD 1/3" Sony Super HAD II
Resolution 720TVL
2.8 - 12mm Vari-Focal
Lens
(2M Pixel)
Min. Illumination 0.001 Lux
Video Output 1v p ~ p, 75Ω
Video Connection BNC
Power/Current 12V DC (± 10%) 90mA
Power Connection 2.1mm Socket
S/N Ratio More than 52dB
Gain Control Automatic
Operating Temp. -10°C ~ +50°C
Dimensions Ø127mm x 95mm(H)
Options Available
PART CODE DESCRIPTION
CAM526UW Internal 720TVL Dome
Other Products To Consider
Internal 2.8-12mm Up The Co-ax In-line
Vari-focal 700TVL IR Controller
Dome Camera With
WDR & UTC
CAM535UW
All specifi cations are approximate. System Q Ltd reserves the right
to change any product specifi cations or features without notice.
Whilst every effort is made to ensure that these instructions are
complete and accurate, System Q Ltd cannot be held responsible
in any way for any losses, no matter how they arise, from errors
or omissions in these instructions, or the performance or non-
performance of the equipment that these instructions refer to.
This symbol on the products and/or accompanying
documents means that used electronic equipment
must not be mixed with general household waste.
For treatment, recovery and recycling please return
this unit to your trade supplier or local designated
WEE/CG0783SS collection point as defi ned by your local council.
