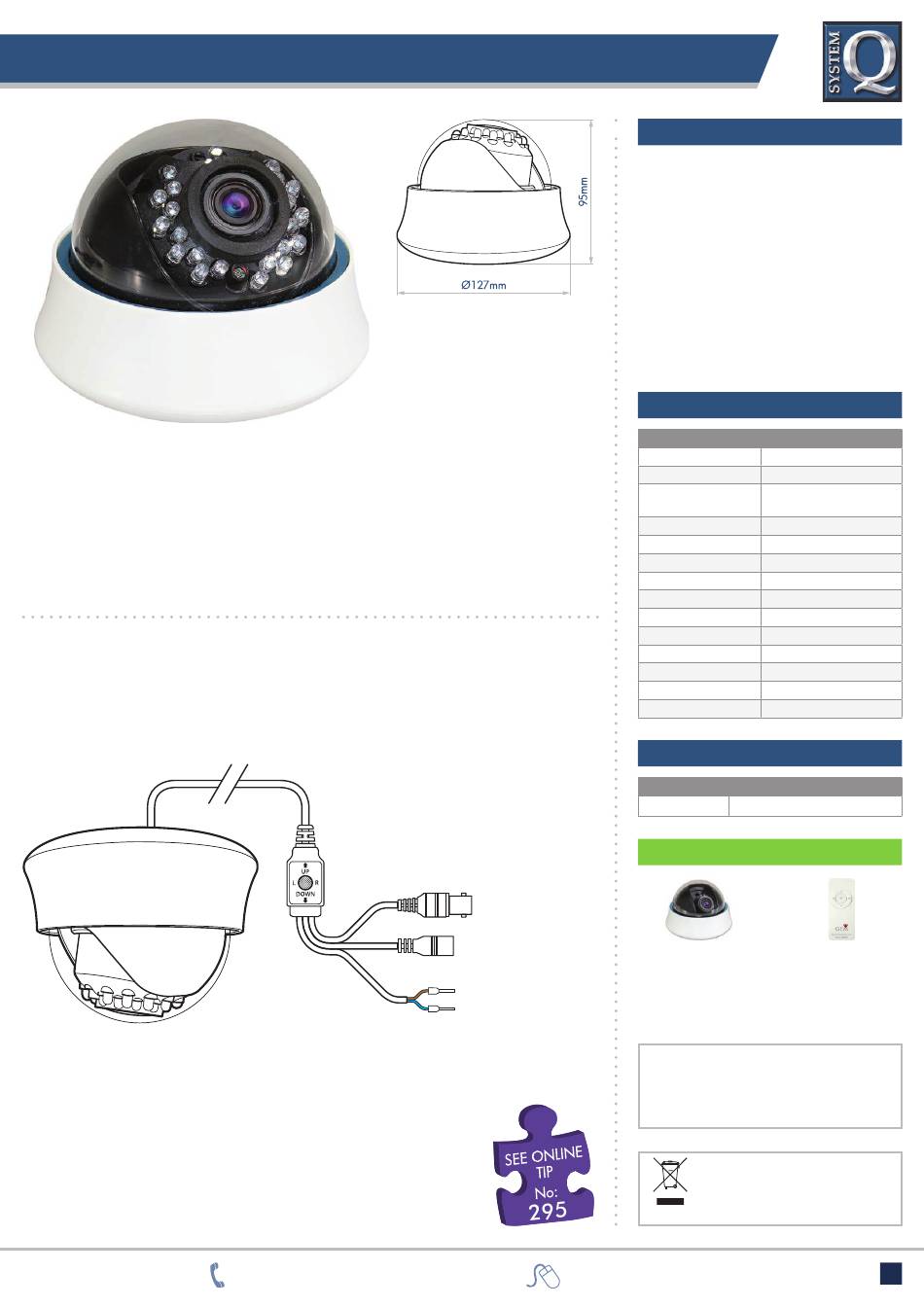

System Q CAM536UW Manual

CAM536UW - Vari-focal IR Dome Camera With UTC & Real WDR
Internal Vari-Focal IR Dome Real WDR, UTC & RS485
Internal dome camera fi tted with a 2.8-12mm 2 mega pixel lens captures high resolution
720TVL images in light levels as low as 0.001 Lux. The CAM536UW continues to
capture clear images at night thanks to its 21 IR LEDs giving a 20m IR range. This
impressive dome camera also features real wide dynamic range, up the co-ax telemetry,
on screen display and digital noise reduction. Ideal for shops and stock rooms.
Connecting The Camera
The CAM536UW comes with moulded connections for video, power and RS485
data. There is a BNC socket for connecting the video, a 2.1mm DC socket for
connecting the power and 2 small wires for an RS485 connection. Note - the RS485
wires are polarity sensitive and must be connected as shown below.
For more information on menu options and
what they do see online tip 295

01246 200 000
•
•
•
•
•
•
•
•
•
BNC Socket
2.1mm DC Socket
RS485 + (Brown)
RS485 - (Blue)
systemq.com
Features
2.8 - 12mm Vari-Focal Dome
2 Megapixel Lens
720 TVL
21 IR LEDs
20m IR Range
Up the Co-ax OSD control
RS485 OSD control
Real Wide Dynamic Range
12V DC
Specifi cation
FUNCTION SPECIFICATION
CCD 1/3" Sony Super HAD II
Resolution 720TVL
2.8 - 12mm Vari-Focal
Lens
(2M Pixel)
Min. Illumination 0.001 Lux
IR LEDs 21
IR Range 20m
Video Output 1v p ~ p, 75Ω
Video Connection BNC
Power/Current 12V DC (± 10%) 90mA
Power Connection 2.1mm Socket
S/N Ratio More than 52dB
Gain Control Automatic
Operating Temp. -10°C ~ +50°C
Dimensions Ø127mm x 95mm(H)
Options Available
PART CODE DESCRIPTION
CAM536UW
Internal 720TVL IR Dome
Other Products To Consider
Internal 2.8-12mm Up The Co-ax In-line
Vari-focal 720TVL Controller
Dome Camera With
WDR, UTC & RS485
CAM526UW
All specifi cations are approximate. System Q Ltd reserves the right
to change any product specifi cations or features without notice.
Whilst every effort is made to ensure that these instructions are
complete and accurate, System Q Ltd cannot be held responsible
in any way for any losses, no matter how they arise, from errors
or omissions in these instructions, or the performance or non-
performance of the equipment that these instructions refer to.
This symbol on the products and/or accompanying
documents means that used electronic equipment
must not be mixed with general household waste.
For treatment, recovery and recycling please return
this unit to your trade supplier or local designated
WEE/CG0783SS collection point as defi ned by your local council.
