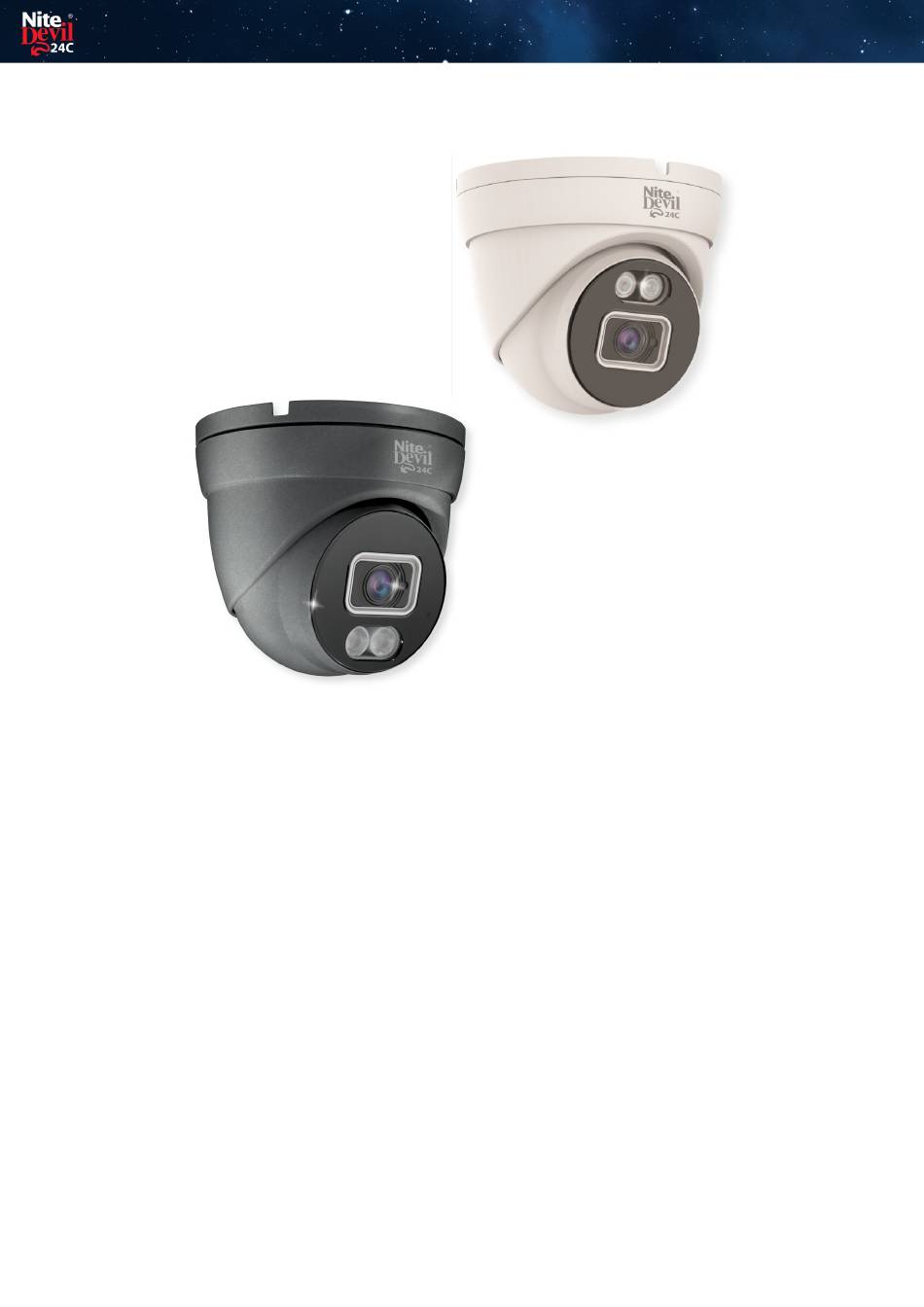

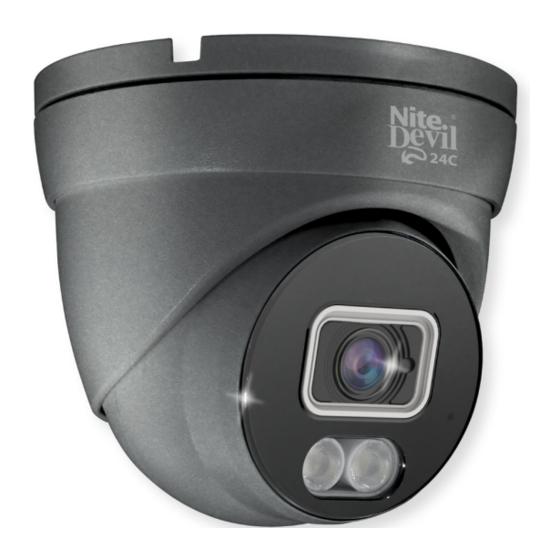

- Page 1 Instruction Manual NiteDevil 24C Camera IPCND705 Get Full Colour Images at Night !! © 2022 System Q Ltd NiteDevil.com...
-
Page 2: Table Of Contents
1 ZipNVR.com Website ....................25 2 Adding IP Cameras to a ZIP recorder ................25 3 ZIP Firmware ........................ 25 Part 12 General Maintenance Part 13 Specification 1 IPCND705 ........................27 Part 14 Conditions Index © 2022 System Q Ltd NiteDevil.com... -
Page 3: Part 1 Introduction
1.2 Essential Tools and ZipFinder To install this product you will need: · Laptop / Windows PC · Screwdriver · Drill · ZIP NVR or DVR · PoE Switch / 12V DC power supply · Ethernet CAT5/5e/6 Cable © 2022 System Q Ltd NiteDevil.com... - Page 4 IPCND705 ZipFinder - IP Camera Configuration Tool ZipFinder is a Windows PC software for discovering and configuring IP cameras a network. Use ZipFinder on non-PoE installs, to help problem solving issues such as forgotten or unknown IP Addresses. To download visit ZipNVR.com 23/03/2022 NiteDevil.com...
-
Page 5: Part 2 Connections
Option 2 - Power the camera using a PoE 48V RJ45 Socket When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. © 2022 System Q Ltd NiteDevil.com... -
Page 6: Part 3 Mounting
IPCND705 Mounting SD Card The SD Card can be found on the rear of the eyeball, a small gasket will need to be removed to install the SD card. For local recording on the camera itself an SD card must be installed. Recording time will vary dependent upon: SD card size and encoding settings 32GB SD Card 31 hours 64GB SD Card 62 hours... -
Page 7: Part 5 Setup Options
The 100m distance for a camera can be increased when the PoE Mode is set to EPoE. In the menu on a ZIP PoE NVR go to:- Video > IP Channels > PoE Mode © 2022 System Q Ltd NiteDevil.com... -
Page 8: Non-Poe Zip Nvr
IPCND705 5.2 Non-PoE ZIP NVR When connecting cameras to a Non-PoE NVR, they are first connected to an external network switch which is in-turn connected to the NVR as shown below. Extra Resources for more information on Adding IP Cameras manually to a ZIP Recorder. -
Page 9: Part 6 How To Login Via Browser
NOTE If the PC being used is on a different IP range to the PC then add the IP range of the camera to the PC using the below guide:- https://softcctv.com/helpdesk/kb/faq.php?id=571 1. Plug the camera's RJ45 port with a network cable into a PoE switch © 2022 System Q Ltd NiteDevil.com... - Page 10 IPCND705 2. Using ZipFinder on a Windows Based PC/ Laptop Search and then tick the camera 3. Select Net Mode = DCHP, then click Modify 4. Search again, to get the updated IP address. 5. Select the IP address of the camera, Internet Explorer will pop-up, and ask to download and install the plug-in.
-
Page 11: Part 7 Browser Menu Settings
Predefined / User-Defined Bitrate 256 to 8192 I Frame Interval 1 to 100 Audio Enable / Disable Save / Refresh Substream Resolution 1280 x 720 / 640 x 480 / 320 x 240 1 -25 © 2022 System Q Ltd NiteDevil.com... - Page 12 IPCND705 Video Code Type H.265 / H.264 / H.264+ / H.265+ / MJPEG Video Code Level Main Profile / Baseline / High Profile Bitrate Control CBR / VBR Bitrate Mode Predefined / User-Defined Bitrate 128 to 4096 I Frame Interval 1 to 40 Audio Enable / Disable...
- Page 13 User definable Rule Number Rule Enable Enable / Disable Rule Type / B A Save / Refresh / Reset Count Enable Enable / Disable Rule Number Rule Enable Enable / Disable Enable Enable / Disable © 2022 System Q Ltd NiteDevil.com...
- Page 14 IPCND705 Sensitivity 1 to 4 Dynamic Marking Enable / Disable Min Pixel 32 – 1080 Max Pixel 640 – 1080 Max Detection 1 - 500 Number Detection Range Full Screen / Customize Rule Number Save / Refresh Enable Enable / Disable Sensitivity 1 to 4 Dynamic Marking...
- Page 15 Enable / Disable Save / Refresh RTSP RTSP Enable Anonymous Login Enable / Disable Instruction: rtsp://IP:RtspPort/ch01/A A: 0(main stream), 1(sub stream), 2(mobile stream) Save / Refresh DDNS DDNS Enable / Disable Server NO_IP / DYNDNS © 2022 System Q Ltd NiteDevil.com...
- Page 16 IPCND705 Hostname User-definable Username User-definable Password User-definable IP Filter Enable Enable / Disable Type Enable Allow List / Enable Block List Restricted Type Allow list/ Block List Save / Delete / Refresh Storage Disk Select Disk Overwrite OFF / Auto Save / Format Hard Disk / Refresh Audio Enable Audio Enable / Disable...
- Page 17 Mon / Tues / Wed / Thur / Fri / Sat / Time Save / Refresh / Reboot Information Device ID Device Name Device Type Hardware Version Software Version Web Version Mac Address P2P ID Refresh © 2022 System Q Ltd NiteDevil.com...
-
Page 18: Part 8 Customising The Day / Night Setting To Ir
IPCND705 Customising the Day / Night Setting to IR Once logged into the camera browser interface:- Go To Remote Settings > Video > Image Control > Image Settings e.g. Day / Night mode if want the camera to B&W & use the IR Suggested setting : IR Cut to Auto. -
Page 19: Part 9 Turn Off Deterrence Led
Turn off Deterrence LED Once logged into the camera browser interface:- To turn deterrence LED off also Go to Remote Settings > Event > Setup > Deterrence > Light > Select Off > Select SAVE © 2022 System Q Ltd NiteDevil.com... -
Page 20: Part 10 Ai Features
IPCND705 AI Features The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone) Only one smart detection feature can be enabled at any given time. See the NVR or DVR manual for information on configuring these features with a ZIP recorder. - Page 21 Min / Max Pixel - Set the trigger size, this can be set as a minimum width between 64 pixels to 1080 pixels. Customize the size depending on how far away the camera is away from the subject. Detection Type - Options are motion, pedestrian, vehicle or both pedestrian and vehicle. © 2022 System Q Ltd NiteDevil.com...
- Page 22 IPCND705 Detection Mode - How the detection will handle motion and stationary objects. Motion mode = Will only detect moving subjects. Static mode = Will detect moving subjects but also stationary pedestrians and vehicles are in the alarm area. Detection Range - Set the detection area for the image. Customize = Customise a defined detection area.
-
Page 23: Pid = Perimeter Intrusion Detection
4 = Highest sensitivity level, only a small amount of moment is needed to trigger. Dynamic Marking - Enable / Disable - Shows an overlay of the triggering area when triggered. Detection Type - Options are motion, pedestrian, vehicle or both pedestrian and vehicle. © 2022 System Q Ltd NiteDevil.com... - Page 24 IPCND705 Rule Number - Up to 4 areas can be set independently in the image area. Use this to enable / disable each of the 4 rules. Rule Enable - Tick to enable or disable the detection that rule for the rule number selected. Rule Type - The determines how the direction of moment over the perimeter is handled.
-
Page 25: Lcd = Line Crossing Detection
4 = Highest sensitivity level, only a small amount of moment is needed to trigger. Dynamic Marking - Enable / Disable - Shows an overlay of the triggering area when triggered. Detection Type - Options are motion, pedestrian, vehicle or both pedestrian and vehicle. © 2022 System Q Ltd NiteDevil.com... - Page 26 IPCND705 Rule Number - Up to 4 areas can be set independently in the image area. Use this to enable / disable each of the 4 rules. Rule Enable - Tick to enable or disable the detection that rule for the rule number selected. Rule Type - The determines how the direction of moment over the perimeter is handled.
-
Page 27: Part 11 Extra Resources
Firmware for the ZIP products are available online:- www.zipdvr.com/firmware.html Compare the firmware in the product against that available online. AI Face Recognition is available on these model NVRs:- ZIP108, ZIP116, ZIP208, ZIP308, ZIP216 and ZIP226. © 2022 System Q Ltd NiteDevil.com... -
Page 28: Part 12 General Maintenance
IPCND705 General Maintenance · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfibre cloth. · Routinely check the connections for power and data to ensure no water ingress and corrosion. ·... -
Page 29: Part 13 Specification
Auto / Manual Input Voltage 12V DC (400mA) / PoE 48V Consumption 5W Max Power Connection 12V – 2.1mm DC Socket / PoE – RJ45 IP Rating IP66 Build Metal Dimensions 100mm x (H) 90mm © 2022 System Q Ltd NiteDevil.com... -
Page 30: Part 14 Conditions
Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible in any way for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment that these instructions refer to. -
Page 31: Index
Line Crossing Detection Login via browser interface - M - Maintenance Mounting the camera - P - Pedestrian Detection Perimeter Intrusion Detection - S - Setup and Connection Options Specification - V - Vehicle Detection © 2022 System Q Ltd NiteDevil.com...
