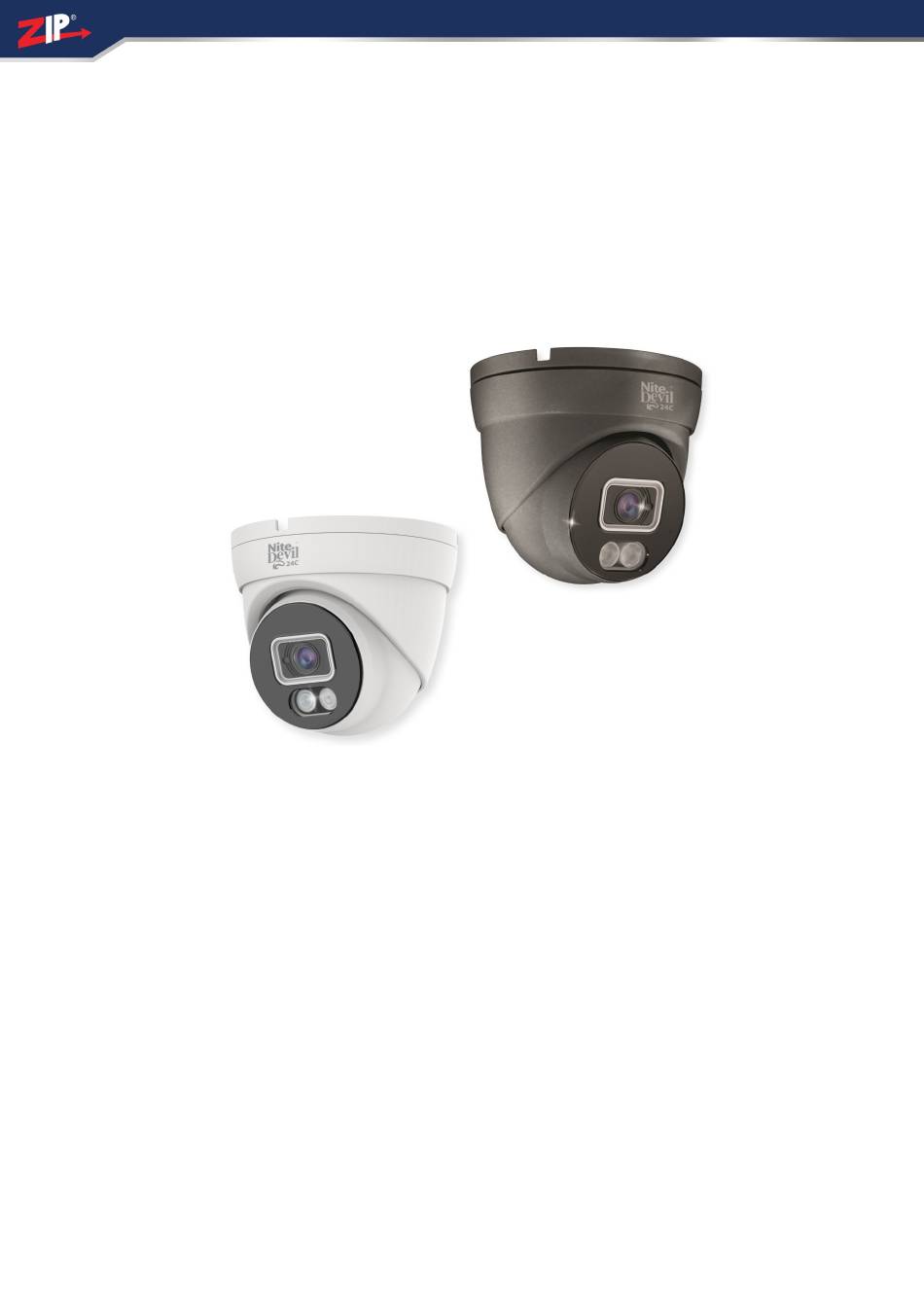

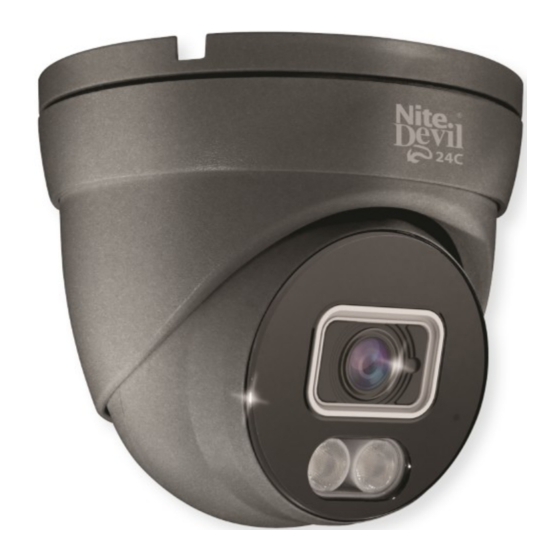

- Page 1 Instruction Manual SEE702 © 2023 System Q Ltd ZipNVR.com...
-
Page 2: Table Of Contents
4 NCD / No Image Displayed on Recorder ................. 8 Part 9 General Maintenance Part 10 Specification 1 SEE702 .......................... 10 Part 11 Conditions 1 General Company Disclaimer ..................11 2 WEEE Declaration ......................11 3 Copyright ........................11 Index © 2023 System Q Ltd ZipDVR.com... -
Page 3: Part 1 Introduction
Tools & Handy Extras · Screwdriver · Drill · 12V DC PSU · Drill bits · BNC Crimp Tool & BNCs · RG59 Coax Cable · Digital Multi-Meter · LCD400K - CCTV Test monitor © 2023 System Q Ltd ZipDVR.com... -
Page 4: Part 3 Connections
SEE702 Connections The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for video output, the output can be changed to AHD, CVI or CVBS if required in the menu OSD 4-In-1 Technology Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. -
Page 5: Part 5 Mounting
Index Mounting 5.1 NiteDevil Eyeball A template is provided in the box for marking the hole positions for the fixing screws. © 2023 System Q Ltd ZipDVR.com... -
Page 6: Part 6 Osd Menu
SEE702 OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. -
Page 7: 2Mp Osd Menu
1 -9 (5 Default) Sharpness 1 -9 (5 Default) Saturation 1 -9 (5 Default) 1 -9 (5 Default) Mirror Default / Mirror / Flip / Rotate Back Exit Save – Exit Reset Exit Save – Exit © 2023 System Q Ltd ZipDVR.com... -
Page 8: Key Menu Settings
SEE702 6.2 Key Menu Settings Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current light level. The shutter speed will automatically detect the required length of time to keep the digital sensor exposed to light. FLK option sets the shutter speed to stop synchronisation with lighting so that pulsing effect is minimised. -
Page 9: Part 7 Audio Over Coax
*Note the V1 SUPA & XTRA recorders are not compatible with Audio over COAX. To enable, in the menu on the SUPA-S go to System > General > Audio Input Type Select Coaxial Audio Select Apply © 2023 System Q Ltd ZipDVR.com... -
Page 10: Part 8 Troubleshooting
SEE702 Troubleshooting 8.1 Camera Rebooting / Turning Off A. Check the voltage to the camera (under load) using a digital multi-meter, if below 10.8V then move the power supply closer to the camera. B. For 12V DC cameras, only use regulated power supply rated above the current consumption, so that the camera is always receiving the correct supply which is rated above the current consumption. -
Page 11: Part 9 General Maintenance
Routinely check the connections for power and data to ensure no water ingress and corrosion. · Check that the cameras are firmly attached to the wall or mounting bracket. · Check playback in the recorder to ensure the camera is recording and triggering properly. © 2023 System Q Ltd ZipDVR.com... -
Page 12: Part 10 Specification
SEE702 Specification 10.1 SEE702 Resolution Lens Type 2.8mm Fixed Lens Image Output 1 Volt Peak-Peak 75 ohm Min.Illumination 0 Lux IR On Day/Night 24C / Mechanical IR (True Day-Night) LEDs 2 White LEDs / 2 IR LEDs IR Range Audio Built In Mic (Audio over COAX) Input Voltage 12V DC... -
Page 13: Part 11 Conditions
Conditions 11.1 General Company Disclaimer All specifications are approximate. System Q Ltd reserves the right to change any product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be... -
Page 15: Index
- D - Declaration Dimensions Disclamer - G - General Disclaimer - H - Handy Extras - M - Maintenance Mounting - O - OSD Menu - S - Settings Specification - T - Tools Troubleshooting © 2023 System Q Ltd ZipDVR.com...
